Keithley 2450 User Manual

Model 2450
Interactive SourceMeter® Instrument Reference Manual Section 3:
Functions and features
2450-901-01 Rev. B/September 2013 3-21
Using the front panel to save or append buffer content to files:
1. Insert a USB drive into the USB port.
2. Press the MENU key.
3. Under Measure, select Data Buffers. The MANAGE MEASURE BUFFERS window is displayed.

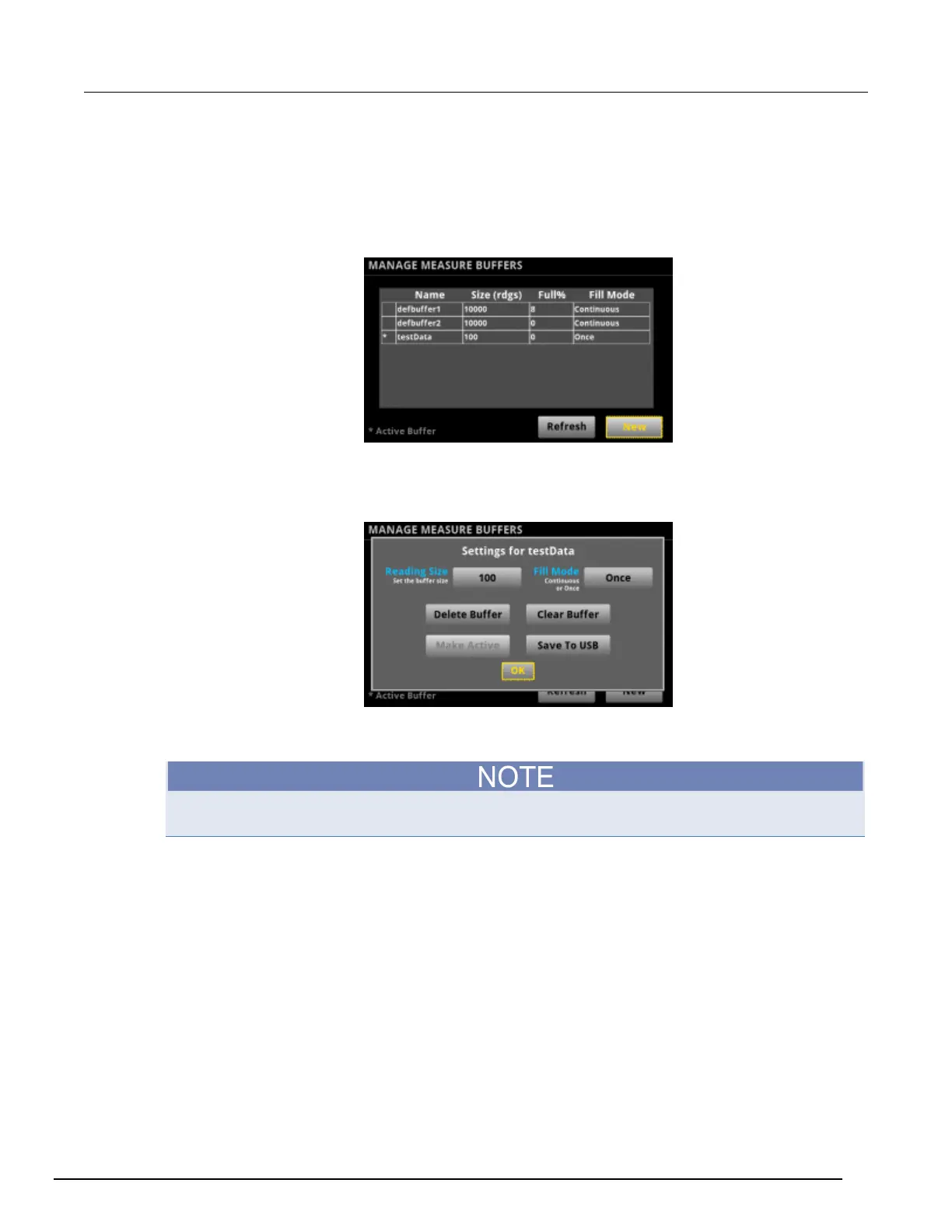

Figure 72: MANAGE MEASURE BUFFERS window
4. Select the reading buffer that you want to save. For example, select testData. The Settings for
testData menu is displayed.
Figure 73: MANAGE MEASURE BUFFERS
5. Select the Save To USB button. A keypad is displayed.
6. Enter the name of the file in which to save the readings.
You only have to enter the name of the file you want to save. It is not necessary to enter the file
extension. All files are saved as .csv files.
7. Select Yes to confirm saving the file. When the MANAGE MEASURE BUFFERS window is
displayed again, the file is saved.
8. Press the HOME key to return to the HOME screen.

Keithley 2450 Specifications

General

Model	2450
Category	SourceMeter
Voltage Source Range	±200 V
Current Source Range	±1 A
DC Voltage	200 V
DC Current	1 A
Power Output	20 W
Resolution	6.5 digits
Display	5-inch capacitive touchscreen
Operating Temperature	0°C to 50°C
Connectivity	USB, LAN, GPIB
Dimensions	213 mm × 88 mm × 370 mm
