TOS93 Series User’s Manual 115
Partial Discharge Test | Set test conditions
Reference upper limit of discharge count (Upper Pulse Count)
Set the reference pulse count for upper limit judgment. If a discharge count that is greater than or equal to
the value specified by Upper Pulse Count is measured, upper limit (Upper-FAIL) judgment results. To
disable upper limit judgment, set Upper Pulse Count to off.
Electric charges to be counted as discharge can be set by Puls
e Count Threshold (p.116).
1

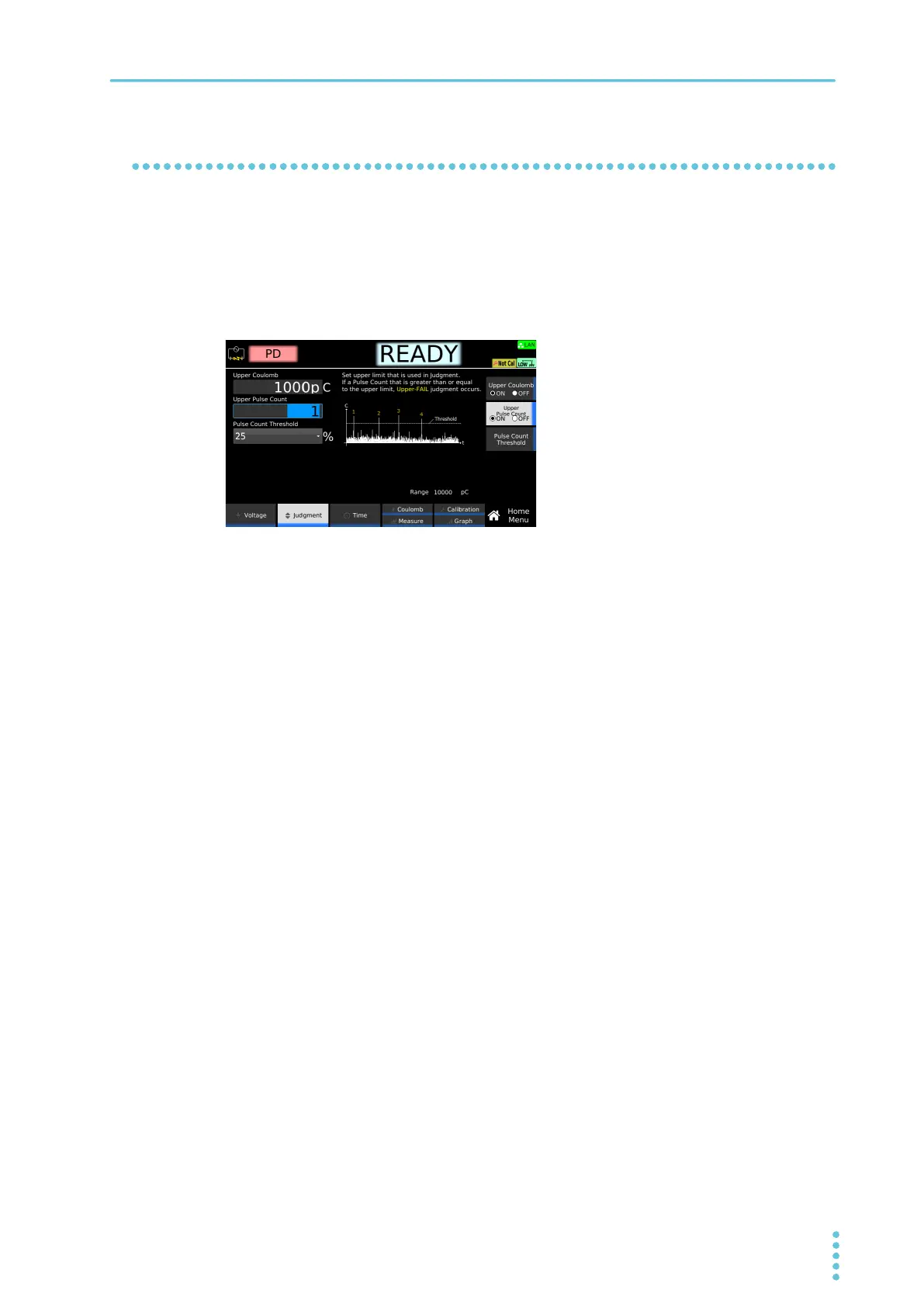

On the HOME Menu screen, press Judgment > Upper Pulse Count.
2
Press Upper Pulse Count to switch between ON and OFF.
Upper Pulse Count switches between ON and OFF each time you press the key.
3
If you select ON, use the numeric keypad or the rotary knob to enter pulse count.
Setting range: 1 to 100 000
This completes the setting.
