Kikusui TOS9301 - ACW Test (FAIL Judgment)

324 User’s Manual TOS93 Series
Appendix | Timing Charts

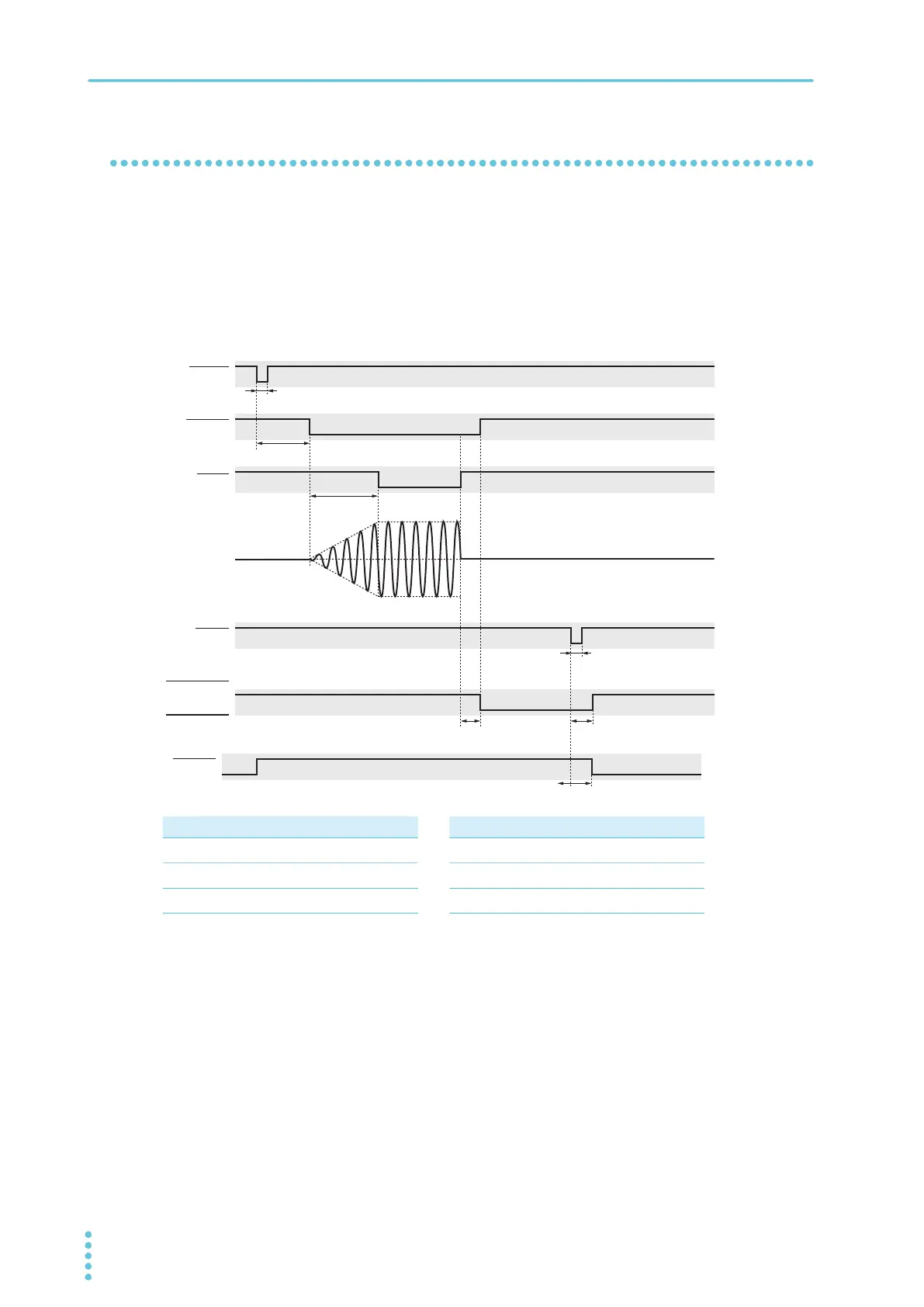

ACW test (FAIL judgment)
 Setting conditions
Model: TOS9301
Rise Time: ON
Test Time: OFF
Pass Hold: 50 ms
No load (waveform monitoring with a high voltage probe), start the test with the SIGN
AL I/O.
No. Description No. Description
(1) 5 ms min. (4)
Approx. 5 ms
*1
(2)
Approx. 20 ms
1
1 TYP (typical value)
(5)
Approx. 5 ms
*1
(3) Rise Time (6)
Approx. 6 ms
*1
START
H.V ON
TEST
(1)
(3)
(4)
Output
voltage
Lower-FAIL
Upper-FAIL
READY
(2)
(5)
(6)
STOP
or
(1)
