TOS93 Series User’s Manual 167
Protective Conductor Current Test | Setting Test Conditions
Measurement range
Set the measurement range.
Measurement range when Fix is selected
1

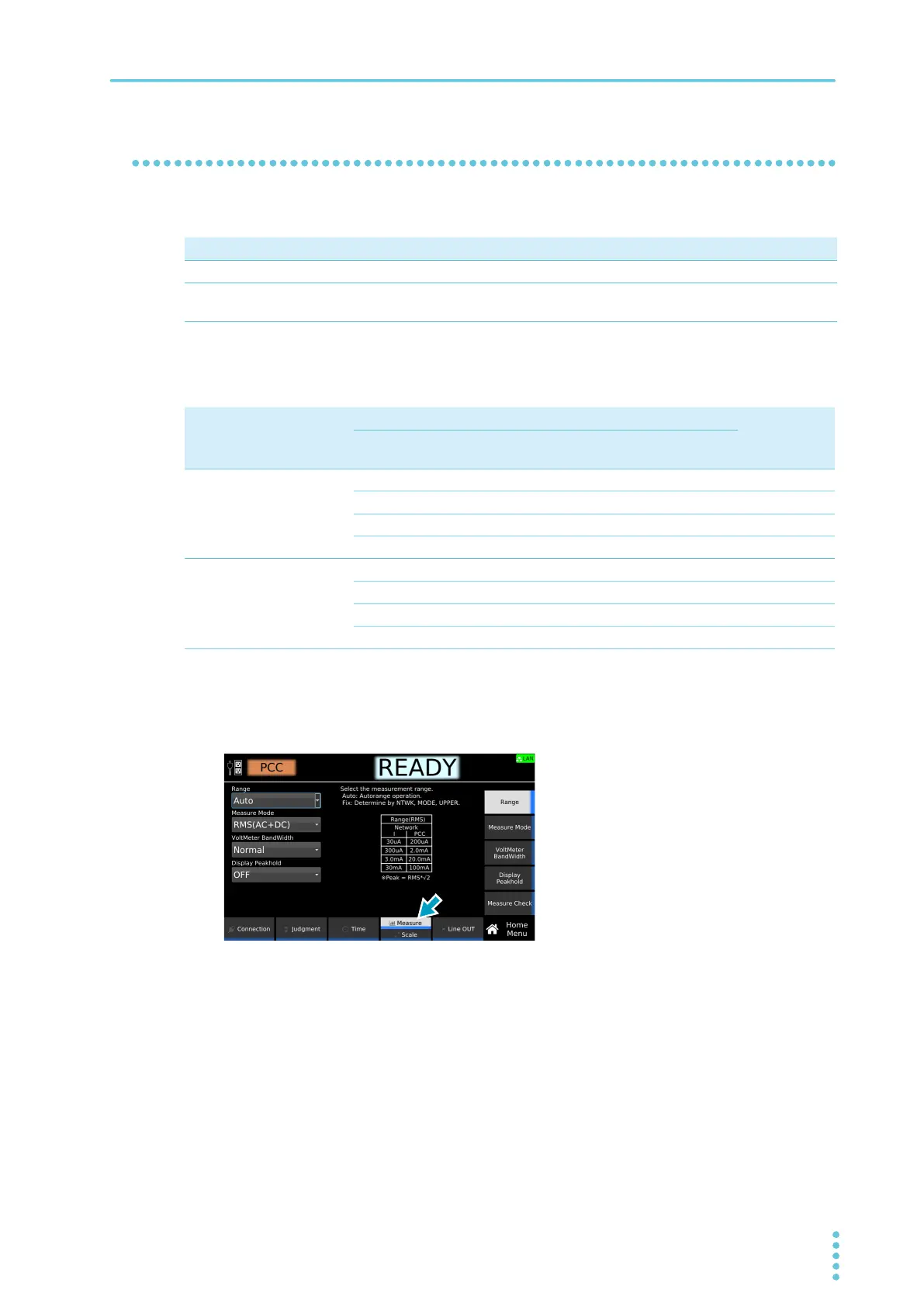

On the Home menu screen, press Measure repeatedly until Measure is selected.
Each time you press the key, the setting changes between Measure and Scale.
2
Press Range and then turn the rotary knob to change the value.
This completes the setting.
Value Description
Auto Switches the range automatically according to the measured values.
Fix The measurement range is fixed Range 1 to 4 according to the Network, Upper, and
Measure Mode settings. See “Measurement range when Fix is selected” below.
Network Upper
Range setting
1
1 For the measurement range of each range setting, see the specifications (p.301).
Measure Mode: Peak Measure Mode:
RMS (AC+DC), RMS (AC), DC
I 0.1 µA to 42.4 µA 0.1 µA to 30 µA Range 1
42.5 µA to 424 µA 31 µA to 300 µA Range 2
425 µA to 4.50 mA 301 µA to 3.00 mA Range 3
45.1 mA to 45.0 mA 3.01 mA to 30.0 mA Range 4
PCC-1, PCC-2 0.1 µA to 282 µA 0.1 µA to 200 µA Range 1
283 µA to 2.83 µA 201 µA to 2.00 mA Range 2
2.84 µA to 28.3 mA 2.01 mA to 20.00 mA Range 3
28.4 mA to 100 mA 20.1 mA to 100 mA Range 4
To Next Page
