Earth Continuity Test | Setting Test Conditions
Upper limit
Set the reference resistance or voltage for upper limit judgment. If a value greater than or equal to Upper is
measured, upper limit judgment (Upper-FAIL) results. To disable upper limit judgment, set Upper to off.
1

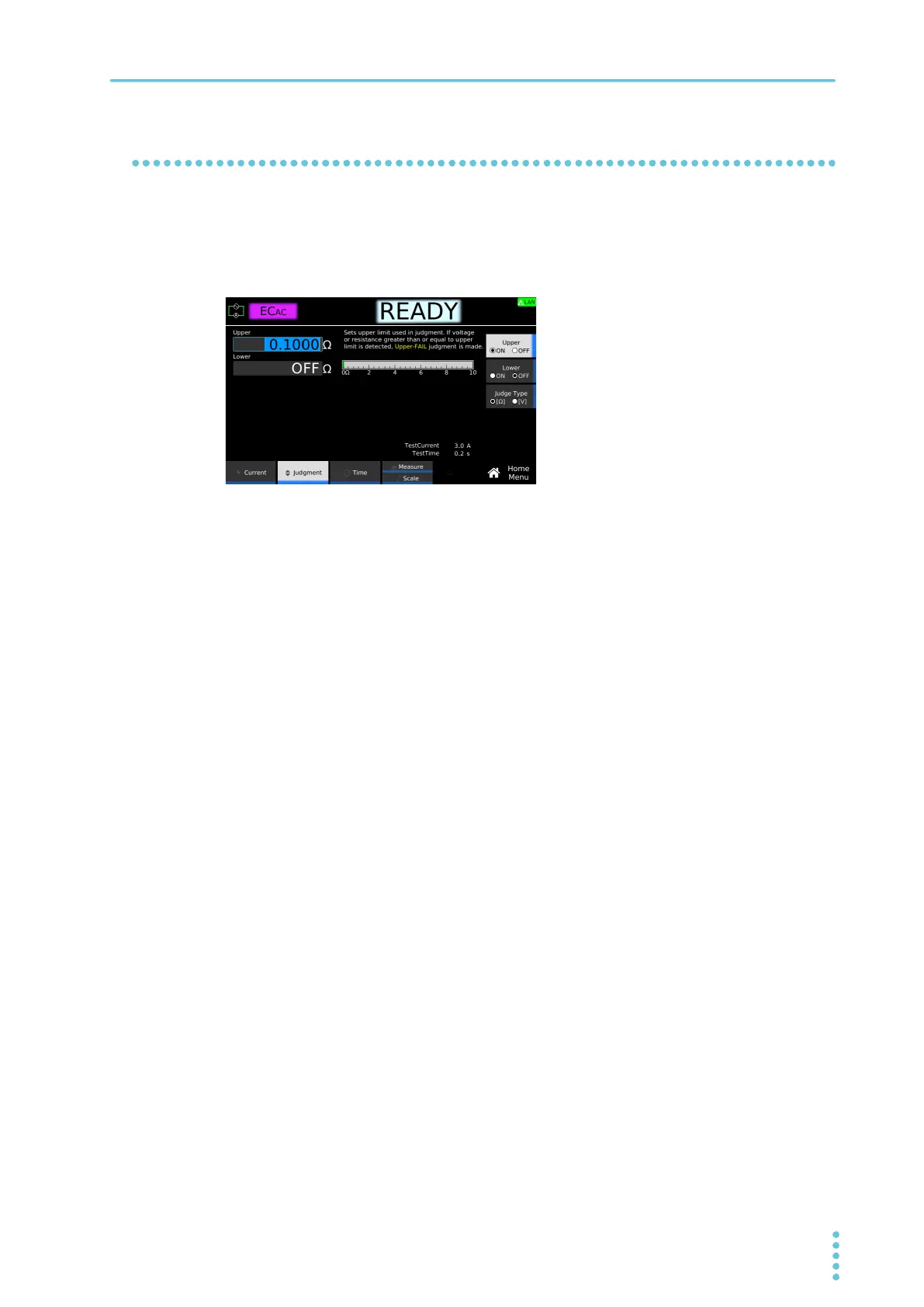

On the Home menu screen, press Judgment > Upper.
2
Press Upper to switch between on and off.
Upper switches between on and off each time you press the key.
3
If you select on, use the numeric keypad or the rotary knob to enter the resistance
or voltage.
To change the unit of the value to resistance or voltage, press Judge Type. Each time you press the
key, the unit of Upper and Lower values switch between Ω and V.
Setting range: 0.000 1 Ω to 10.000 0 Ω, 0.001 V to 5.000 V
This completes the setting.
