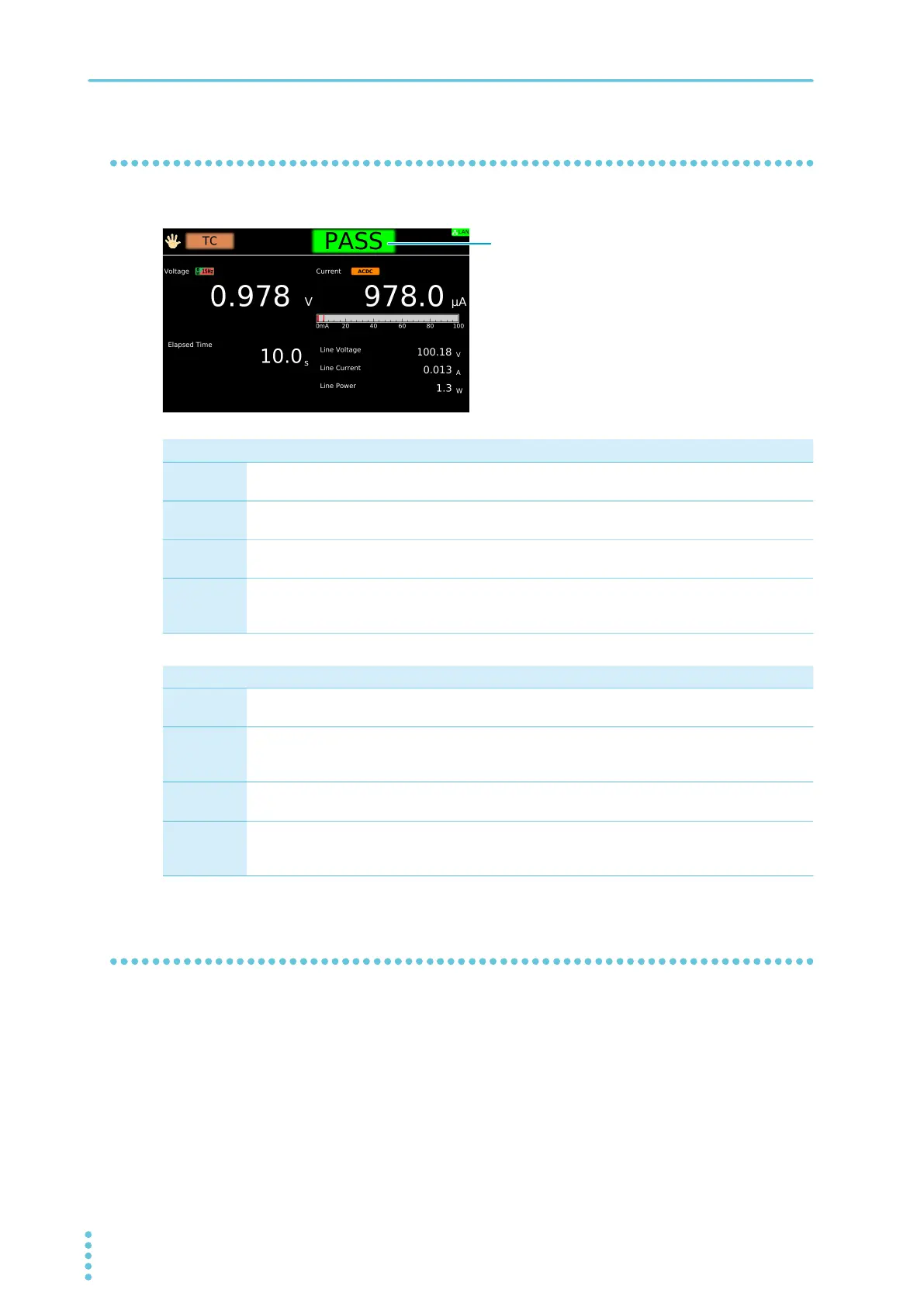

158 User’s Manual TOS93 Series
Touch Current Test | Finishing the Test and Viewing the Judgment
Judgment types and operation
When a test finishes, the judgment result is shown in the test status.
Clearing the judgment result
Press STOP to clear the judgment result. The product is ready to start another test.
Upper-FAIL Lower-FAIL
Condition A current greater than or equal to the upper
limit was measured.
A current less than or equal to the lower limit
was measured.
Display The test status shows “Upper-FAIL” until the
judgment result is cleared.
The test status shows “Lower-FAIL” until the
judgment result is cleared.
Buzzer The buzzer continues to sound until the
judgment result is cleared.
The buzzer continues to sound until the
judgment result is cleared.
SIGNAL I/O
connector
U FAIL signal is output until the judgment result
is cleared.
L FAIL signal is output until the judgment result
is cleared.
Contact-FAIL PASS
Condition When each measurement point is grounded
with Probe set to Enc-Liv or Enc-Neu.
Upper-FAIL, Lower-FAIL, or Contact-FAIL
judgment did not occur during the test.
Display The test status shows “Contact-FAIL” until the
judgment result is cleared.
The test status shows “PASS” until the time
specified by Pass Hold elapses. Then the
judgment result is cleared.
Buzzer The buzzer continues to sound until the
judgment result is cleared.
The buzzer sounds for 50 ms (regardless of
the Pass Hold time).
SIGNAL I/O
connector
Both the U FAIL and L FAIL signals are output
simultaneously until the judgment result is
cleared.
PASS signal is output until the judgment result
is cleared.
To Next Page
