Kikusui TOS9301 - Limit Voltage; Frequency

TOS93 Series User’s Manual 113
Partial Discharge Test | Set test conditions

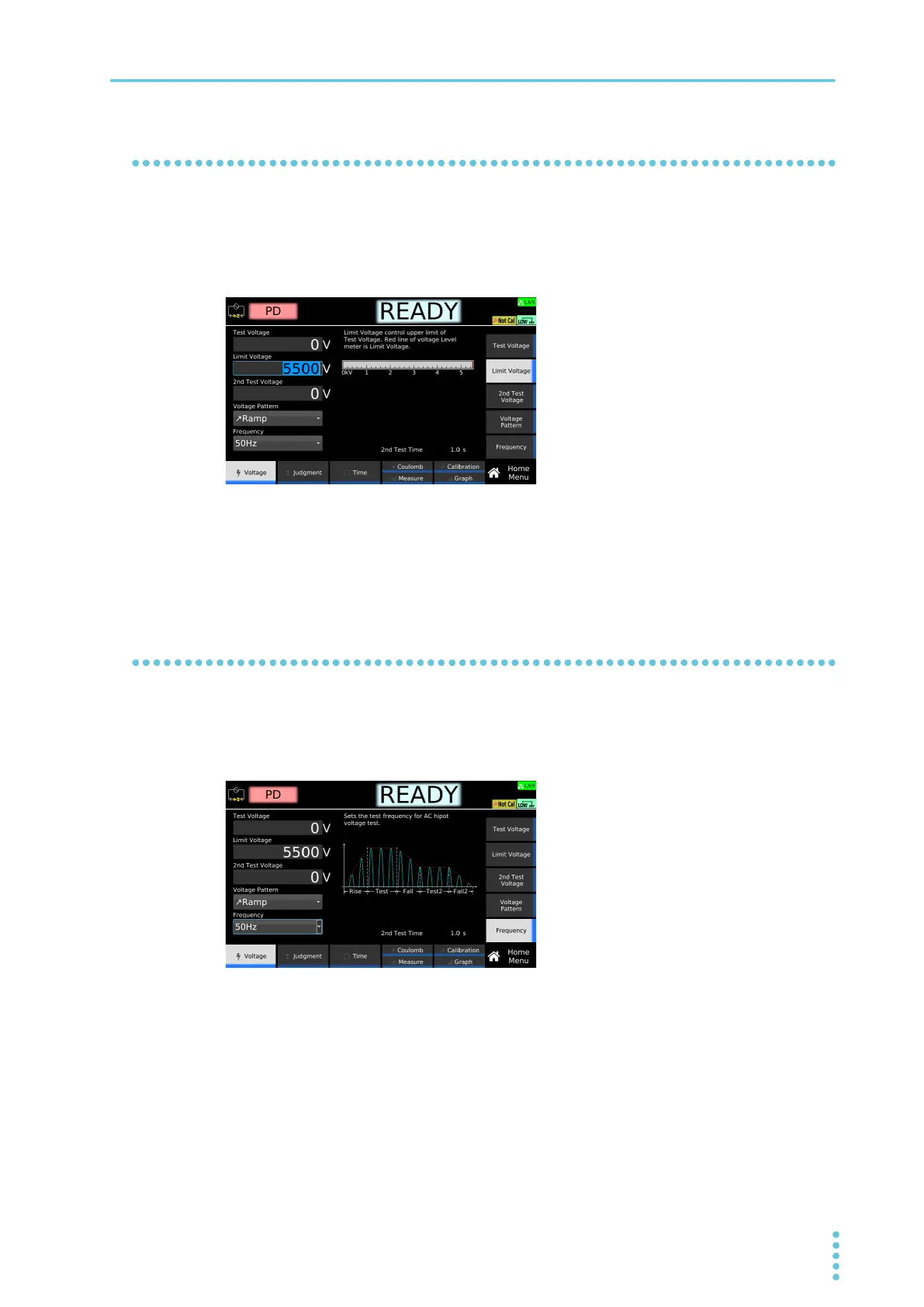

Limit voltage
Set the upper limit of the voltage applied to EUT. This prevents unnecessarily high voltage from being
applied to EUT by mistake.
1
On the Home Menu screen, press Voltage > Limit Voltage.
2
Use the numeric keypad or the rotary knob to enter the voltage value.
Setting range: 0 V to 5 500 V
This completes the setting.
Frequency
Set the test voltage frequency to 50 Hz or 60 Hz.
1
On the Home Menu screen, press Voltage > Frequency.
2
Use the rotary knob to select 50 Hz or 60 Hz.
This completes the setting.
