Kikusui TOS9301 - Setting the Voltage Pattern, Test Voltages, and Application Times

110 User’s Manual TOS93 Series
Partial Discharge Test | Set test conditions
Setting the voltage pattern, test voltages, and application times

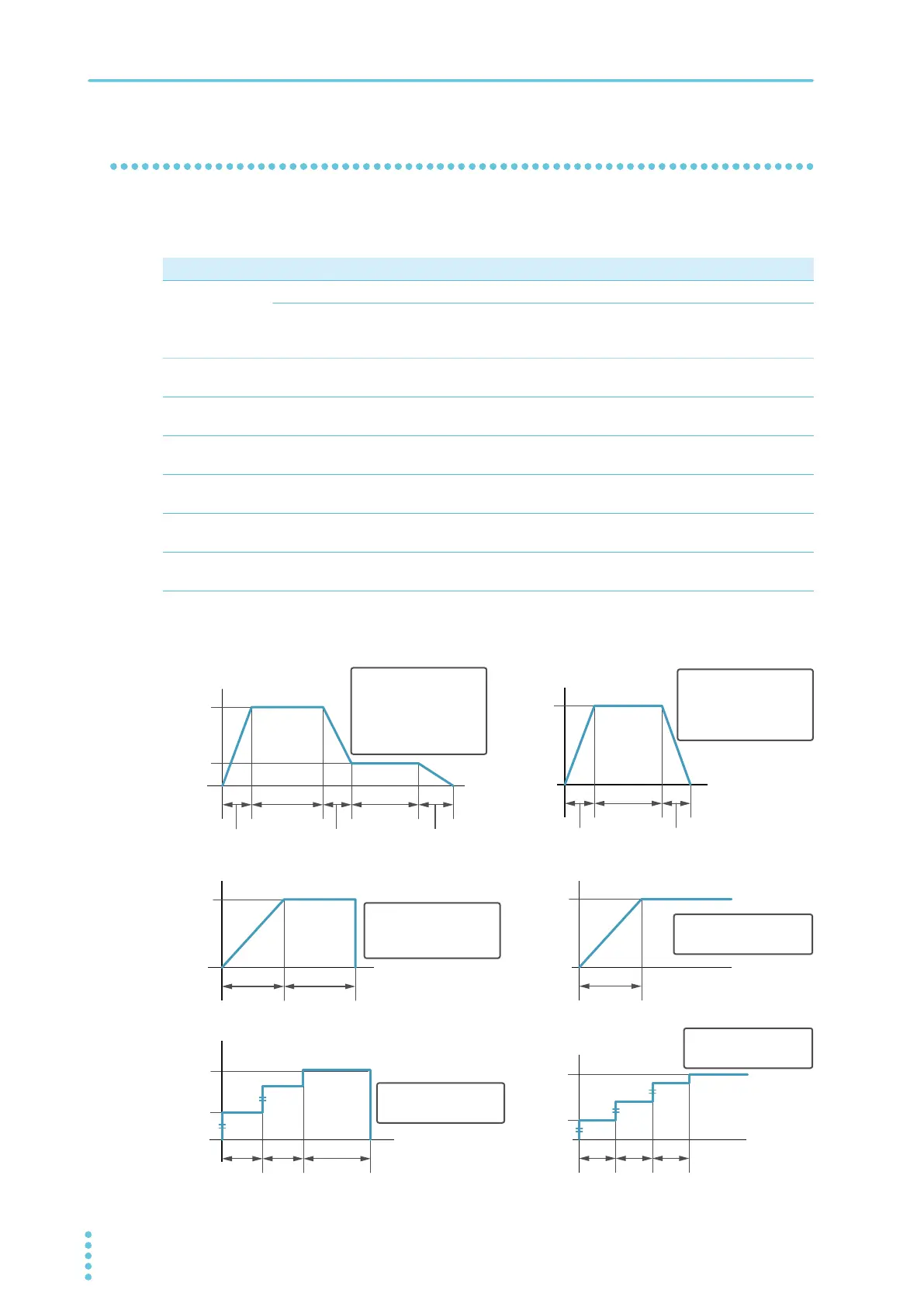

The voltage pattern to apply to the EUT is determined by the combination of the following test conditions
(voltage pattern, test voltages, application times).
 Example of test conditions
Value Description
Voltage Pattern Ramp You can define a test voltage pattern with increasing and decreasing ramps.
Step You can define a test voltage pattern that increase in steps. The number of steps
is calculated automatically from the voltages set to Test Voltage and Step Voltage
.
Test voltage (Test Voltage/
2nd Test Voltage )
Set the test voltages to apply to EUT. You cannot specify a voltage that exceeds
the limit voltage (p.113).
Step Voltage When Voltage Pattern is set to Step, set the voltage to apply to EUT in each step.
You cannot specify the test voltage that exceeds the limit voltage (p.113).
Step time When Voltage Pattern is set to Step, set the time per step until Test Voltage is
reached.
Voltage rise time (Rise
Time)
When Voltage Pattern is set to Ramp, set the time from when the START switch is
pressed until Test Voltage is reached.
Test time (Test Time/2nd
Test Time)
Set the length of time that the test voltage is applied. To continue testing until the
STOP switch is pressed without making Pass judgments, set Test Time to off.
Voltage fall time (Fall Time/
2nd Fall Time)
When Voltage Pattern is set to Ramp, set the time for the voltage to fall from the
test voltage.
Test
Voltage
2nd Test
Voltage
Test Time
Fall Time
2nd
Test Time
Rise Time 2nd
Fall Time
Output
off
Test TimeRise Time
Test
Voltage
Output
off
Test Time
Fall TimeRise Time
Test
Voltage
Output off
Voltage Pattern: Ramp
Test Time: ON
Fall Time: ON
2nd Test Time: ON
2nd Fall Time: ON
Voltage Pattern: Ramp
Test Time: ON
Fall Time: ON
2nd Test Time: OFF
Voltage Pattern: Ramp
Test Time: ON
Fall Time: OFF
Voltage Pattern: Ramp
Test Time: OFF
Rise Time
Test
Voltage
Output off
Voltage Pattern: Step
Test Time: ON
Step
Voltage
Step
Time
Step
Time
Test
Voltage
Test Time
Output
off
Step
Voltage
Step
Time
Step
Time
Test
Voltage
Step
Time
Output off
Voltage Pattern: Step
Test Time: OFF
