Monitoring the step execution status of auto tests
When a step of an auto test ends, SIGNAL I/O STEP END (pin 31) is set to low level.
CYCLE END (pin 32) of SIGNAL I/O is set to low level while a pass or fail judgment is being indicated after
the
last step is completed or from when a test is completed with a fail judgment until when the judgment is
released.
Monitoring the activation status of protection functions
SIGNAL I/O PROTECTION (pin 30) is set to low level when a protection function (p.23) is activated.

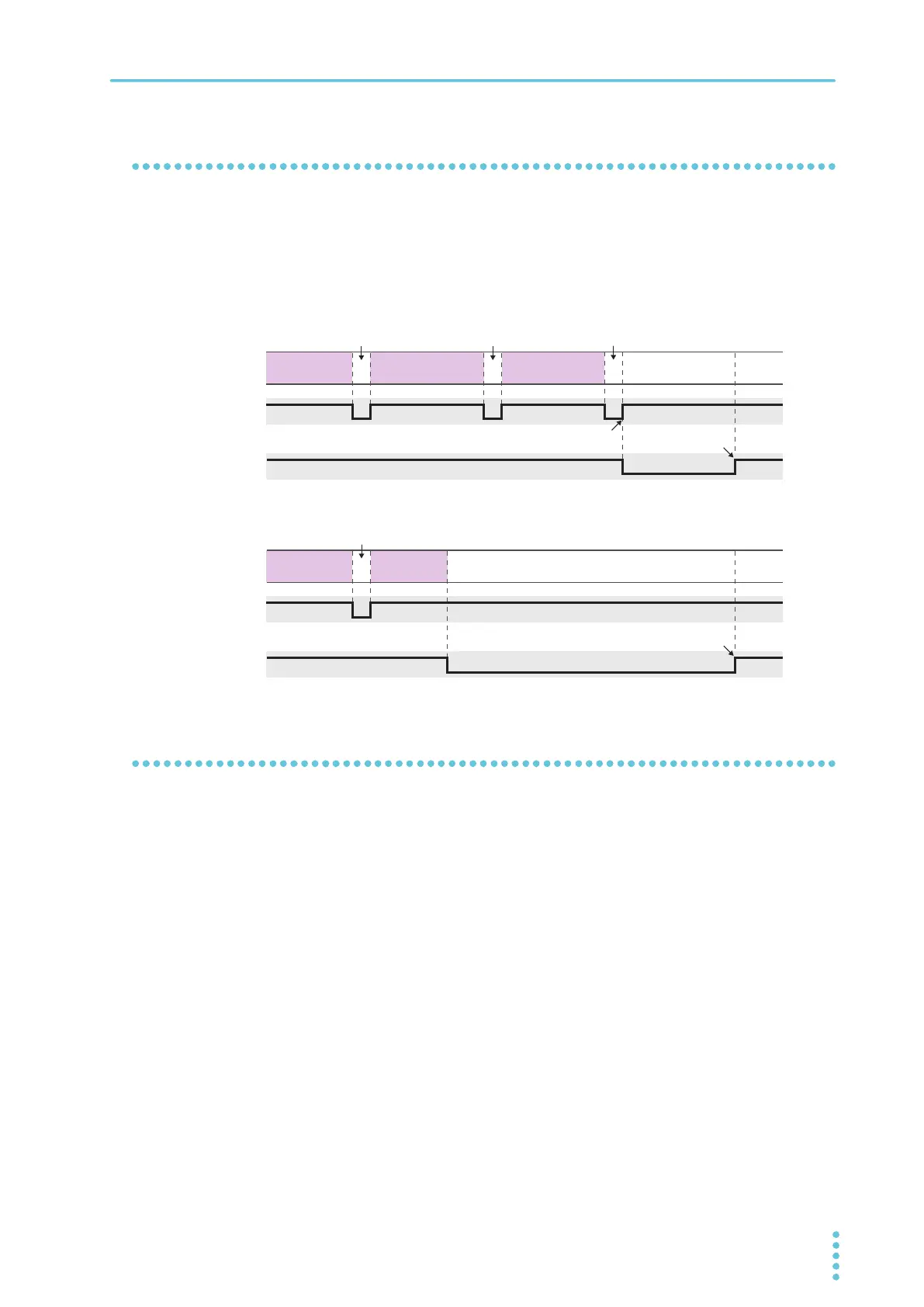

STEP END
STEP3
CYCLE END
STEP1
STEP2
Last step end
IntervalInterval
PASS or
FAIL judgment
Judgment released
Interval
STEP END
CYCLE END
STEP1
STEP2
Interval
FAIL judgment
Judgment released
Ŷ
If a PASS or FAIL judgment is made after the last step ends
Ŷ
If a FAIL judgment is made in the middle of a step and auto test stops
