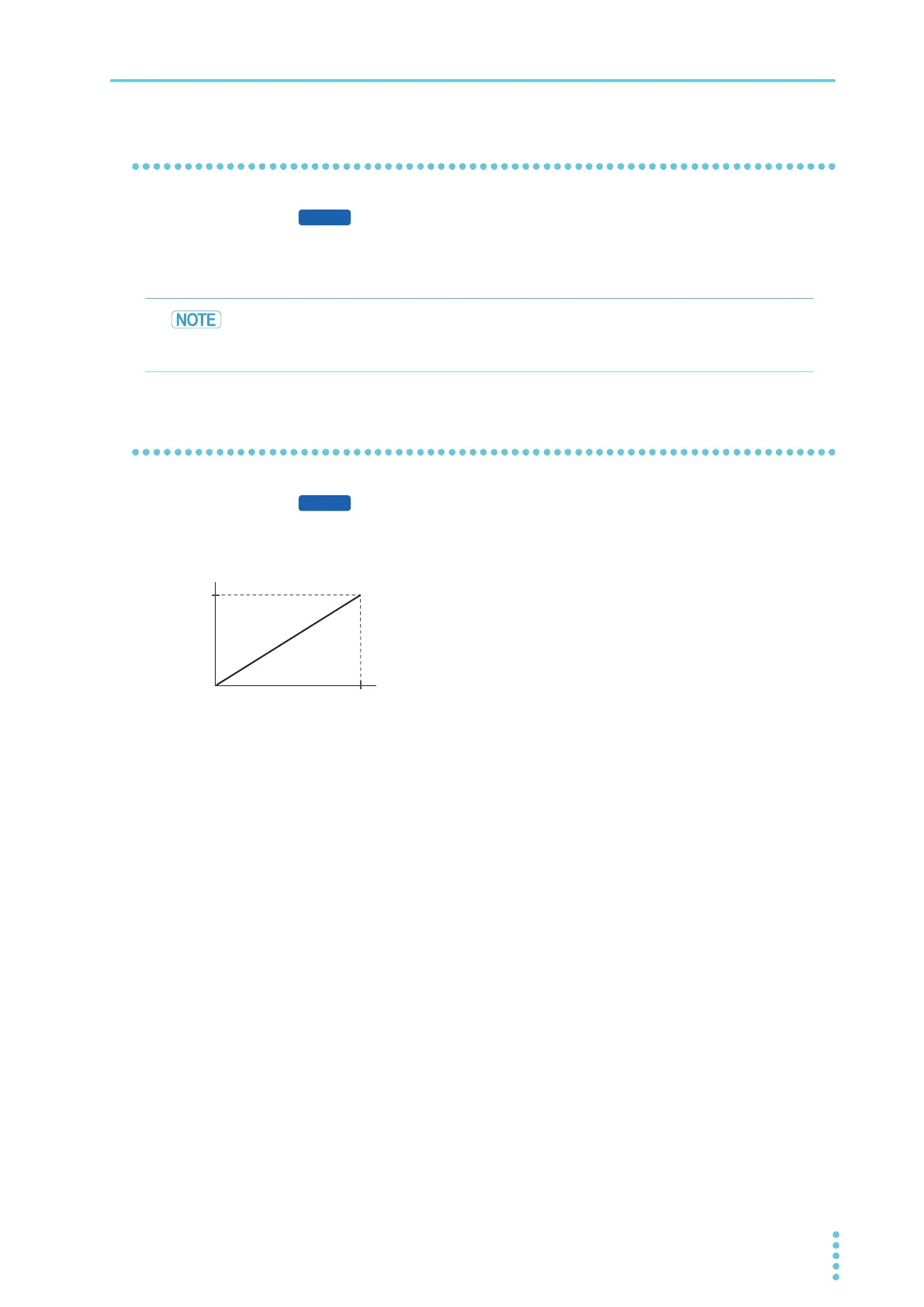

Monitor the discharge waveform of partial discharge
Applicable model:
Discharge waveforms of partial discharge can be monitored using the signal output from the Ipd terminal
on the rear panel.
Monitoring electric charge waveforms of partial discharge
Applicable model:
Electric charge waveforms of partial discharge can be monitored using the signal output from the Qpd
terminal on the rear panel.
9301PD
Discharge waveforms obtained from the Ipd terminal are those that have passed through the
filter (HPF) of the current detector inside the product. They may be different from the actual
discharge waveforms.
9301PD
10
V
0
Electric charge of
partial discharge
Full scale of the measurement range
Monitor output
Max: 15 Vpeak
