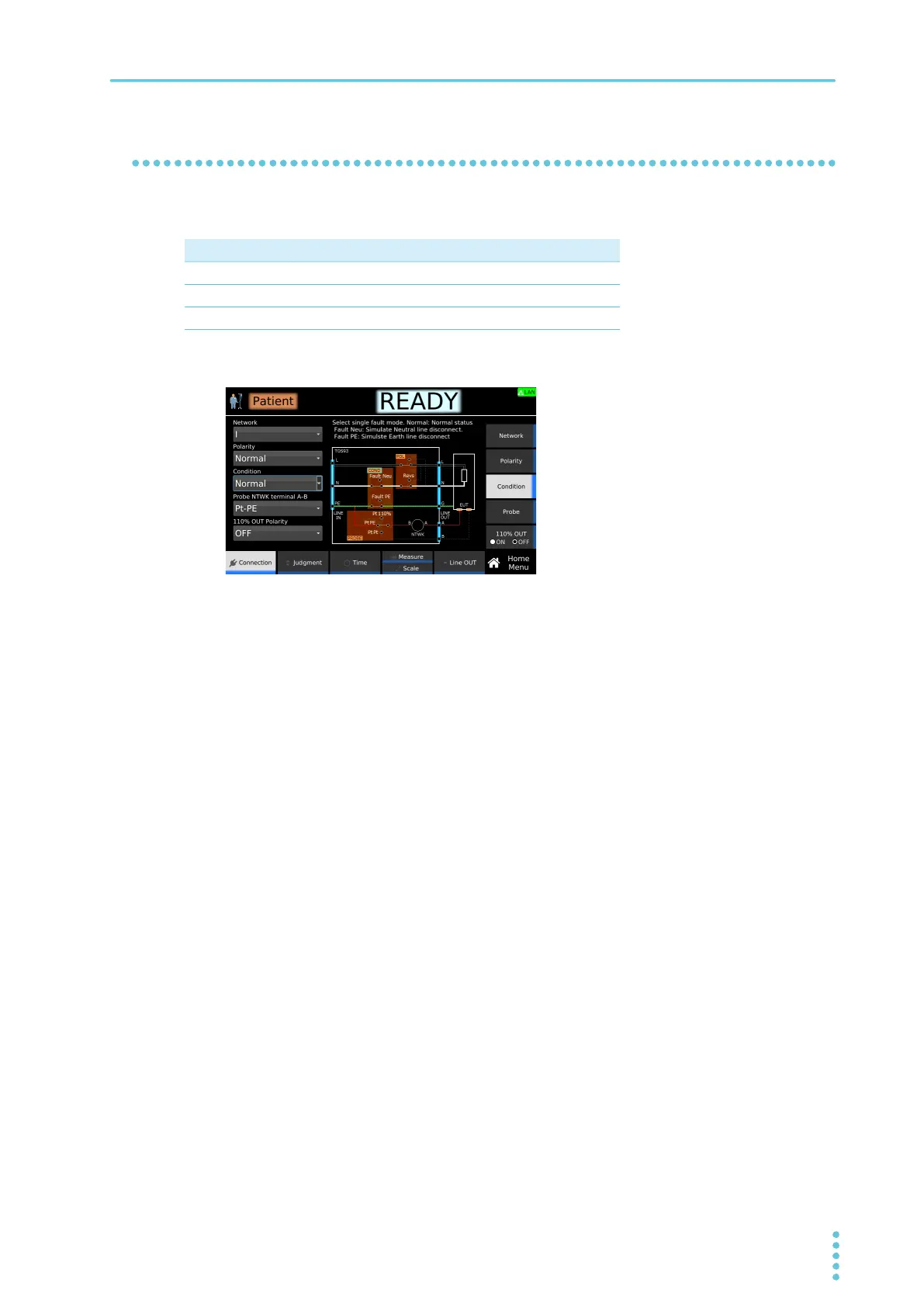

TOS93 Series User’s Manual 181
Patient Leakage Current Test | Setting Test Conditions
Single fault mode (Condition)
This is used to simulate a single fault condition of the EUT.
1
On the Home menu screen, press Connection > Condition.
2
Turn the rotary knob to change the value.
This completes the setting.
Value Description
Normal Normal condition.
Fault Neu Disconnected power supply line (neutral) condition.
Fault PE Disconnected protective ground wire condition.
