Operation after a test starts
Shown below are examples of operation after a test starts.

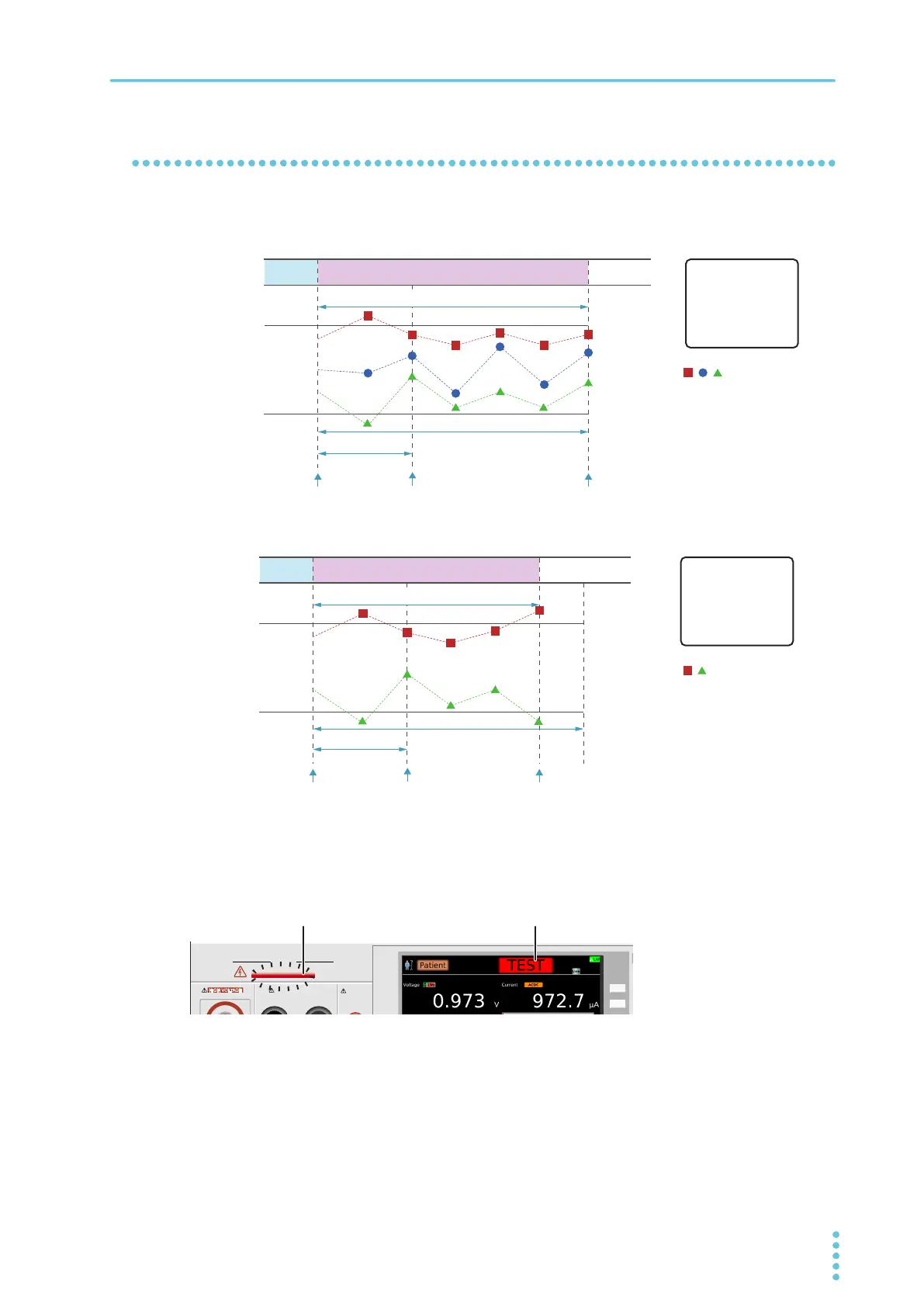

 DANGER LED and test status display
During a test, the DANGER LED lights, and the test status is shown in the upper right of the display.
Judge Delay
Lower
Upper
TEST
READY
Press START.
DANGER LED lit
Test Status
PASS judgment
Ŷ
Example of a PASS judgment
Upper: ON
Lower: ON
Judge Delay: ON
Test Time: ON
Test Time
Judgment begins.
: Measurement
PASS
Judge Delay
Lower
Upper
TEST
READY
Press START.
DANGER LED lit
Test Status
Upper-FAIL or Lower-FAIL judgment
Ŷ
Example of a FAIL judgment
Upper: ON
Lower: ON
Judge Delay: ON
Test Time: ON
Test Time
Judgment begins.
: Measurement
Upper-FAIL or
Lower-FAIL
OUTPUT
DANGER
110%
LEAKAGE
CURRENT
HIGH VOLTAGE
EARTH CONTINUITY
OUTPUT
LOW HIGH
H
Lit Test status
