200 User’s Manual TOS93 Series
Patient Leakage Current Test | Finishing the Test and Viewing the Judgment
Judgment types and operation

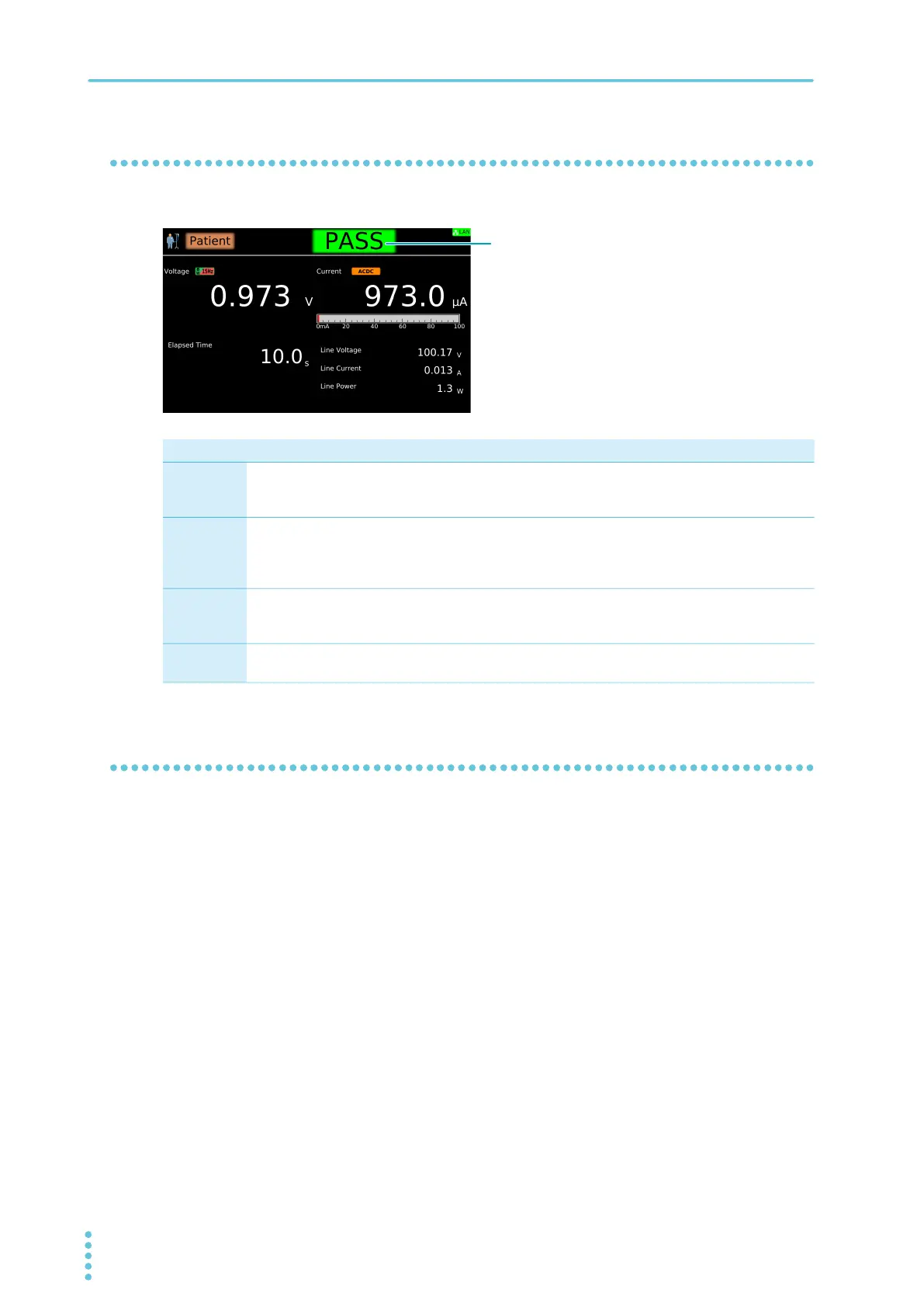

When a test finishes, the judgment result is shown in the test status.
Clearing the judgment result
Press STOP to clear the judgment result. The product is ready to start another test.
Upper-FAIL Lower-FAIL PASS
Condition A current greater than or equal
to the upper limit was
measured.
A current less than or equal to
the lower limit was measured.
Upper-FAIL or Lower-FAIL
judgment did not occur during
the test.
Display The test status shows “Upper-
FAIL” until the judgment result
is cleared.
The test status shows “Lower-
FAIL” until the judgment result
is cleared.
The test status shows “PASS”
until the time specified by Pass
Hold elapses. Then the
judgment result is cleared.
Buzzer The buzzer continues to sound
until the judgment result is
cleared.
The buzzer continues to sound
until the judgment result is
cleared.
The buzzer sounds for 50 ms
(regardless of the Pass Hold
time).
SIGNAL I/O
connector
U FAIL signal is output until the
judgment result is cleared.
L FAIL signal is output until the
judgment result is cleared.
PASS signal is output until the
judgment result is cleared.
To Next Page
