TOS93 Series User’s Manual 53
Withstanding Voltage and
Insulation Resistance Tests
Applicable models for AC withstanding voltage (ACW): All models
Applicable models for DC withstanding voltage (DCW): , , ,
Applicable models for insulation resistance (IR): , , , ,
This chapter describes how to set test conditions, start tests, and view the results for ACW,
DCW, and IR
tests.

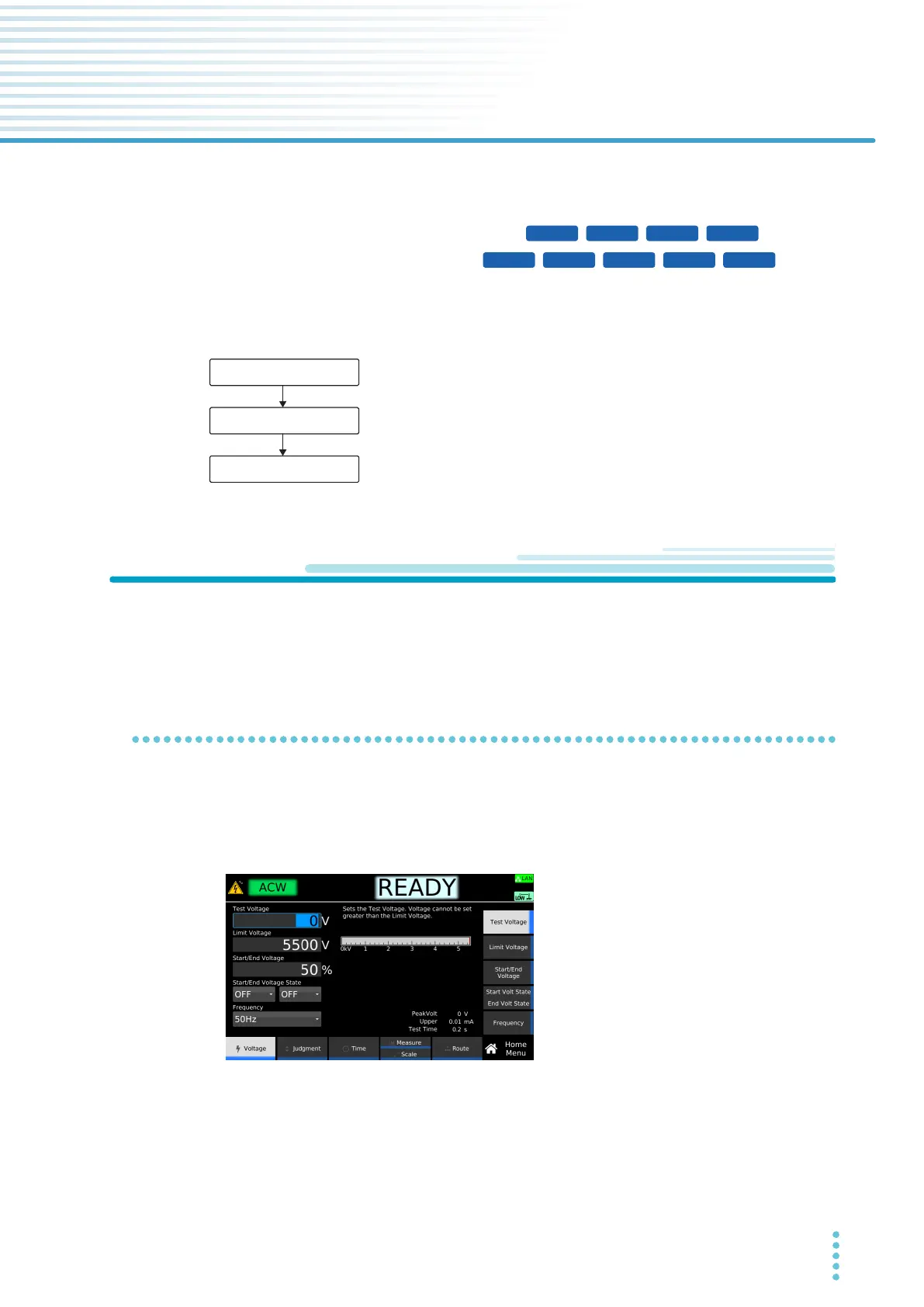

The following flowchart shows the configuration and test steps.
Setting Test Conditions
This section describes the test conditions of AC withstanding voltage (ACW), DC withstanding voltage
(DCW), and insulation resistance (IR) tests and how to set the conditions.
Displaying the setup screen (Home menu)
1
On the Function menu screen (p.46), press ACW, DCW, or IR.
If you press IR, select the voltage range with the sub-function keys (7 200 V or -1 000 V) (excluding
the TOS9300).
The setup screen (Home menu) for the ACW, DCW, or IR test conditions appears.
Set the required conditions by referring to the description of test conditions
(p.54).
9301
9301PD
9303
9303LC
9300
9301
9301PD
9303
9303LC
Start a test.
Set test conditions.
Finish the test and judge.
(p.53)
(p.82)
(p.88)
Example: Home menu screen of ACW
