Withstanding Voltage and Insulation Resistance Tests | Setting Test Conditions
Offset
This can be set only in DC withstanding voltage (DCW) and insulation resistance (IR) tests.
An offset can be applied to the current or resistance of test leads, tools, etc.
If the offset is set to on,
appears during testing.
The offset current is recorded in terms of a resistance in the product. The actual offset current is calculated
from the resistance and test voltage. Because the resistance resolution is 100 Ω, an error may occur in the
measured value.

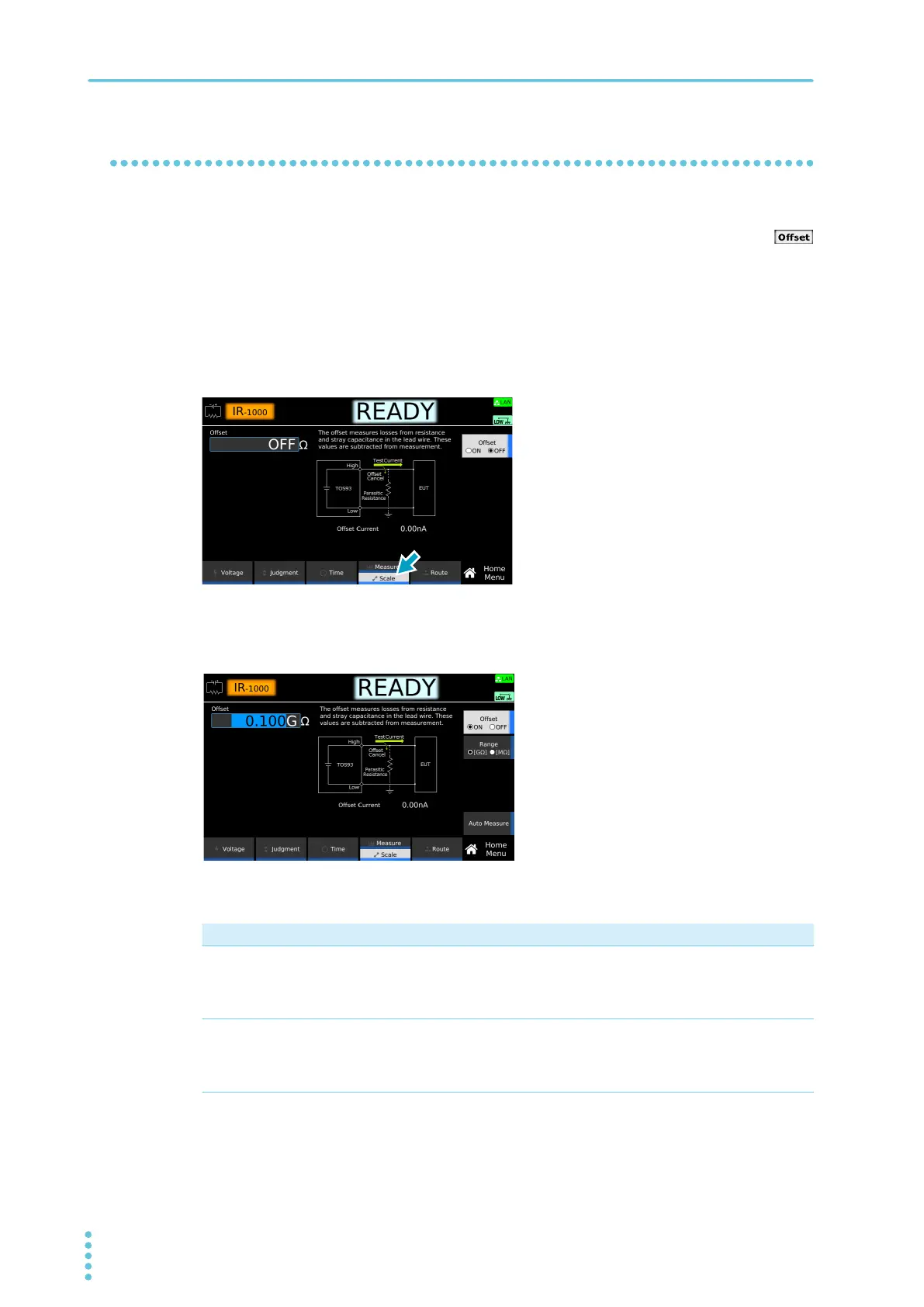

1
On the Home menu screen, press Scale repeatedly until Scale is selected.
Each time you press the key, the setting changes between Measure and Scale.
2
Press Offset to switch between on and off.
Offset switches between on and off each time you press the key.
3
If set to ON, set the Offset value according to the following procedure.
This completes the setting.
Purpose Operation
Measure the Offset value to
set it automatically.
Press Auto Measure. Use the rotary knob or numeric keypad to enter
the test voltage. Connect test leads to this product, and open the test
leads. Press START. When the measurement stabilizes, press STOP.
The Offset value is set automatically.
Set the Offset value manually. Use the numeric keypad or the rotary knob to enter the value. For IR
tests, the unit of resistance changes each time you press Range.
DCW setting range: 0.000 0 mA to 10.000 0 mA
IR setting range: 0.001 MΩ to 2 000.0 GΩ
Example: Home menu screen of IR
To Next Page
