40 User’s Manual TOS93 Series
Installation | Connection for Partial Discharge Tests
Removing the test leads
To remove the test leads connected to the EUT, follow the procedure below.
1
Check that the DANGER LED is turned off.
2
Disconnect the high-voltage test lead (red) from the front-panel HIGH VOLTAGE
terminal.
3
Disconnect the high-voltage test lead (red) from the EUT.
4
Disconnect the low-voltage test lead (black) from the EUT.
You can disconnect the low-voltage test lead (black) first from either the product or the EUT.
5

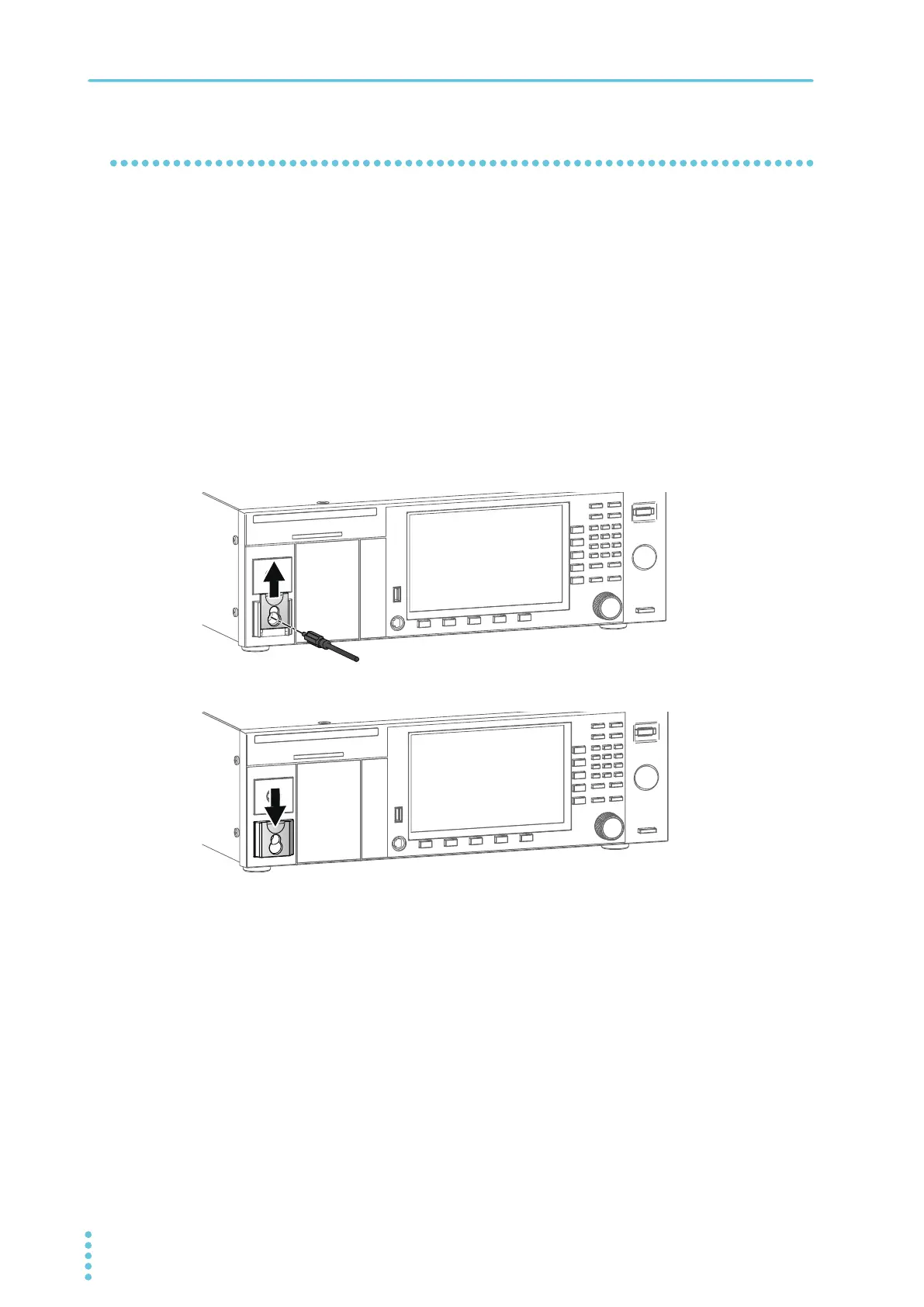

Raise the front-panel LOW terminal’s cable lock, and then remove the low-voltage
test lead (black).
6
Lower the cable lock.
This completes the procedure.
