Patient Leakage Current Test | Setting Test Conditions
Probe connection destination
Set where the test leads or probes are connected to.
1

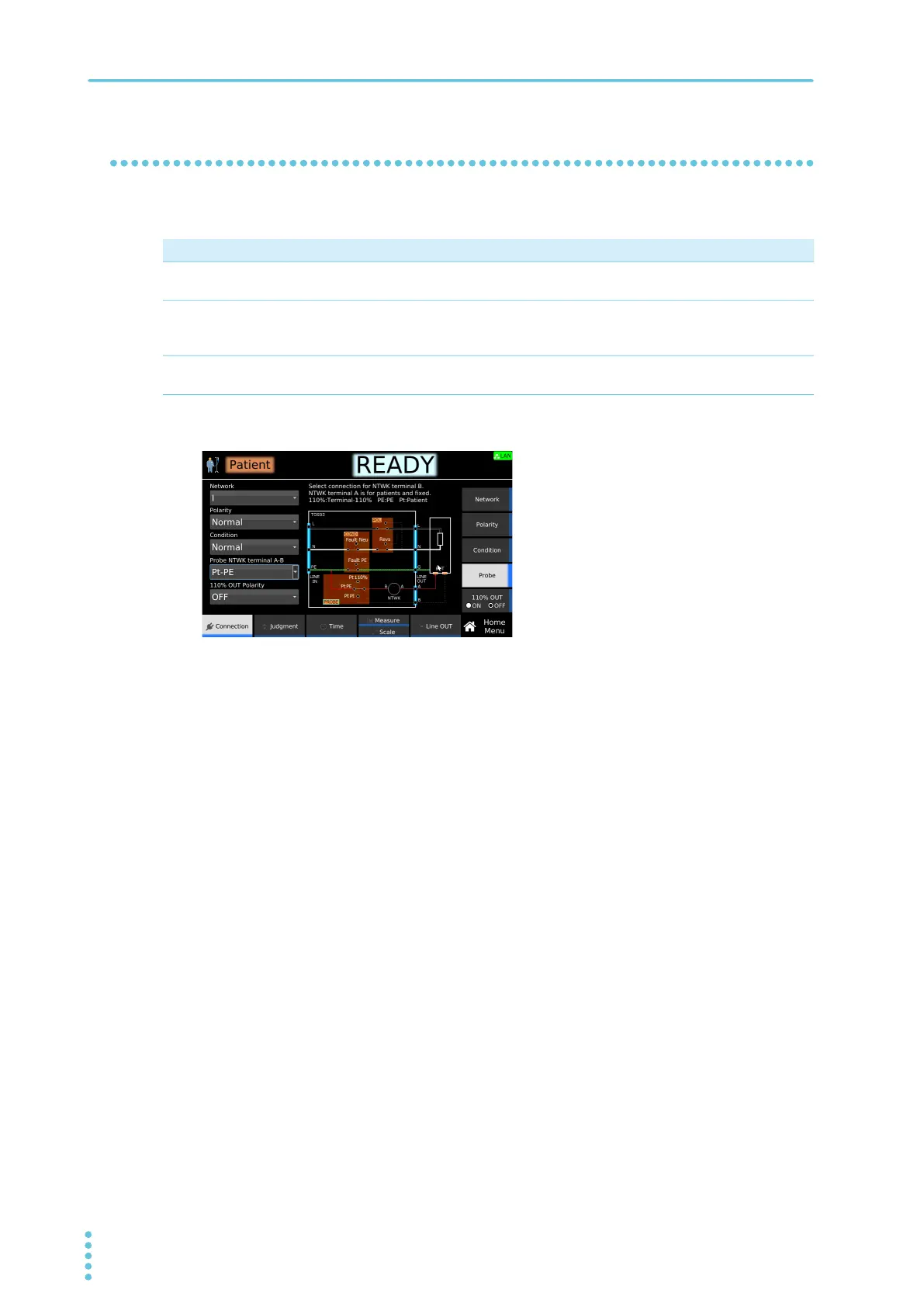

On the Home menu screen, press Connection > Probe.
2
Turn the rotary knob to change the value.
This completes the setting.
Value Description
Pt-110% Measures the patient leakage current running across the F-type applied part and 110%
terminal. Connect the test lead or probe of the A terminal to the F-type applied part.
Pt-PE Measures the patient leakage current or the total patient leakage current across a part
applied to the patient and earth. Connect the test lead or probe of the A terminal to the
applied part.
Pt-Pt Measures the patient measurement current across applied part. Connect the test leads or
probes of the A and B terminals to each of the two applied parts.
