208 User’s Manual TOS93 Series
Meter Mode | Setting Measurement Conditions
Measurement mode (Measure Mode)
Sets the measurement mode. The value measured using the specified measurement mode is displayed.
The judgment on whether the DANGER LED is to be lit when SELV setting (p
.206) is set to ON is also
performed for each measurement mode.
1

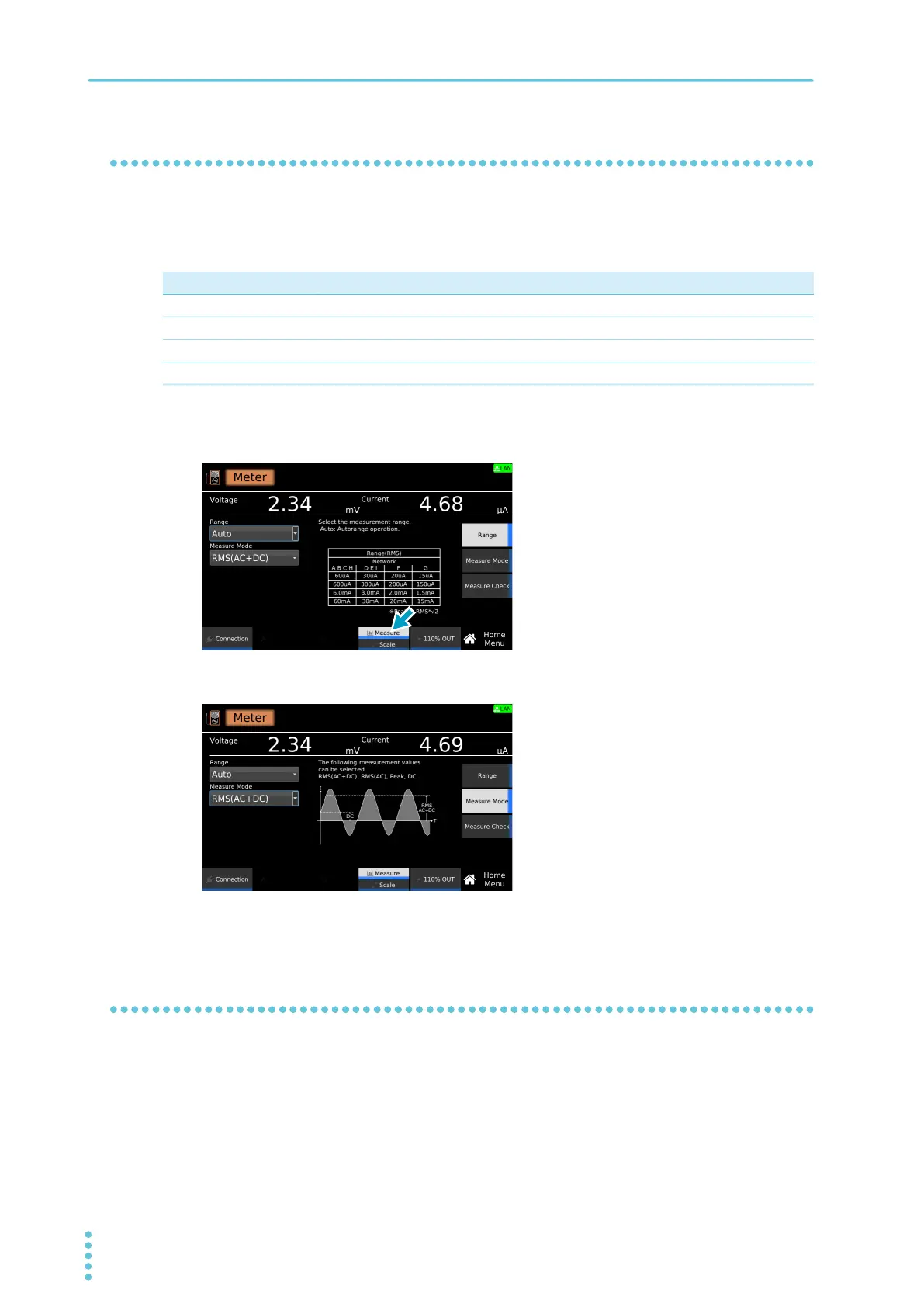

On the Home menu screen, press Measure repeatedly until Measure is selected.
Each time you press the key, the setting changes between Measure and Scale.
2
Press Measure Mode, and then turn the rotary knob to change the value.
This completes the setting.
Measurement check (Measure Check)
You can run a weak current across the A and B terminals, and check the measurement circuit. For details,
see “Measurement check” (p
.281).
Value Description
Peak Measures the waveform peak value.
RMS (AC+DC) Measures the DC component and AC component with true rms values.
RMS (AC) Measures only the AC component with true rms values.
DC Measures only the DC component.
