Touch Current Test | Setting Test Conditions
Voltage conversion (Conv Voltage)
If you set Conv Voltage to on, the current converted using a specified voltage is displayed based on the
voltage supplied to the EUT and the measured current. Judgment is also performed on the converted
current. If set to on, appears during testing.
1

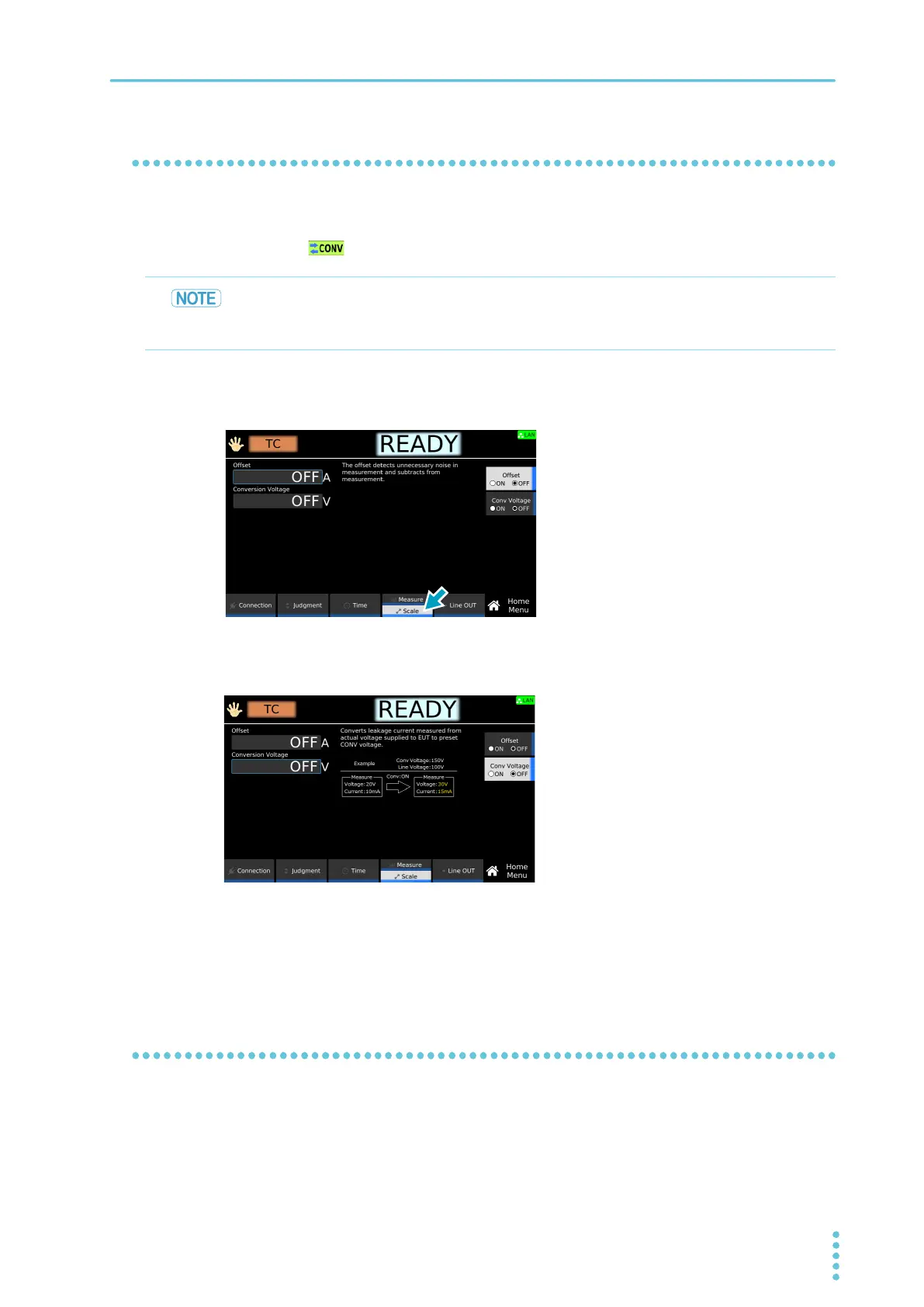

On the Home menu screen, press Scale repeatedly until Scale is selected.
Each time you press the key, the setting changes between Measure and Scale.
2
Press Conv Voltage to switch between on and off.
Conv Voltage switches between on and off each time you press the key.
3
If you select on, use the numeric keypad or the rotary knob to enter the voltage.
Setting range: 80.0 V to 300.0 V
This completes the setting.
Checking the EUT operation (Line OUT)
Check the EUT operation before testing. For details, see “Checking the EUT operation” (p.282).
If Conv Voltage is set to a value greater than or equal to five times the voltage applied from
the AC LINE OUT terminal to the EUT, the measurement during testing is displayed as “+
Over.”
