TOS93 Series User’s Manual 57
Withstanding Voltage and Insulation Resistance Tests | Setting Test Conditions

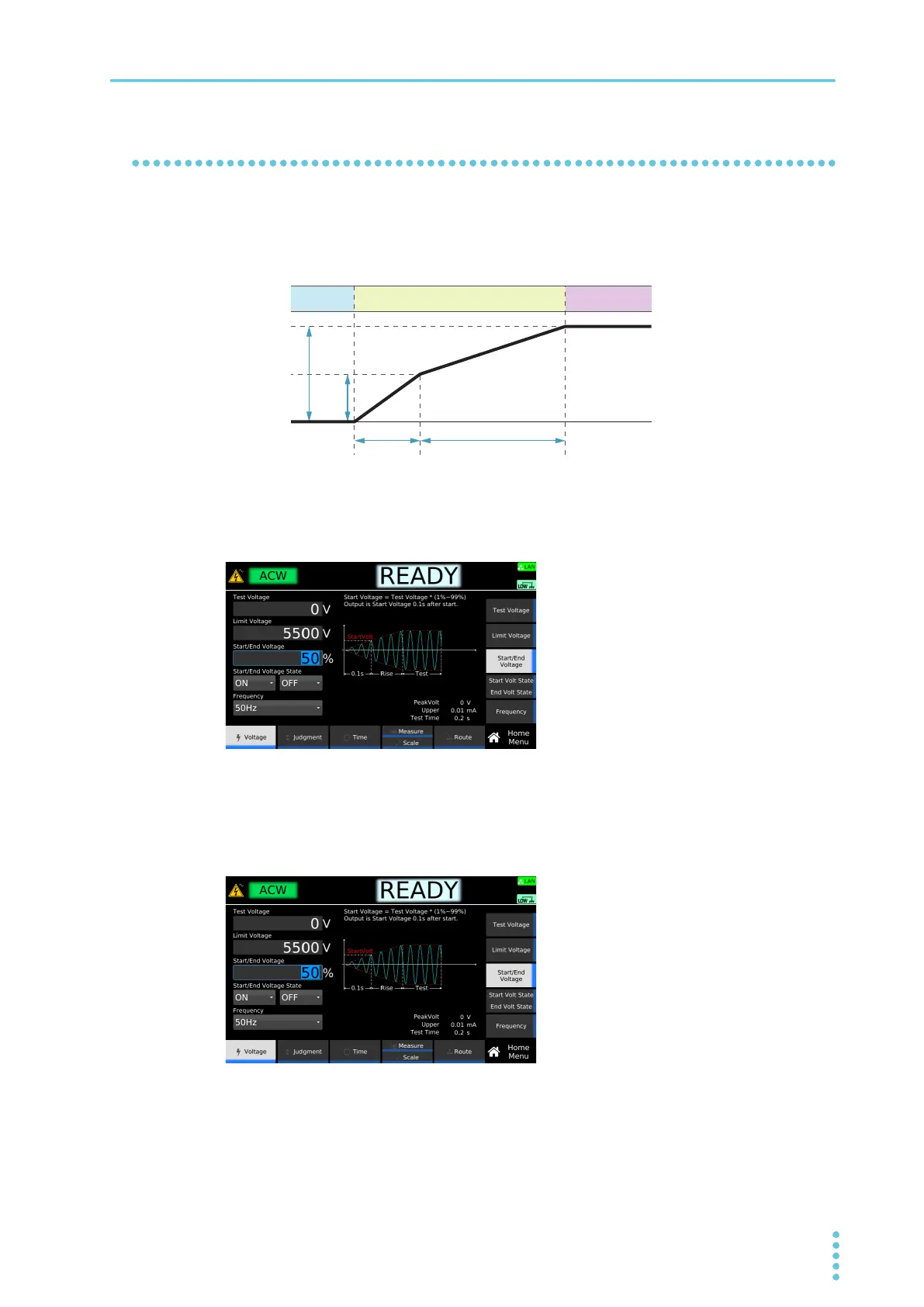

Start voltage
Set the voltage 0.1 seconds after the START switch is pressed as a percentage of the test voltage. If you
do not want to set the start voltage, set Start Voltage to off.
1
On the Home menu screen, press Voltage > Start Voltage.
Each time you press the Start Volt State key, the setting changes between Start Volt State and End
Volt State.
2
Turn the rotary knob to select ON or OFF.
3
If you select ON, press Start/End Voltage, and then use the numeric keypad or the
rotary knob to enter a percentage value.
This completes the setting.
Test Voltage
Start/End Voltage
0.1 s Rise Time
Ŷ
When the start voltage is 50%
100%
50%
TESTRISE
READY Test status
Output off
Example: Home menu screen of ACW
