Protective Conductor Current Test | Starting a Test

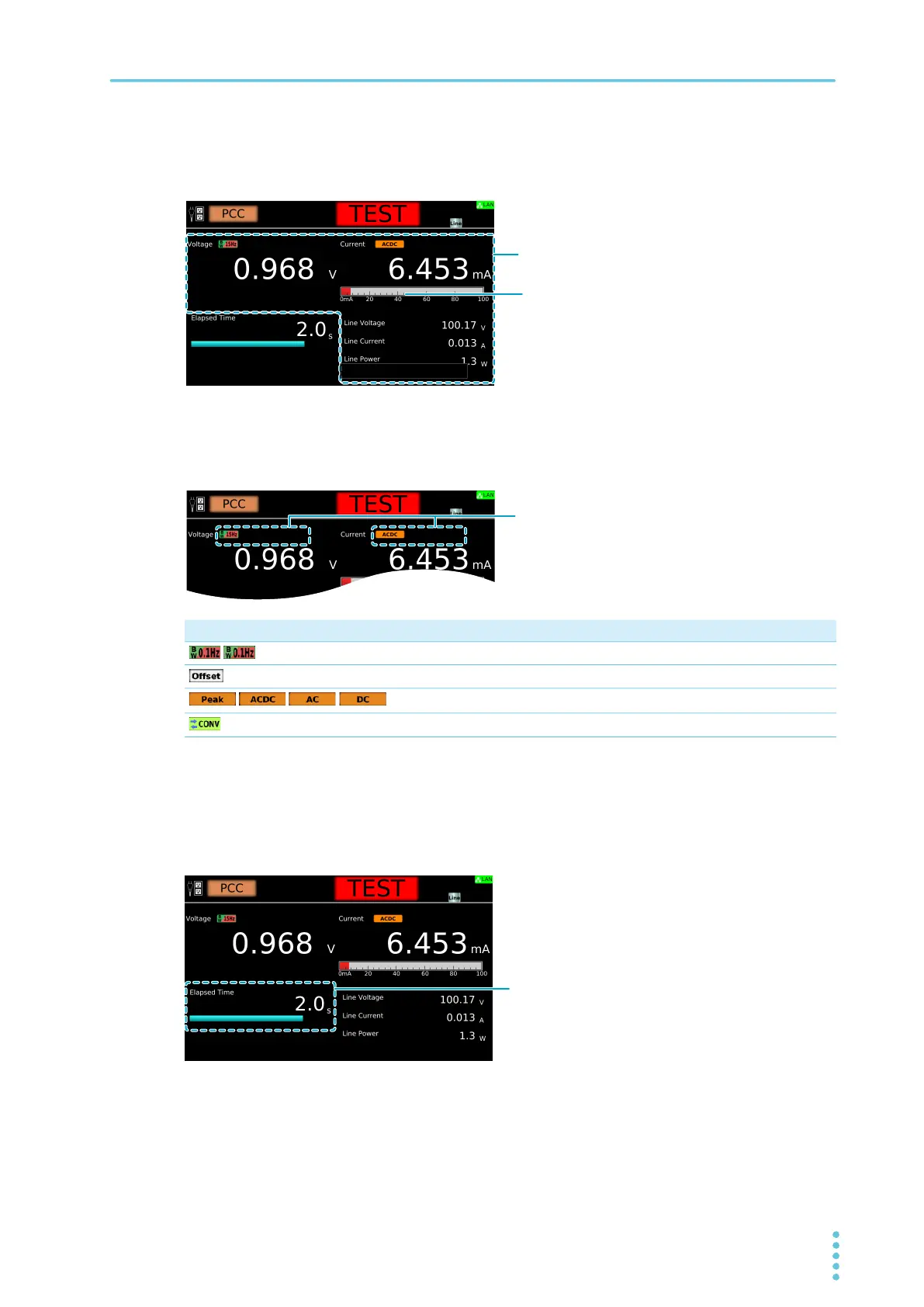

Measurement display
During a test, measurements are shown on the display.
Test condition display
Icons indicating the test conditions appearing during testing.
Test time display
During the test time, “TEST” and the elapsed time are displayed. If Test Time is set to on, the remaining
test time is displayed with a bar graph. If Test Time is set to off, the elapsed time is displayed up to
3 600 000.0 seconds. If the elapsed time is greater than 3 600 000.0, the display is fixed at 3 600 000.0.
Icon Description
/
VoltMeter BandWidth setting (Normal/Expand).
Offsetting.
/ / /
Measure Mode setting (Peak/RMS (AC+DC)/RMS (AC)/DC).
Conv Voltage being set to ON.
Measurement
Displays the ratio of the measurement
relative to the Upper value
Elapsed time. If Test Time is set to on, the
remaining test time is displayed with a bar graph.
To Next Page
