30 User’s Manual TOS93 Series
Installation | Connection for Withstanding Voltage and Insulation Resistance Tests
1

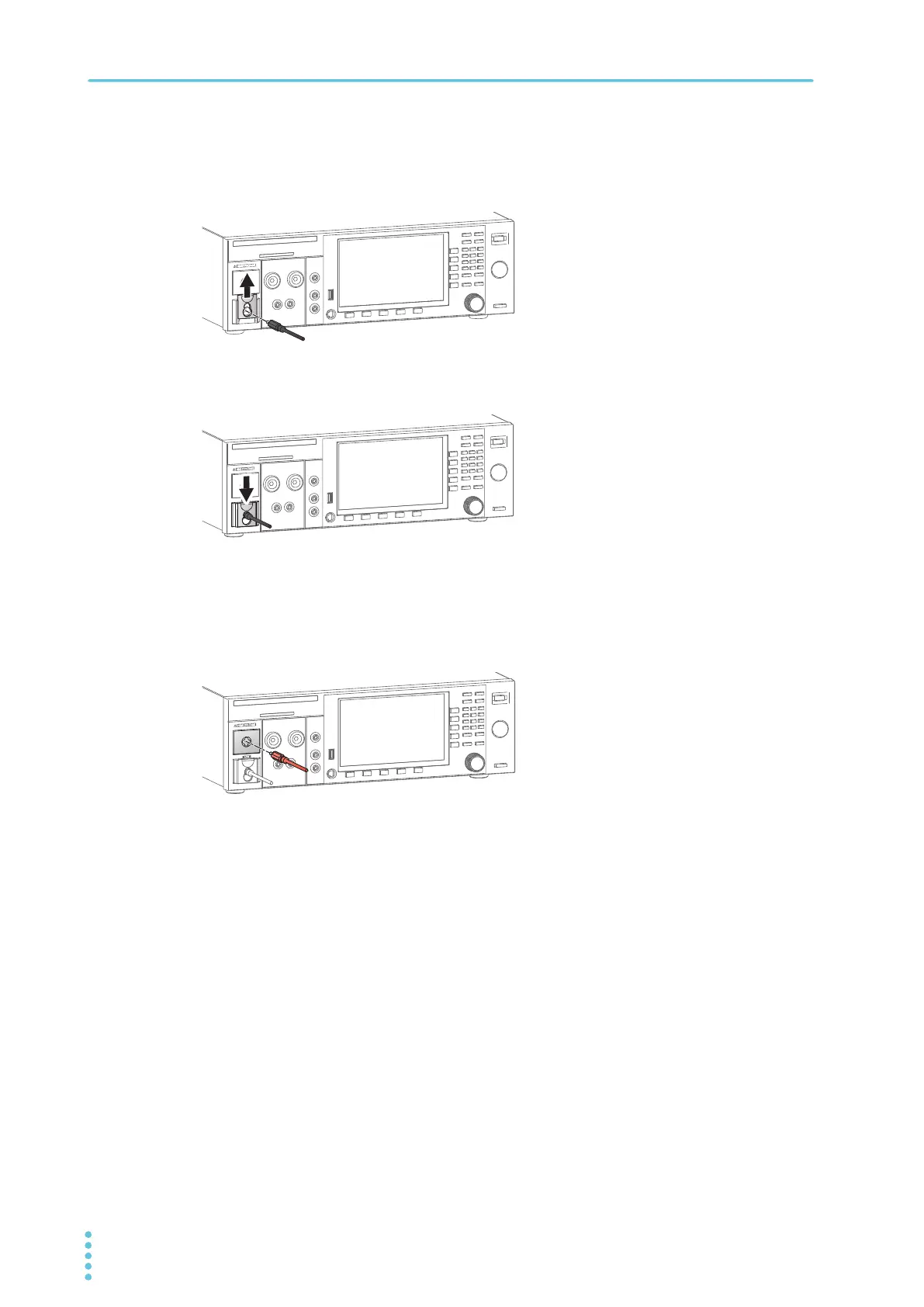

Check that the POWER switch is off and that the DANGER LED is off.
2
Raise the LOW terminal’s cable lock, and then connect the low-voltage test lead
(black).
3
Lower the cable lock.
Check that the connection is secure.
4
Connect the low-voltage test lead (black) to the EUT.
5
Connect the high-voltage test lead (red) to the EUT.
6
Connect the high-voltage test lead (red) to the HIGH VOLTAGE terminal.
This completes the connections.
