The media size set for the media tray assembly is transmitted to the switch (media size) by moving these
guides. The media size is detected by the on/off information of these switches.

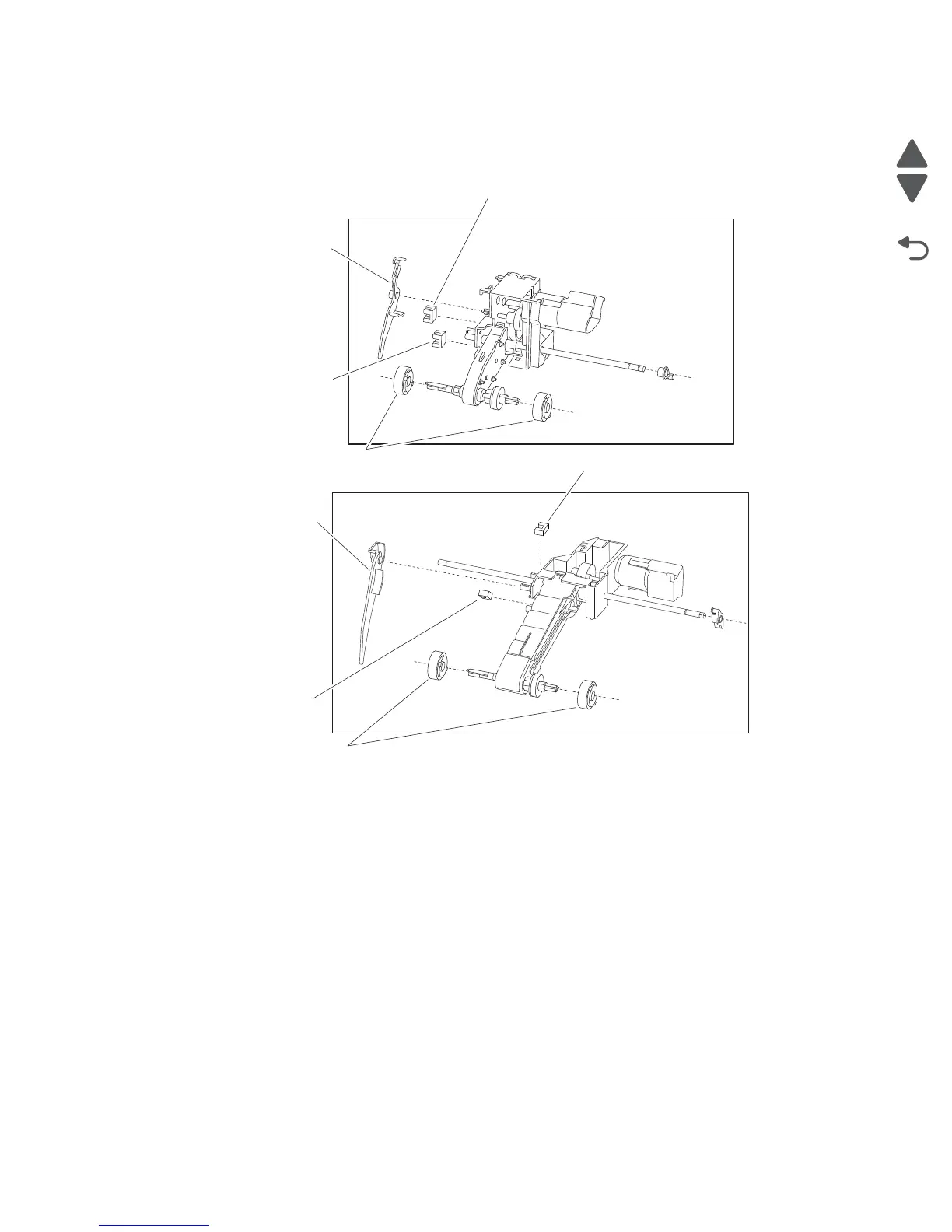

Pick arm assembly
Since all media trays are functionally equivalent in terms of the switch (media size), sensor (media empty),
sensor (media low), only the components of one tray are described here.
The pick arm assembly is a mechanical unit supplying media from the media tray assembly to the printer. The
driving force, from the pick arm drive motor on the pick arm assembly, is transmitted to the two pick rolls to
feed media.
When the pick rolls pick up media, the remaining media decreases, and the media out actuator will lower and
interact with the sensor (media low) and sensor (media empty) to determine the amount of media remaining.
The pick arm assembly (autocompensator) is a paper pick device that generates its own normal force. This
force generation is inherent in the fundamental design of the pick arm. If light media is used, it picks very
gently. If a heavy media is used, it picks very aggressively. No customer adjustments are necessary, therefore
no special trays are needed for card stock or labels. The gearing in the arm is designed so the input torque
from the motor produces a movement about the pivot of the arm. This movement produces a downward force
at the pick rolls. The friction between the pick roll and the paper produces a frictional locking condition. If the
paper is physically held and not allowed to feed, then the motor stalls. Slippage between the roll and the paper
is theoretically impossible. When the motor is energized, the pick rolls are driven down into the stack,
increasing the normal force and drive force until the bending strength of the paper is overcome and the paper
bends and moves up the wear strip.
Sensor (media low)
Sensor (media low)
Media out actuator
Media out actuator
Pick roll assemblies
Pick roll assemblies
Sensor (media empty)
Sensor (media empty)

Lexmark T650 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 45 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 200, 000 pages
Standard Output Capacity	250 sheets
Processor Speed	500 MHz
Connectivity	USB, Ethernet
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Memory	128 MB, expandable to 640 MB
Standard Input Capacity	650 sheets
