Lexmark T650 Series Service Manual

Repair Information 4-35
4062-XXX
Go Back
Previous
Next
Media support removal

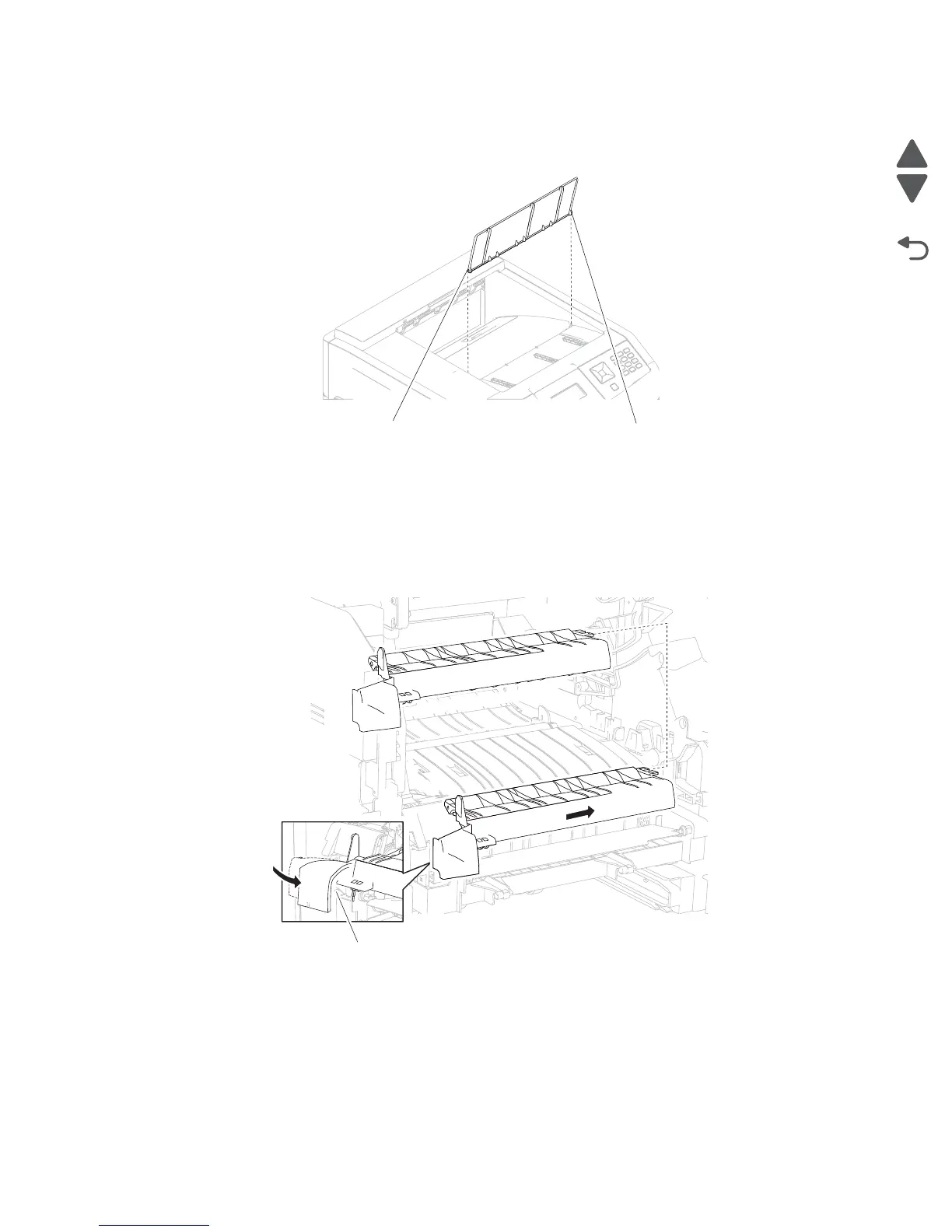

1. Gently detach the two bosses (A) of the media support from the machine.
2. Remove the media support.
Media turn guide removal
1. Remove the MPF tray door assembly. Go to “MPF tray door assembly removal (T650, T652, T654)” on
page 4-40.
2. Gently bend the left side of the media turn guide to release the hook (A) as shown in the picture.
3. While gently bending the media turn guide, move the media turn guide in the direction of the arrow.
4. Remove the media turn guide.
Replacement Warning: When replacing the media turn guide, ensure that it is properly installed, or jamming
will occur.
A
A
A

Lexmark T650 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 45 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 200, 000 pages
Standard Output Capacity	250 sheets
Processor Speed	500 MHz
Connectivity	USB, Ethernet
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Memory	128 MB, expandable to 640 MB
Standard Input Capacity	650 sheets
