Lexmark T650 Series Service Manual

4-34 Service Manual
4062-XXX
Go Back
Previous
Next

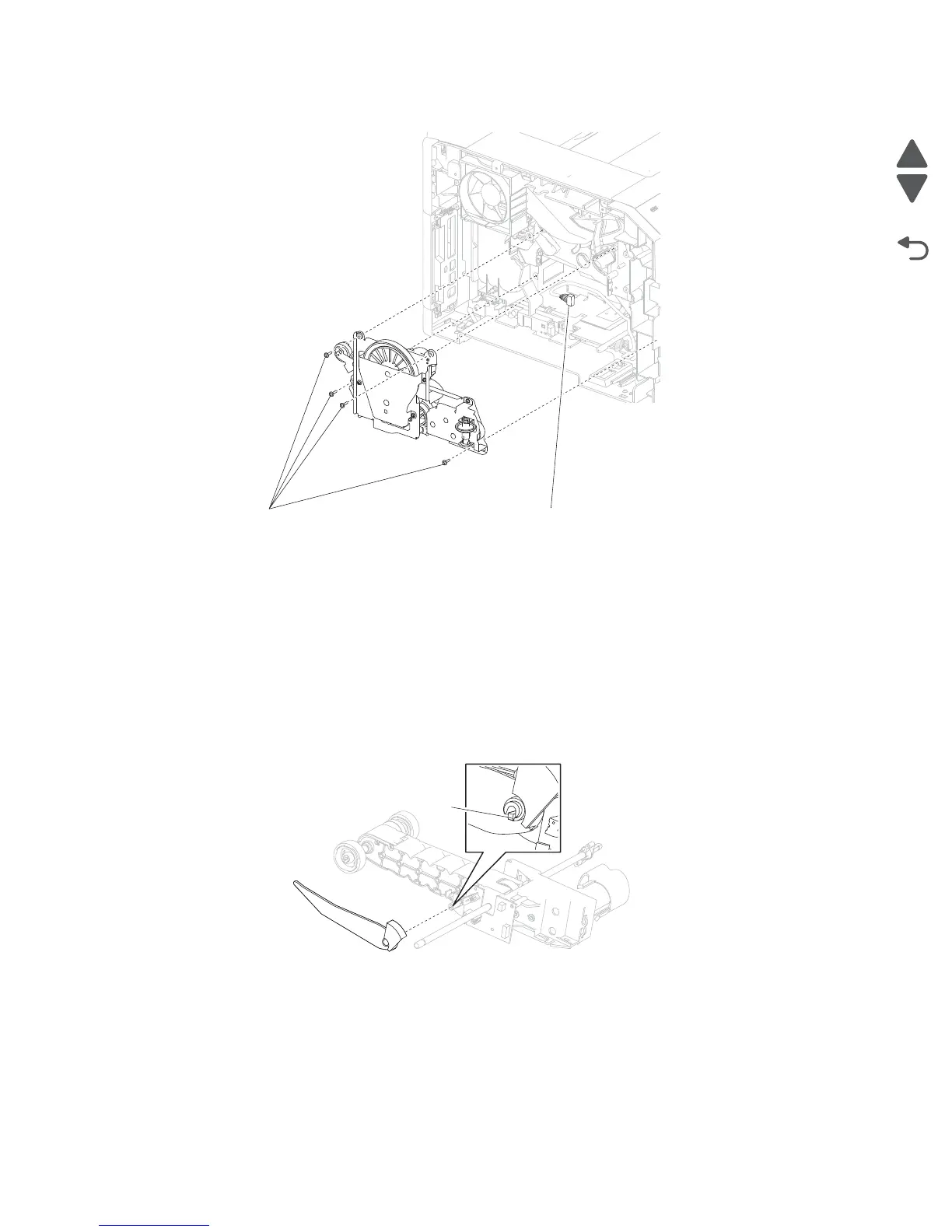

6. Disconnect the connection (B) from the main drive motor assembly.
Replacement Warning: Ensure that all electrical connections are properly replaced.
Replacement Warning: When replacing the main drive motor assembly, ensure that the operator panel door
assembly is in the closed position or the main drive motor assembly will not align properly and damage will
occur.
Replacement Warning: When replacing the main drive motor assembly, ensure that all gears and drive
shafts are properly aligned, or damage will occur.
Media out actuator removal
1. Remove the pick arm assembly. Go to “Pick arm assembly removal” on page 4-54.
2. Release the hook (A) securing the media out actuator to the unit.
3. Remove the media out actuator.
A B
A

Lexmark T650 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 45 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 200, 000 pages
Standard Output Capacity	250 sheets
Processor Speed	500 MHz
Connectivity	USB, Ethernet
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Memory	128 MB, expandable to 640 MB
Standard Input Capacity	650 sheets
