Lexmark T650 Series - Bin Mailbox Static Brush Mylar Assembly Removal

Repair Information 4-93
4062-XXX
Go Back
Previous
Next

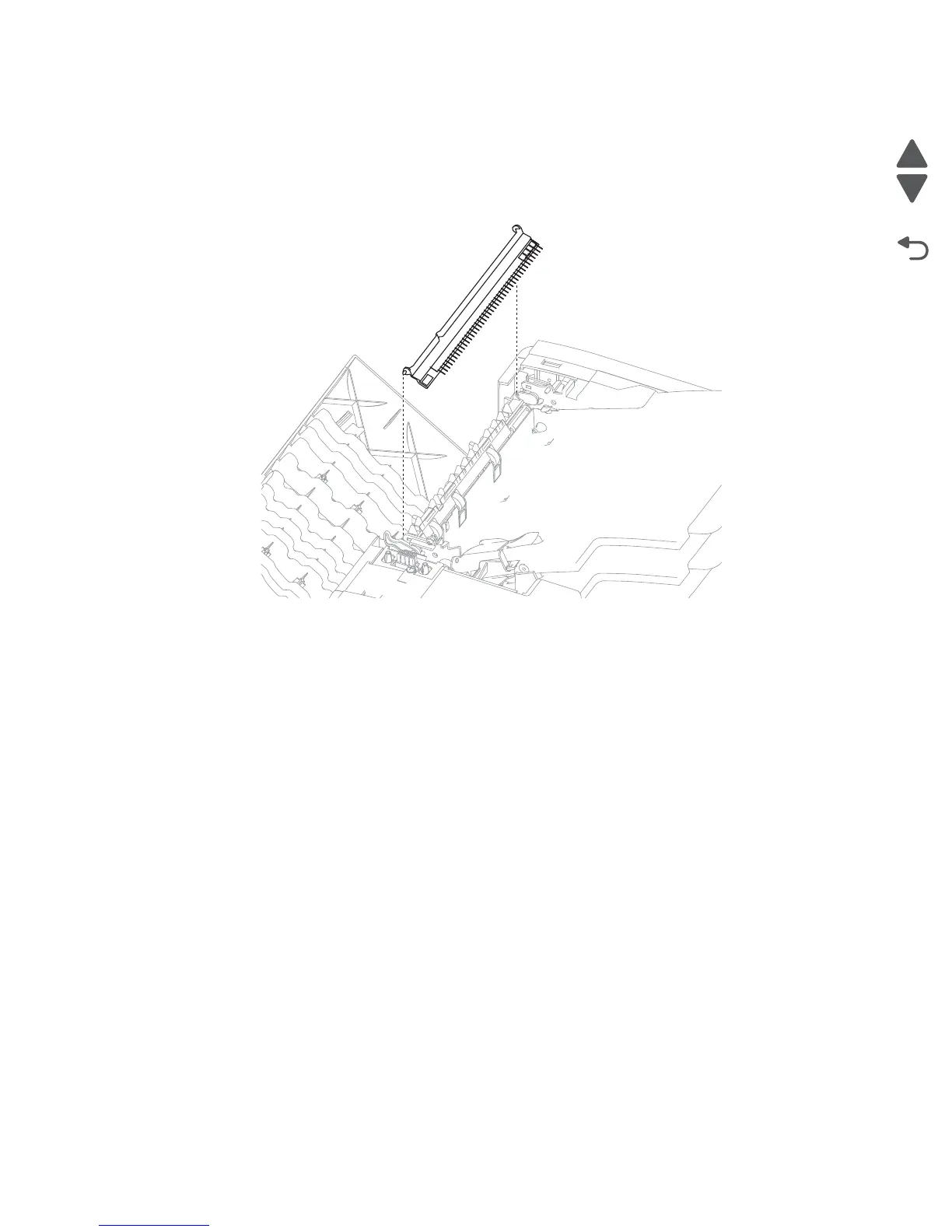

5-bin mailbox static brush mylar assembly removal
1. Remove the 5-bin mailbox top cover. Go to “5-bin mailbox top cover removal” on page 4-88.
2. Carefully flex the 5-bin mailbox static brush mylar assembly to detach the hinges on each side.
3. Remove the 5-bin mailbox static brush mylar assembly.
