Stapler/stacker controller card assembly removal
1. Remove the left cover. Go to “SFP stapler assembly left cover removal” on page 4-174.
2. Disconnect all harnesses to the controller card.

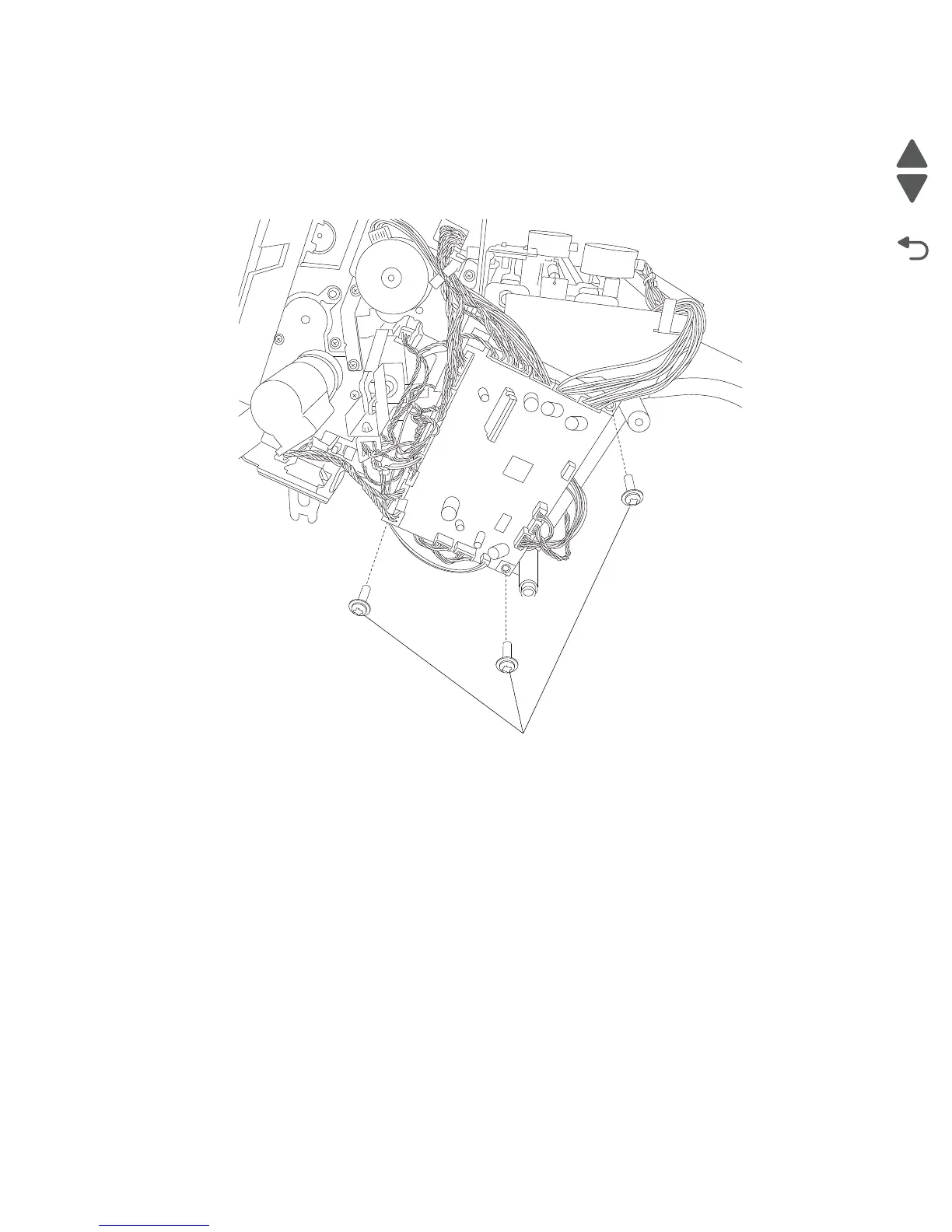

3. Remove the three screws (A) securing the stapler/stacker controller card assembly.
4. Remove the stapler/stacker controller card assembly.
Sensor (HCIT tray raised HP) with cable assembly removal
Note: Carefully remove the base machine from the HCIT tray assembly before proceeding.
1. Remove the HCIT cover, left. Go to “High capacity input tray (HCIT) cover, left removal” on
page 4-122.
A
