Lexmark T650 Series - Lower Interface Cable Assembly Removal

Repair Information 4-157
4062-XXX
Go Back
Previous
Next

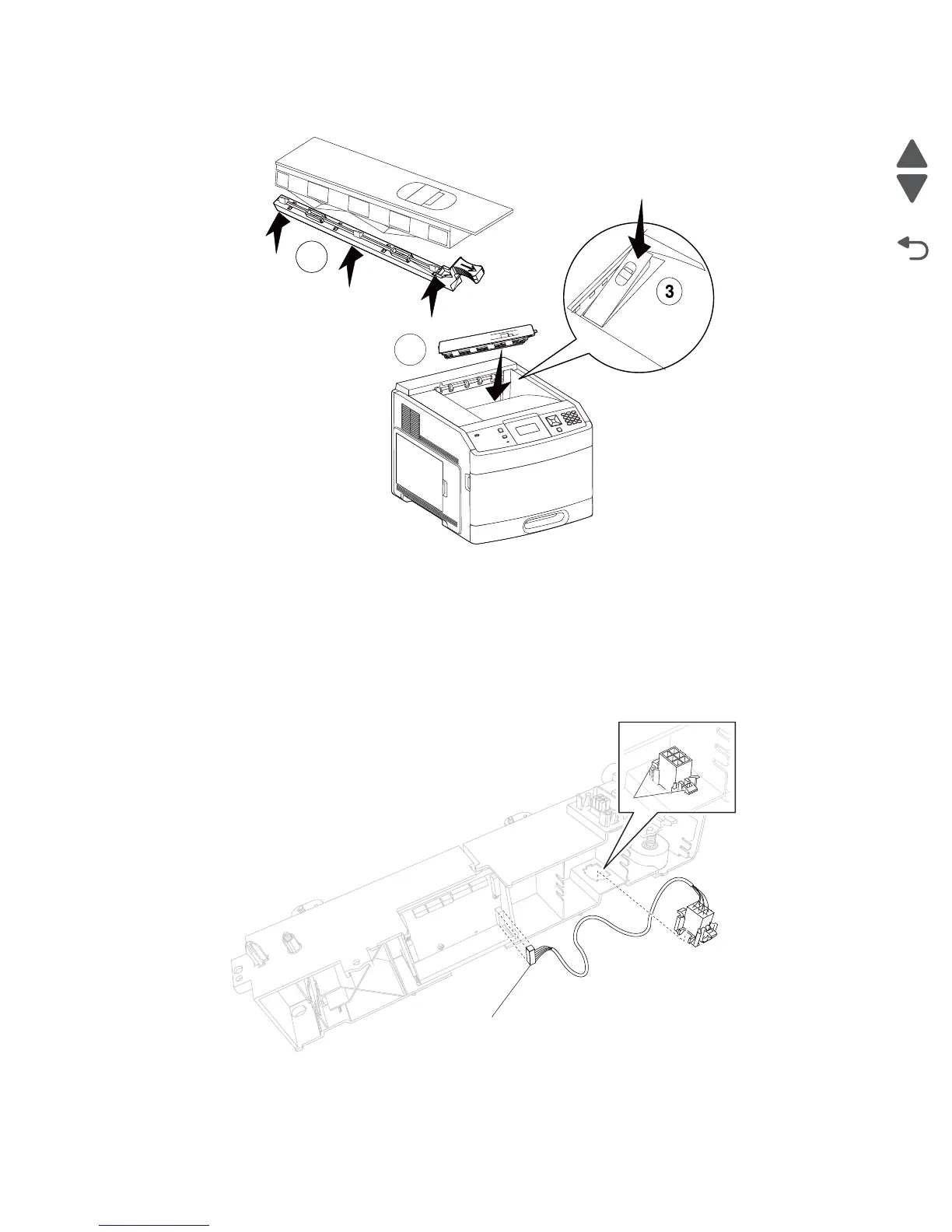

18. Install the new wiper. Turn the printer on.
19. To remove the RFID UHF option, reverse the order of installation.
Lower interface cable assembly removal
1. Remove the 550-sheet frame assembly. Go to “Media size actuator removal” on page 4-160.
2. Disconnect the lower interface cable connector (A) from the 550-sheet controller card.
3. Pinch the options auto connect (B) to separate the lower interface cable assembly from the 550-sheet
frame.
4. Remove the lower interface cable assembly.
1
2
B
A
