Pick arm assembly removal
1. Remove the media tray from the machine.
2. Place the machine on the left or right side.

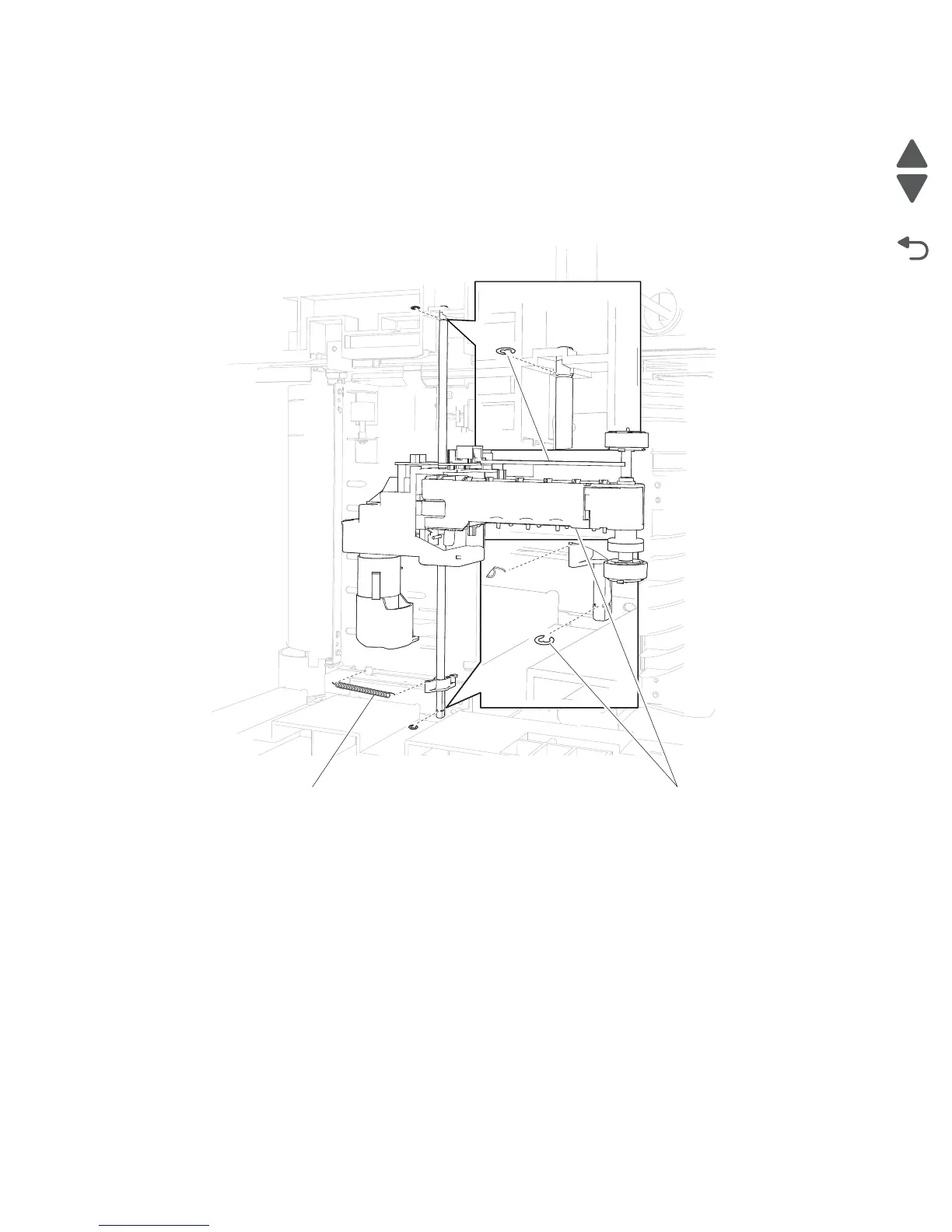

3. Remove the spring (A).
4. Remove the two E-clips (B) securing the pick arm assembly to the machine.
B
A
