Lexmark T650 Series - High Capacity Input Tray (HCIT) Cover, Right Removal

4-120 Service Manual
4062-XXX
Go Back
Previous
Next
High capacity input tray (HCIT) cover, right removal
Note: Carefully remove the base machine from the HCIT tray assembly before proceeding.
Note: Before removing the HCIT right cover, first remove the right side anti-tip latch assembly. Go to “High
capacity input tray (HCIT) anti-tip latch assembly removal” on page 4-123.
1. Remove the High capacity input tray (HCIT) cover, rear. Go to “High capacity input tray (HCIT) cover,
rear removal” on page 4-118.

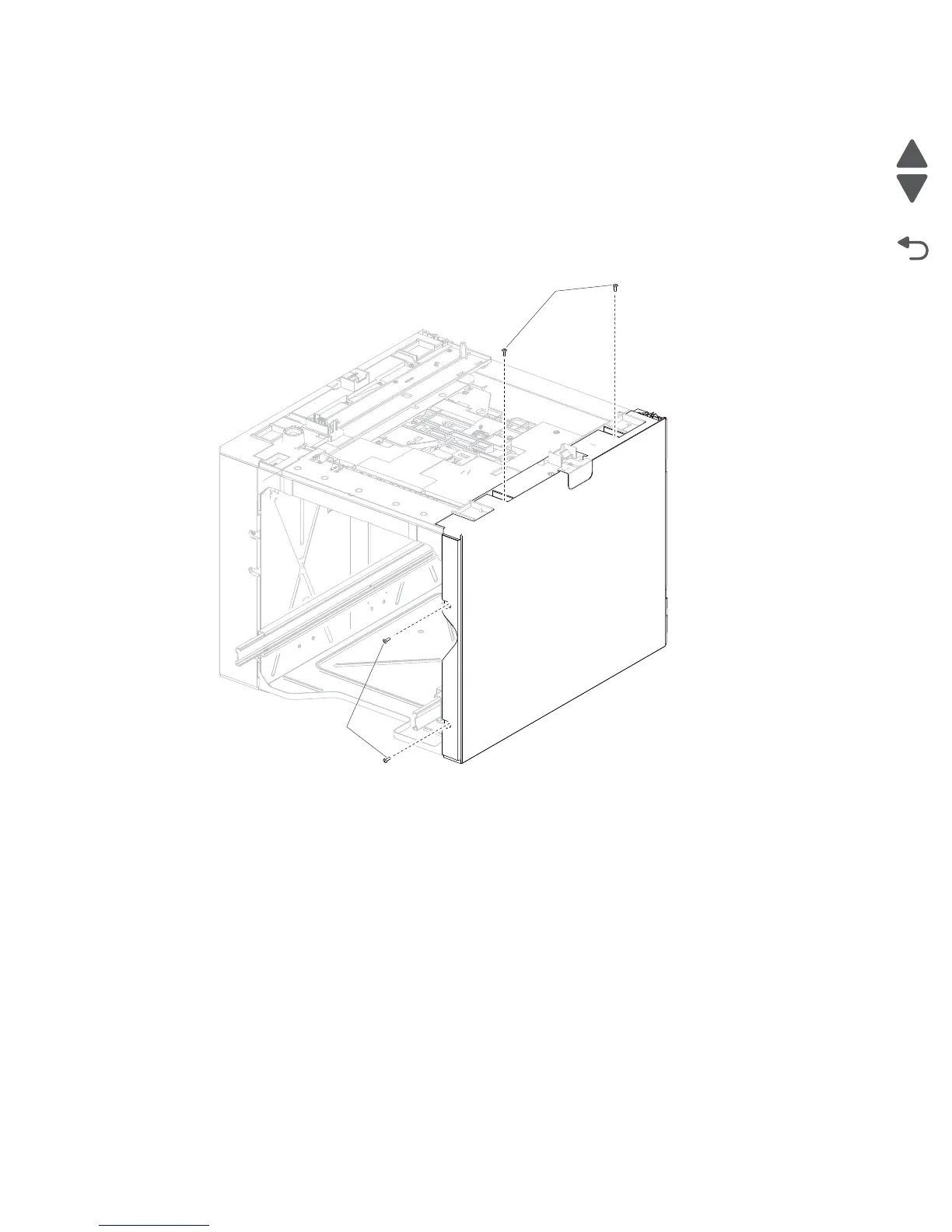

2. Remove the four screws (A) securing the HCIT cover, right to the drawer.
A
A
