Lexmark T650 Series - Sheet Controller Card Assembly Removal

To Next Page

To Previous Page

Repair Information 4-111

4062-XXX

Go Back

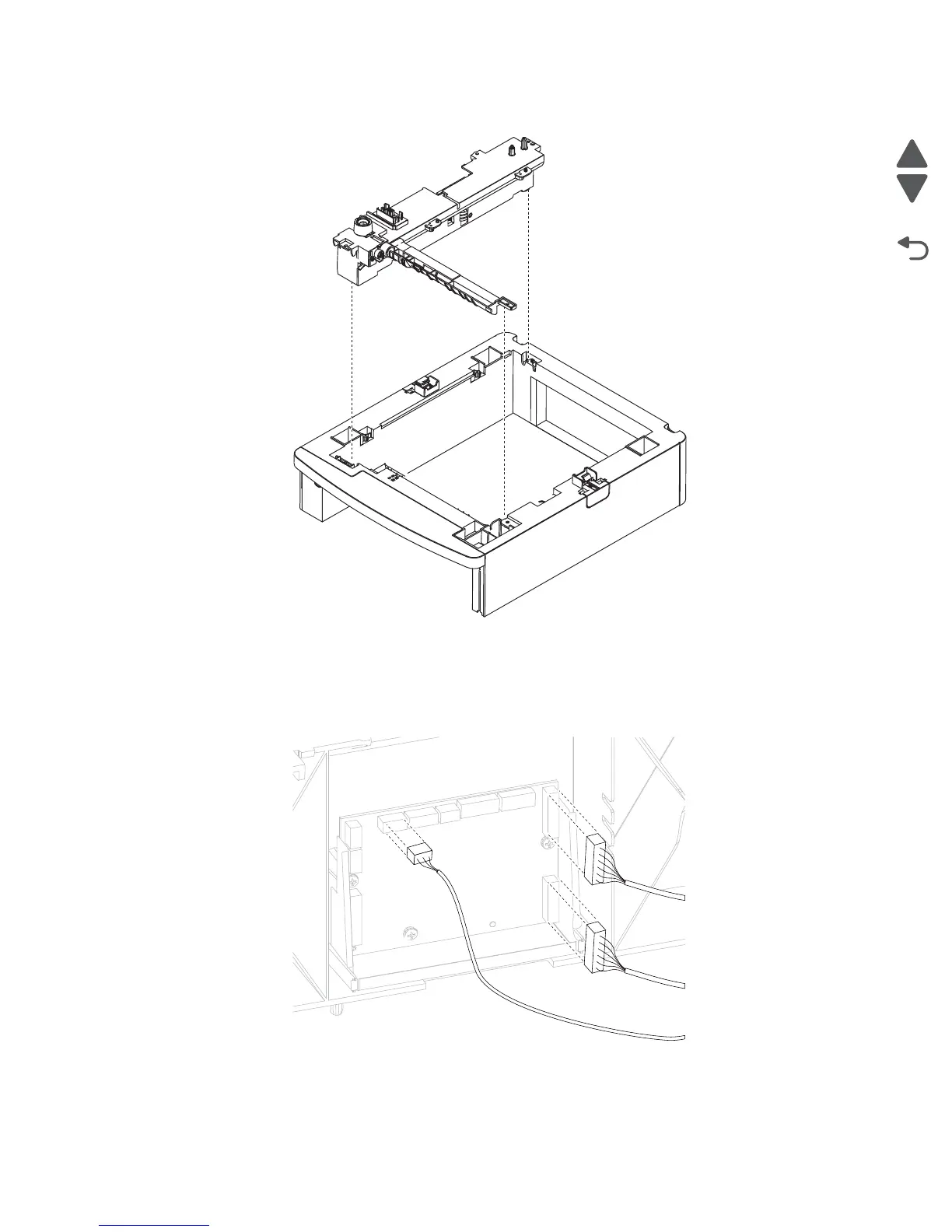

5. Remove the 550-sheet frame assembly.

550-sheet controller card assembly removal

1. Remove the 550-sheet frame assembly. Go to “Media size actuator removal” on page 4-160.

2. Disconnect the three connectors from the 550-sheet controller card assembly.
