4-198 Service Manual

4062-XXX

Go Back

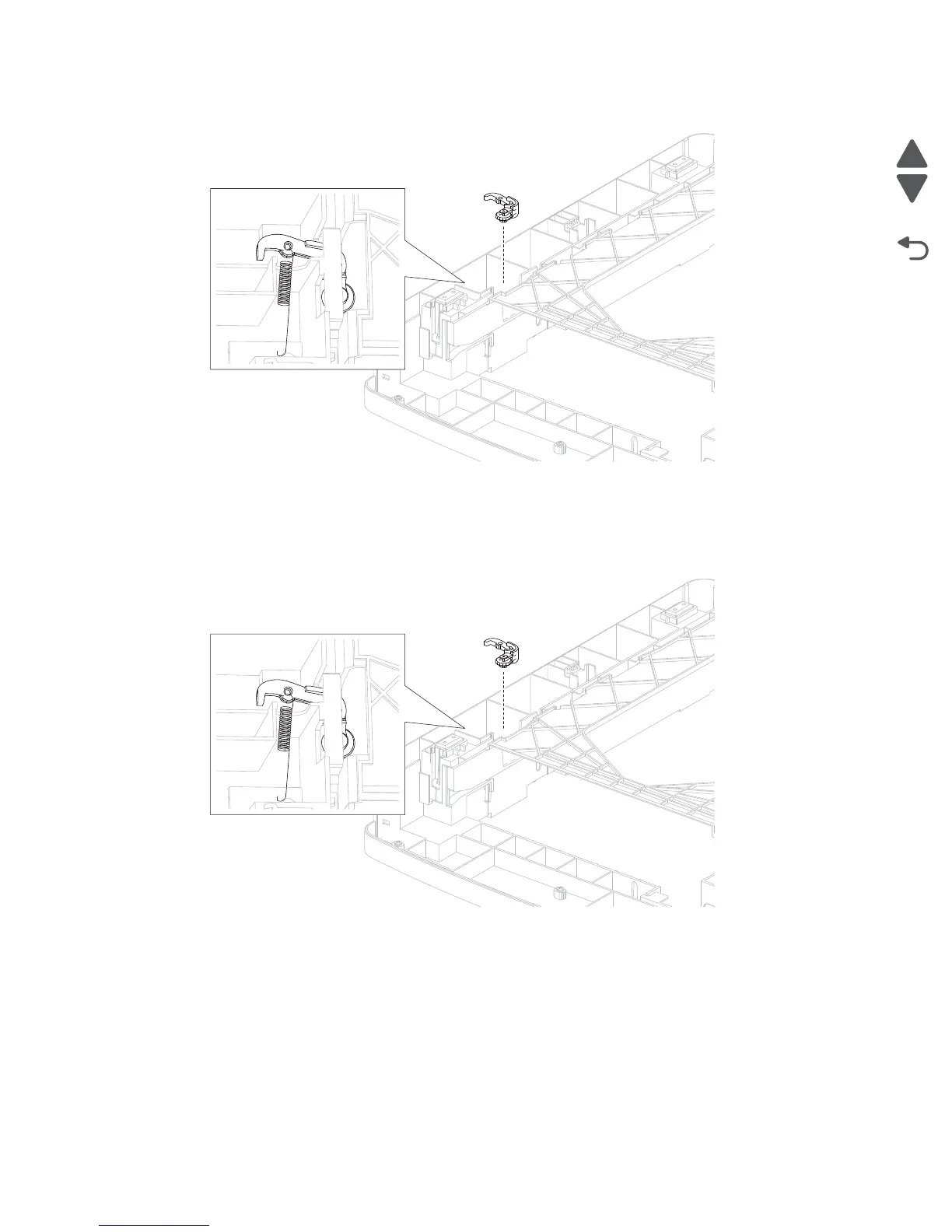

2. Remove the tray roller catch assembly from the drawer.

Tray roller catch assembly removal

1. Remove the media tray catch spring. Go to “Media tray catch spring removal” on page 4-159.

2. Remove the tray roller catch assembly from the drawer.
