Lexmark T650 Series - Side Cover, Left Removal (T650)

4-64 Service Manual
4062-XXX
Go Back
Previous
Next

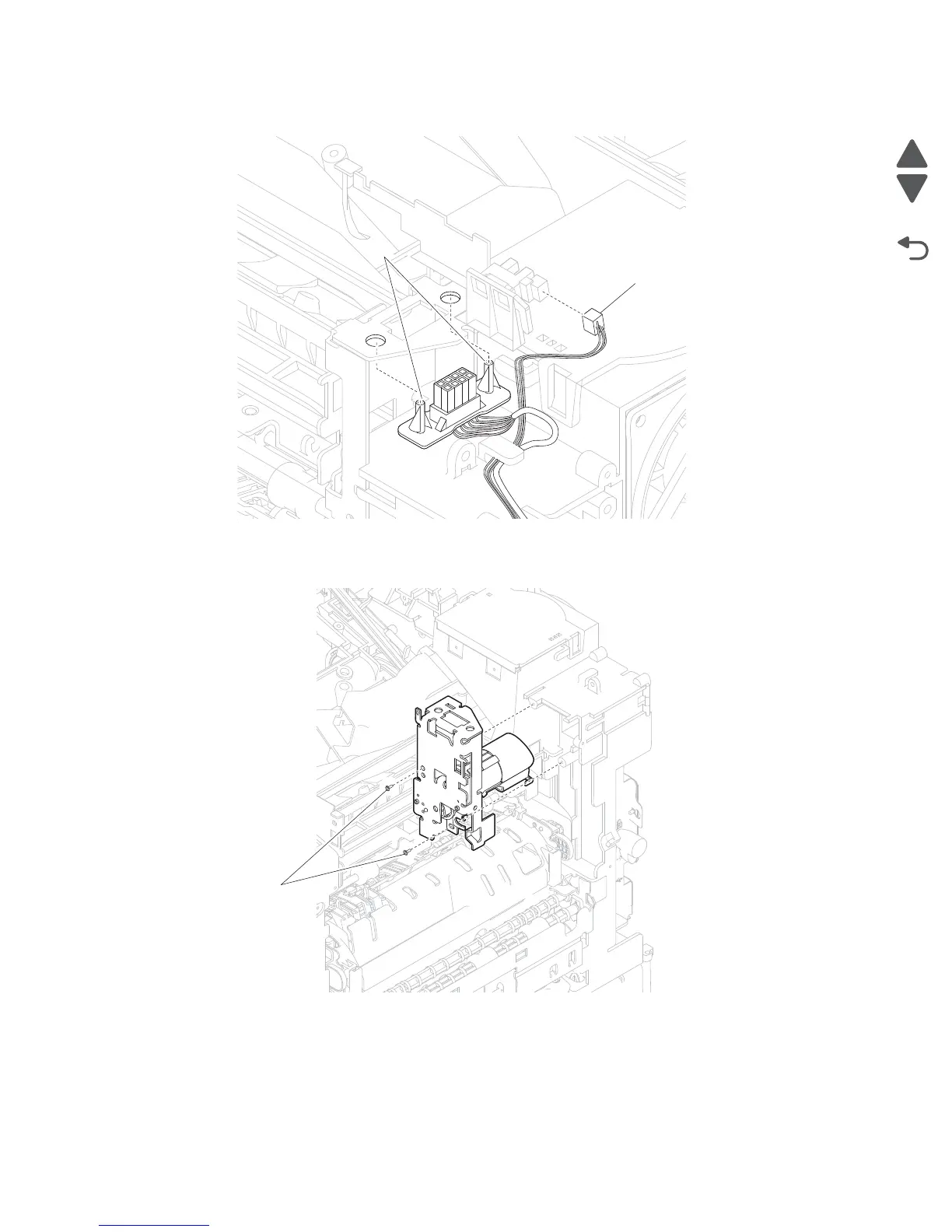

6. Release the hooks (D) securing the output option interface cable assembly to the machine.
7. Detach the output option cable assembly.
8. Remove the two screws (E) securing the redrive motor assembly to the machine.
9. Remove the redrive motor assembly.
Side cover, left removal (T650)
1. Open the MPF tray door assembly.
2. Open the operator panel door assembly.
D
C
E
