Lexmark T650 Series - Bin Mailbox Sensor (Media bin Empty) Removal

Repair Information 4-91
4062-XXX
Go Back
Previous
Next

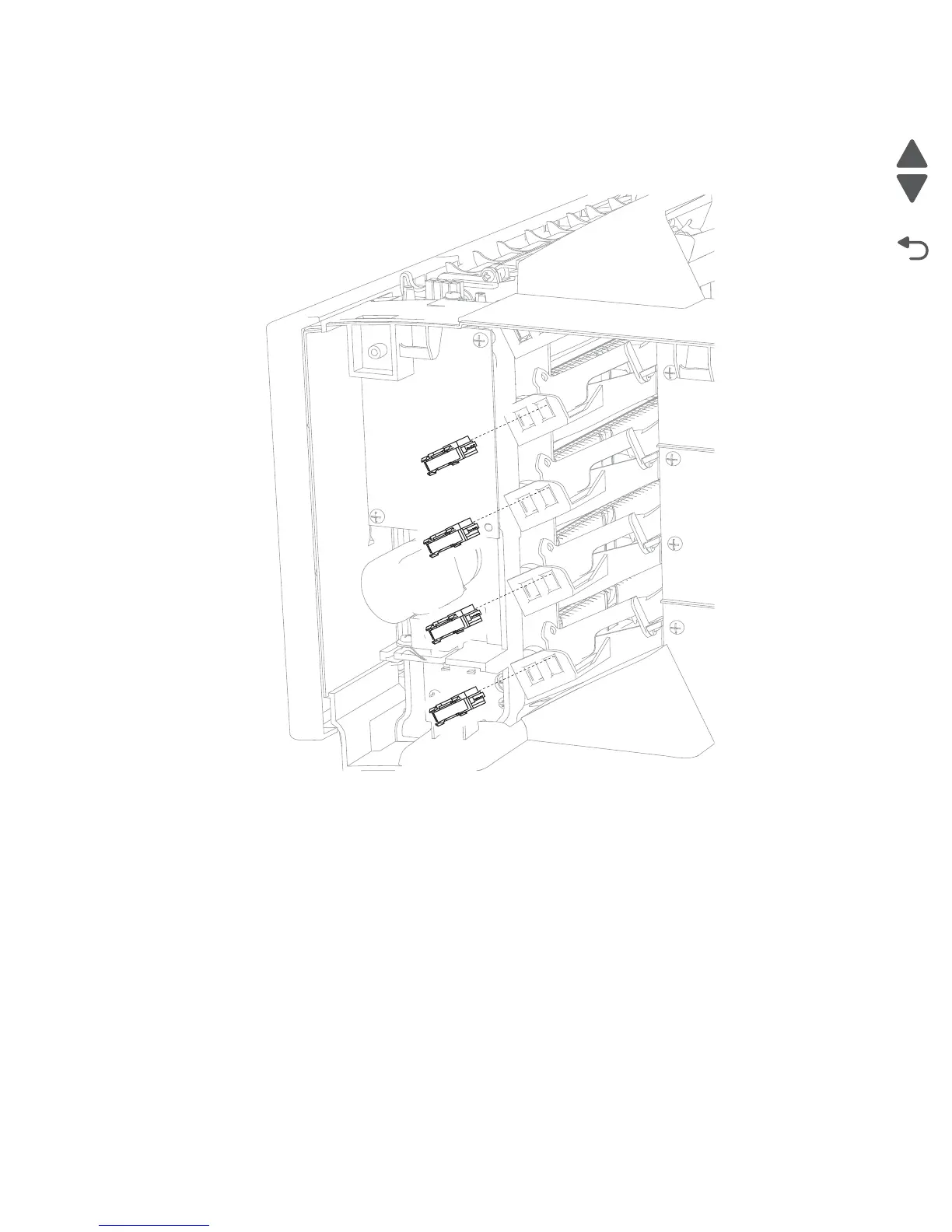

5-bin mailbox sensor (media bin empty) removal
1. Remove the 5-bin mailbox left outer cover. Go to “5-bin mailbox left outer cover removal” on page 4-85.
2. Release the connecting tabs on the sensor (media bin empty) and remove from its bracket.
3. Disconnect the harness from the sensor (media bin empty).
