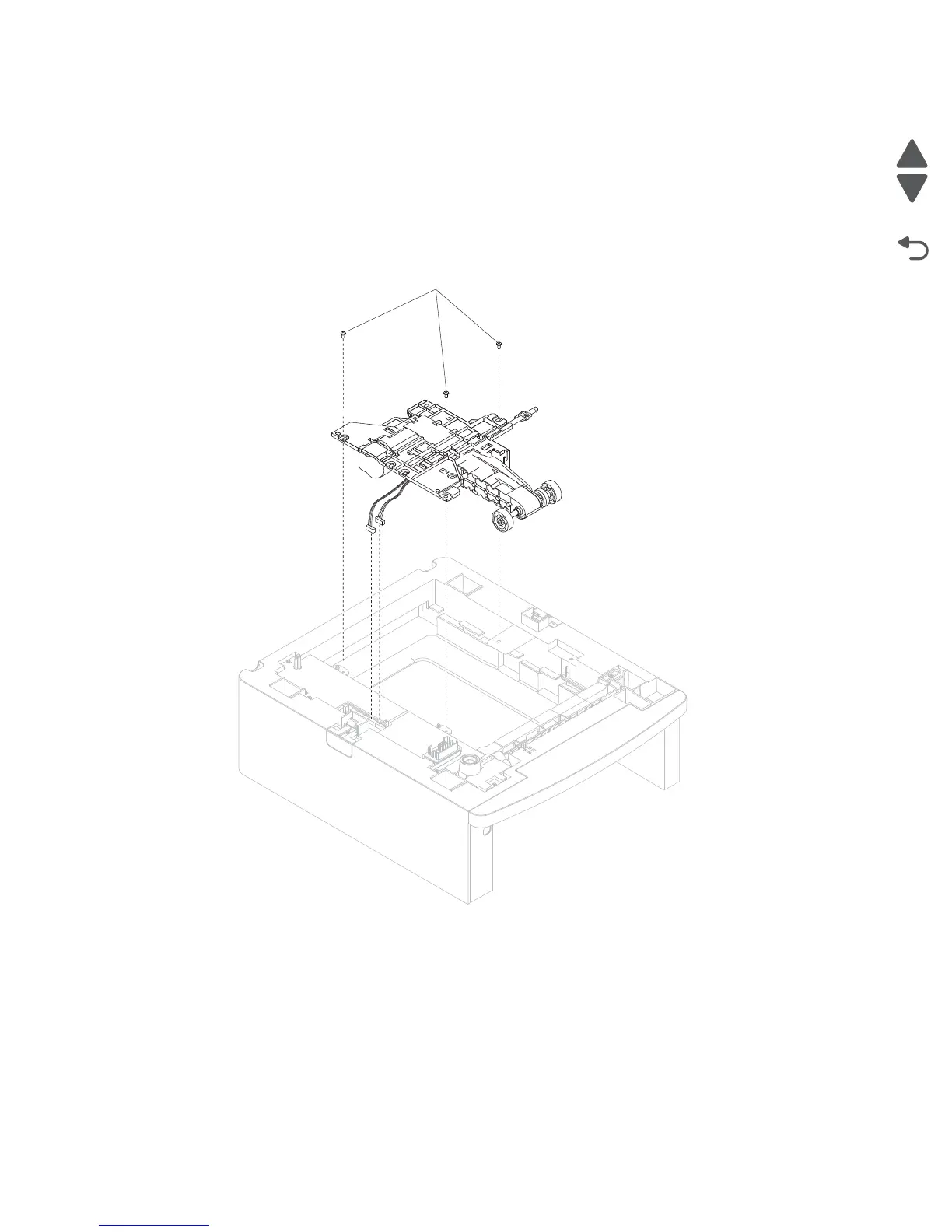

550-sheet pick arm bracket assembly removal
1. Remove the 550-sheet media tray assembly. Go to “Media out actuator removal (models T652 and
T654)” on page 4-159.
2. Remove the two 550-sheet pick arm bracket assembly cable connectors (A) from the 550-sheet controller
card assembly.
3. Detach the 550-sheet bellcrank recoil spring (B) from the drawer.
4. Remove the four screws (C) securing the 550-sheet pick arm bracket assembly to the drawer.
5. Remove the 550-sheet pick arm bracket assembly.
A

Lexmark T650 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 45 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 200, 000 pages
Standard Output Capacity	250 sheets
Processor Speed	500 MHz
Connectivity	USB, Ethernet
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Memory	128 MB, expandable to 640 MB
Standard Input Capacity	650 sheets
