4-166 Service Manual
4062-XXX

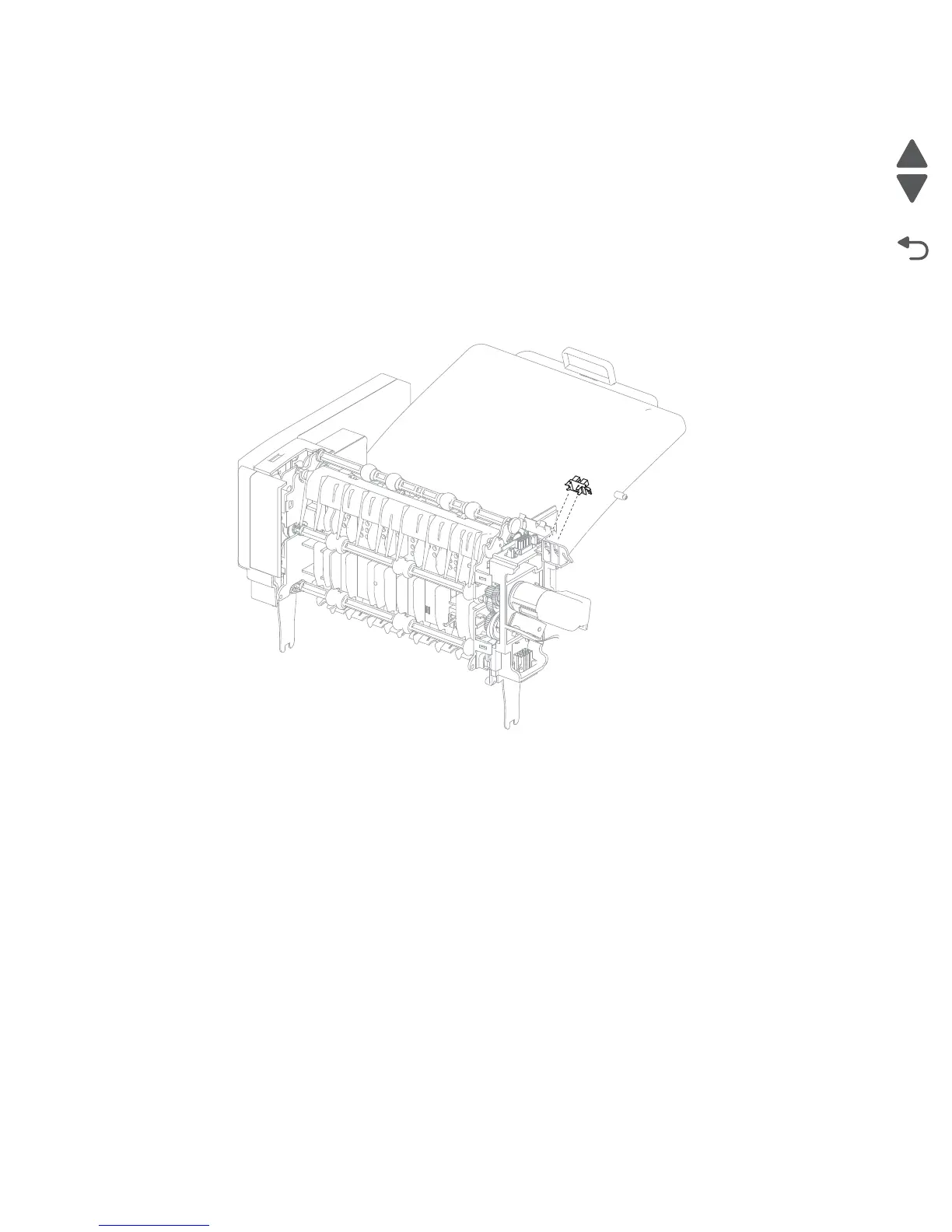

Output expander sensors (media bin full) assembly removal
1. Remove the output bin left inner cover. Go to “Output expander left inner cover removal” on
page 4-163.
2. Untwist the sensor harnesses from the cable guide.
3. Release the tabs securing the sensors (media bin full) and remove.
Replacement Note: Be sure to replace the sensors in the correct order. Make sure their positions are not
switched.
4. Remove the output expander controller card cover panel. Go to “Output expander controller card cover
panel removal” on page 4-167.
5. Disconnect the sensor (media bin full) harness from the controller card and remove.
