Repair Information 4-7
4062-XXX
Removals
Note: To replace a removed part, reverse the order of removal unless noted otherwise.

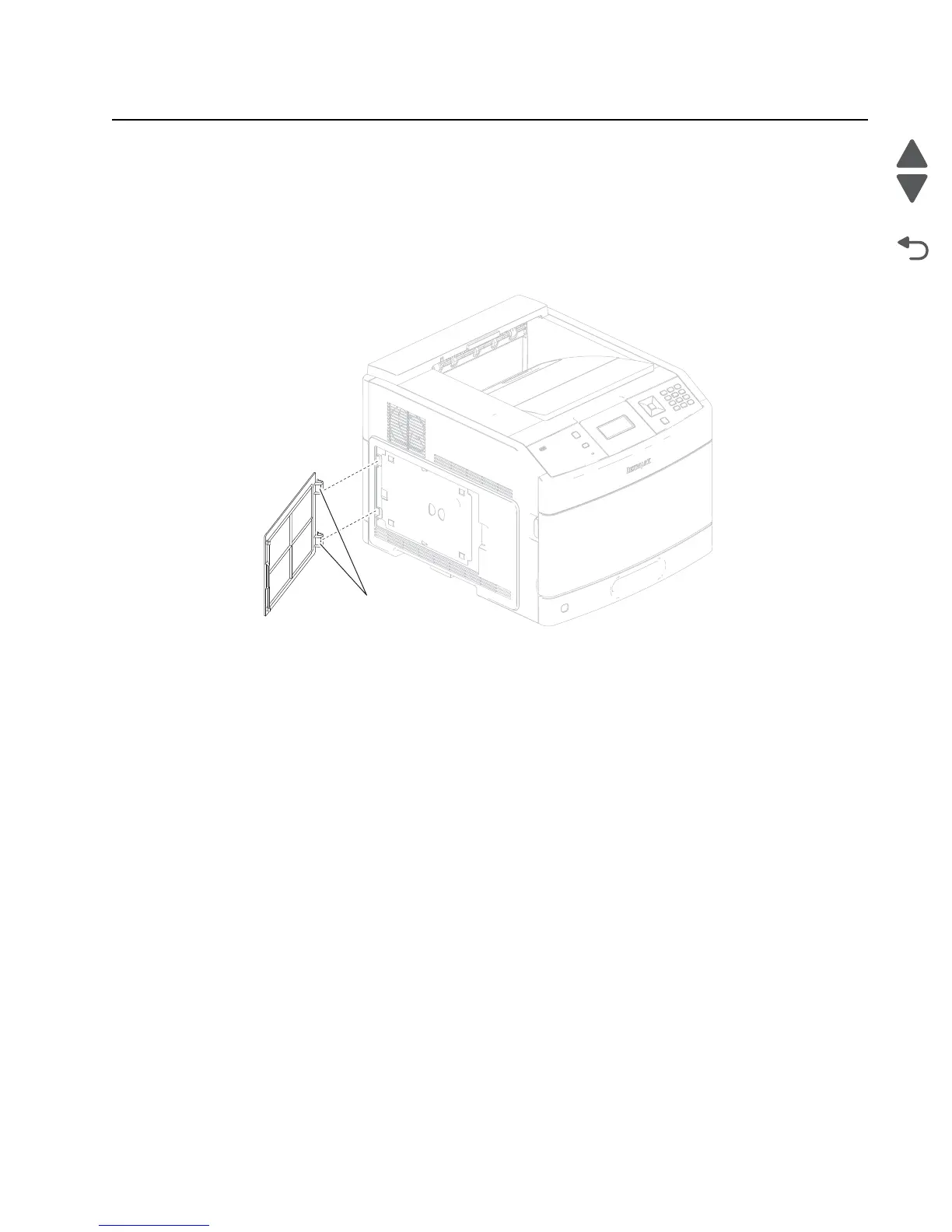

Access door removal
1. Open the access door.
2. Gently detach the two hinges (A) of the access door from the machine.
3. Remove the access door.
Alignment assembly removal
WARNING: When replacing the alignment assembly, ensure that the media skew is properly adjusted using
the adjuster screw (C), or jamming will occur. Go to “Alignment assembly adjustment” on page 4-4.
1. Remove the side cover, left. Go to “Side cover, left removal (T650)” on page 4-64 or “Side cover, left
removal (T652, T654, T656)” on page 4-66.
