Connection access cover, rear removal

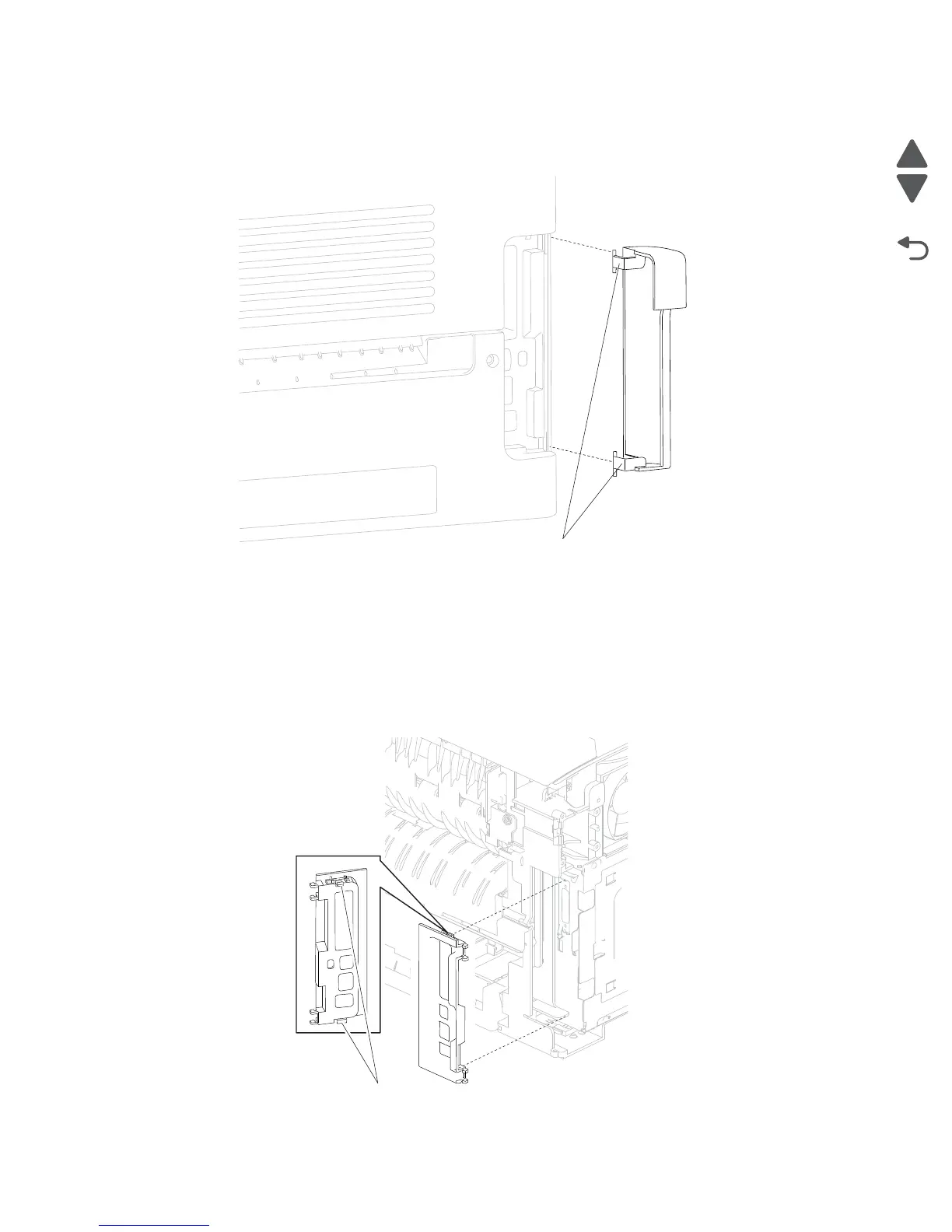

1. Gently detach the two hinges (A) of the connection access cover, rear from the machine.
2. Remove the connection access cover, rear.
Connection bezel assembly, rear removal (T650)
1. Remove the side cover, left. Go to “Side cover, left removal (T650)” on page 4-64.
2. Remove the cover assembly, rear lower. Go to “Cover assembly, rear lower removal (T650)” on
page 4-12.
3. Release the two hooks (A) securing the connection bezel assembly, rear to the machine.
4. Remove the connection bezel assembly, rear.
A
A
