Lexmark T650 Series Service Manual

4-22 Service Manual
4062-XXX
Go Back
Previous
Next
3. Swing the fuser access door assembly away from the machine.
4. Unsnap the fuser access door assembly from the machine.
5. Remove the fuser access door assembly.
Fuser drive release linkage removal
1. Remove the system card assembly. Go to “System card assembly removal” on page 4-75.

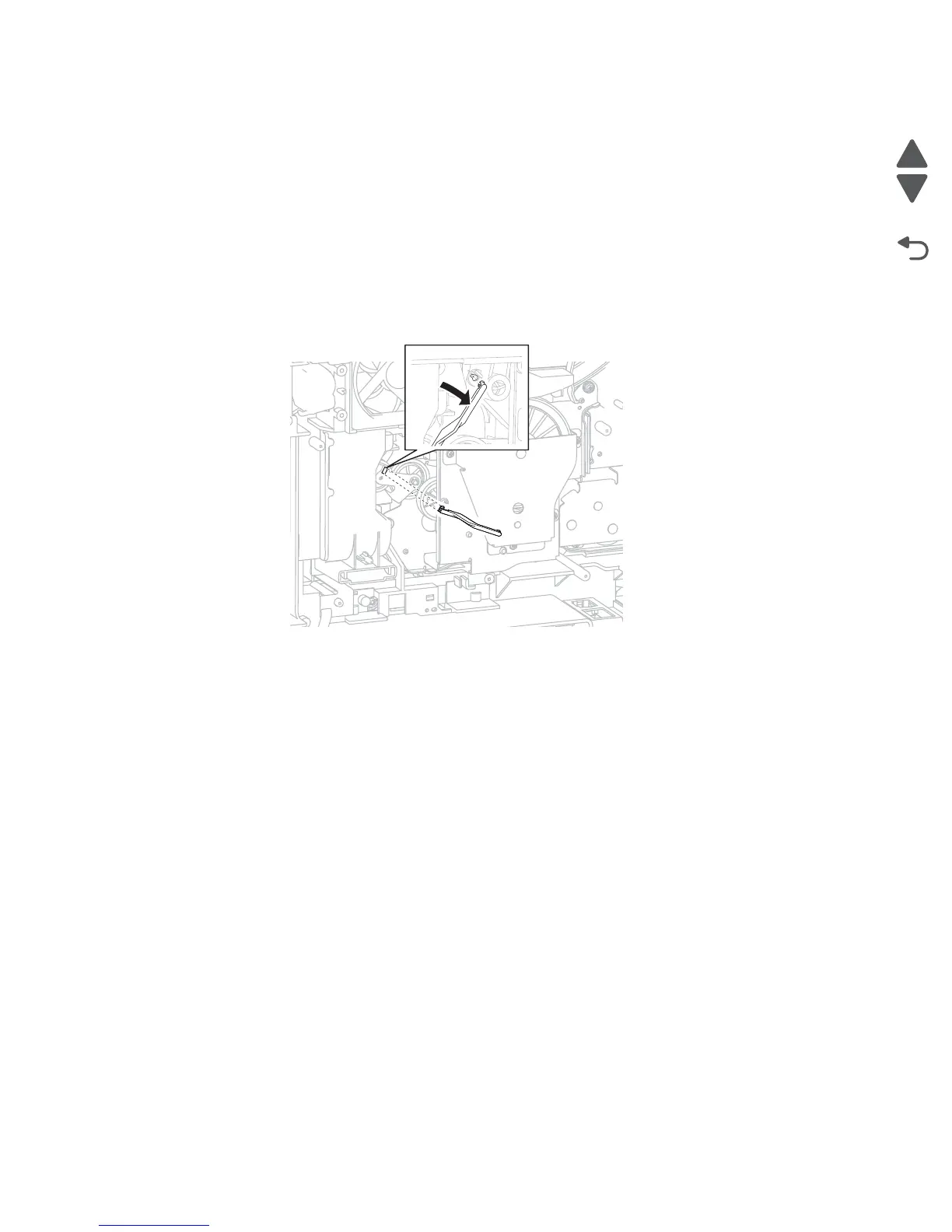

2. Gently unsnap the upper end of the fuser drive release linkage from the machine.
3. Rotate the fuser drive release linkage 90° to release the lower end of the fuser drive release linkage from
the machine.
4. Remove the fuser drive release linkage.
Fuser unit assembly removal
1. Remove the fuser wiper cover assembly. Go to “Fuser wiper cover assembly removal” on page 4-23.
2. Remove the door assembly, rear. Go to “Door assembly, rear removal” on page 4-14.
3. Open the fuser access door.
4. Press the two buttons (A) on the fuser unit assembly to release it from the machine.

Lexmark T650 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 45 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 200, 000 pages
Standard Output Capacity	250 sheets
Processor Speed	500 MHz
Connectivity	USB, Ethernet
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Memory	128 MB, expandable to 640 MB
Standard Input Capacity	650 sheets
