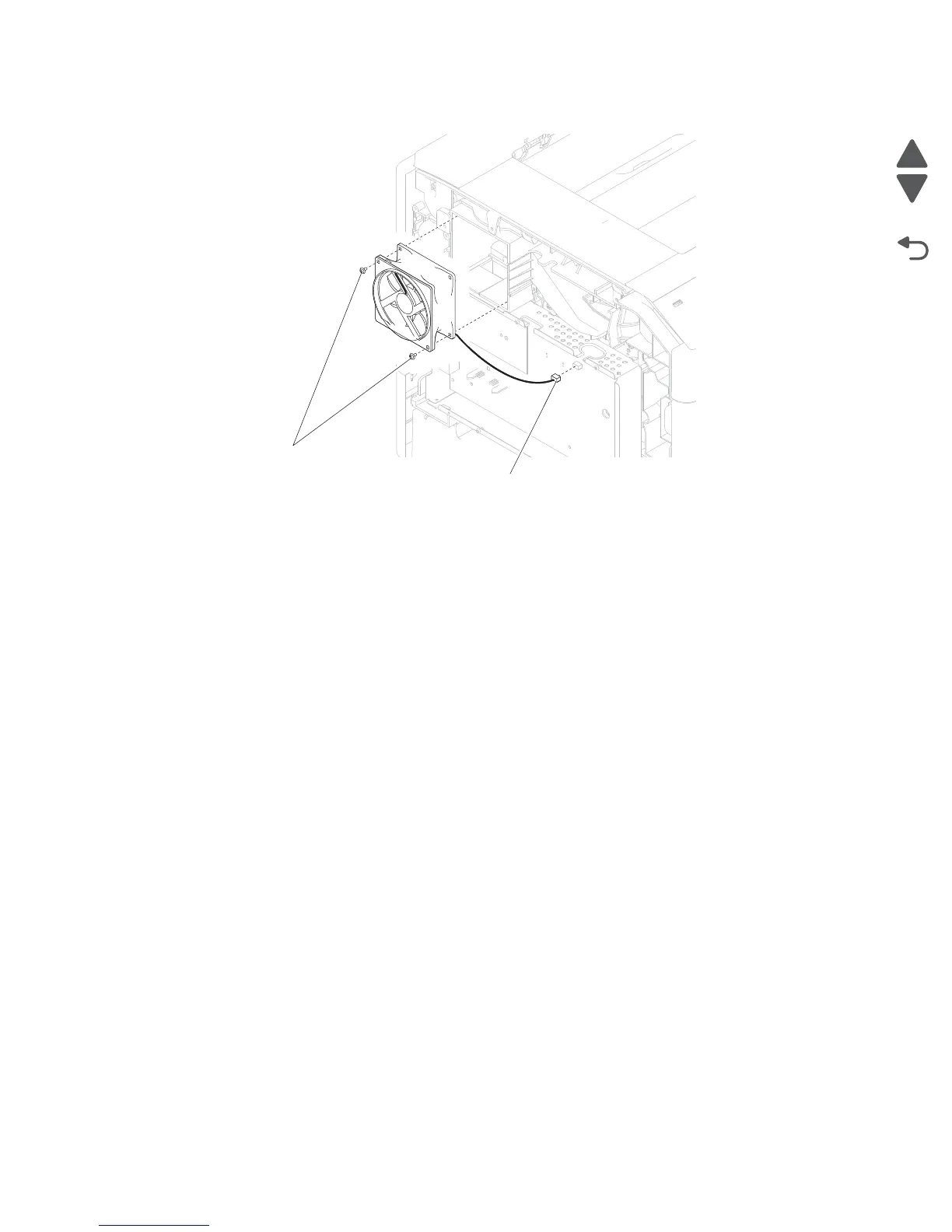

7. Remove the fuser cooling fan connection (C).
Main drive motor assembly removal
1. Remove the system card assembly. Go to “System card assembly removal” on page 4-75.
2. Remove the fuser drive release linkage. Go to “Fuser drive release linkage removal” on page 4-22.
3. Close the operator panel door assembly.
4. Remove the four screws (A) securing the main drive motor assembly to the machine.
5. Gently remove the main drive motor assembly.
B
C
