Lexmark T650 Series - Media out Actuator Removal (Models T652 and T654)

Repair Information 4-159
4062-XXX
Go Back
Previous
Next

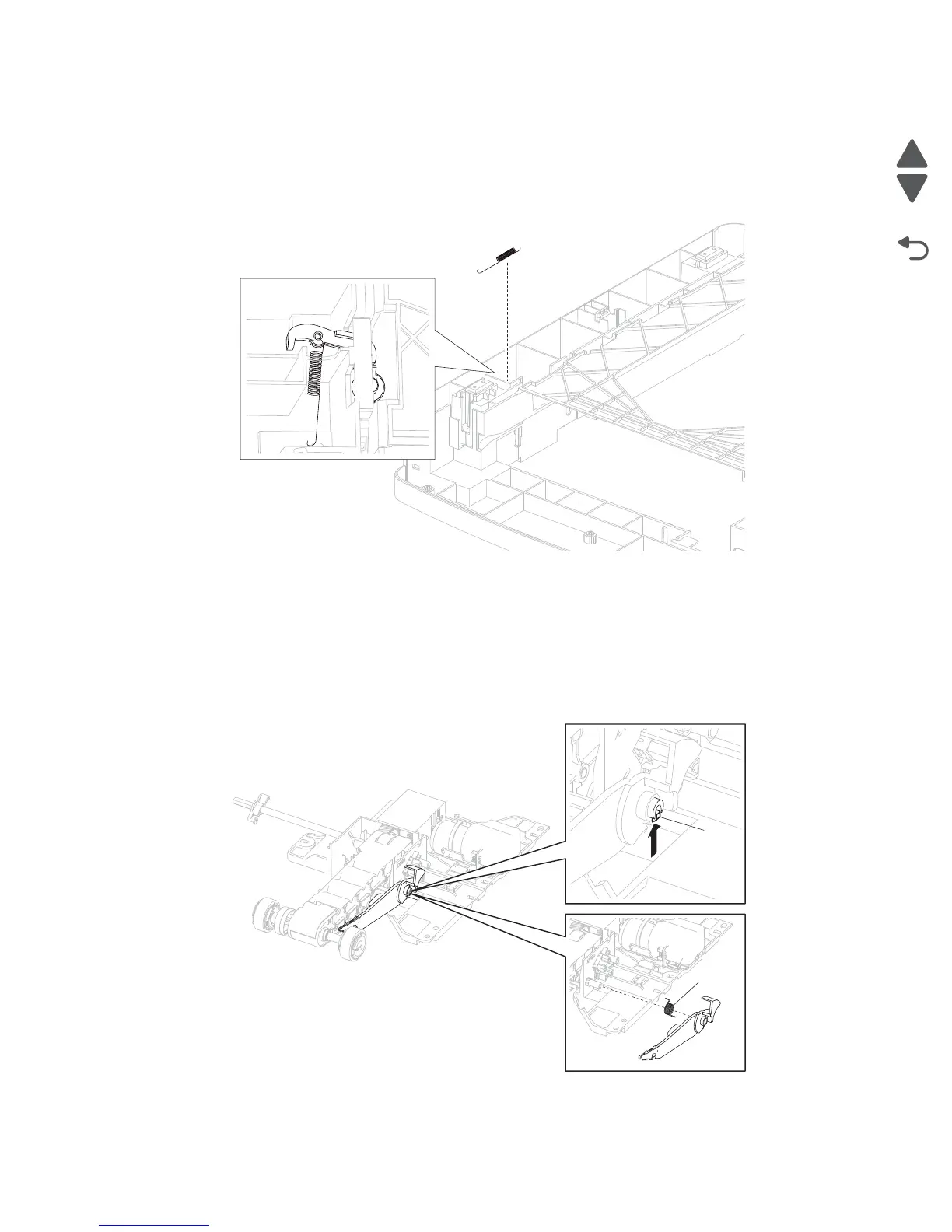

Media tray catch spring removal
1. Remove the 250-sheet frame assembly. Go to “250-sheet frame assembly removal” on page 4-104.
2. Turn the drawer upside down to access the media tray catch spring.
3. Release the media tray catch spring.
Media out actuator removal (models T652 and T654)
1. Remove the 550-sheet pick arm bracket assembly. Go to “550-sheet pick arm bracket assembly
removal” on page 4-108.
2. Release the hook (A) securing the media out actuator with spring to the 550-sheet pick arm bracket
assembly.
3. Detach the spring (B) from the media out actuator.
A
B
