Lexmark T650 Series Service Manual

4-72 Service Manual
4062-XXX
Go Back
Previous
Next

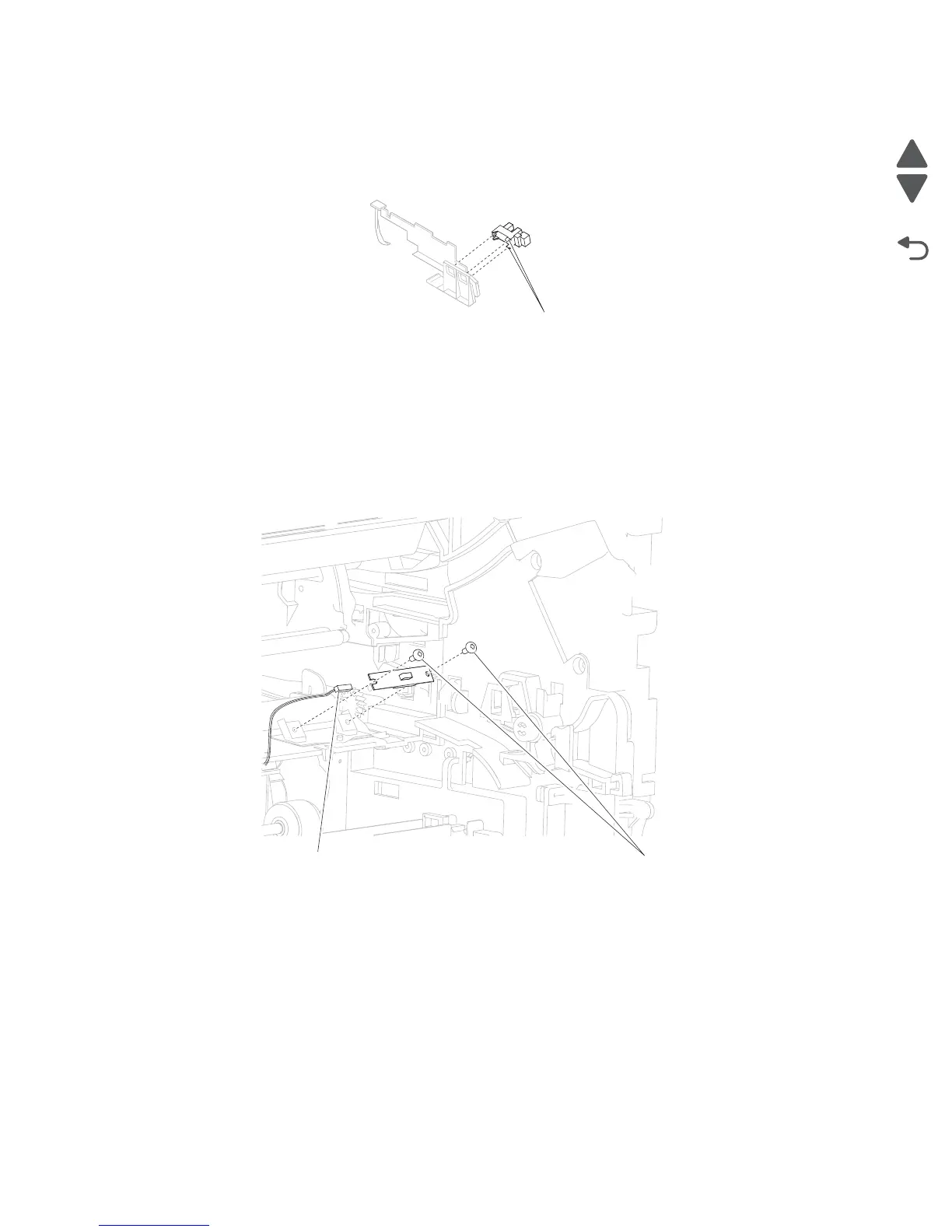

Sensor (standard bin exit) removal
1. Remove standard bin actuator assembly. Go to “Sensor (standard bin exit) removal” on page 4-72.
2. Release the hooks (A) securing the sensor (standard bin exit) to the assembly.
3. Remove the sensor (standard bin exit).
Sensor (toner density) removal
1. Remove the sensor shield assembly. Go to “Sensor shield assembly removal” on page 4-71.
2. Remove the two screws (A) securing the sensor (toner density) to the machine.
3. Remove the sensor (toner density).
4. Disconnect the connection (B) to the sensor (toner density).
Standard bin actuator assembly removal
1. Remove the laser cover. Go to “Laser cover removal” on page 4-26.
2. Disconnect the connection (A) from the standard bin actuator assembly.
A
AB

Lexmark T650 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 45 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 200, 000 pages
Standard Output Capacity	250 sheets
Processor Speed	500 MHz
Connectivity	USB, Ethernet
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Memory	128 MB, expandable to 640 MB
Standard Input Capacity	650 sheets
