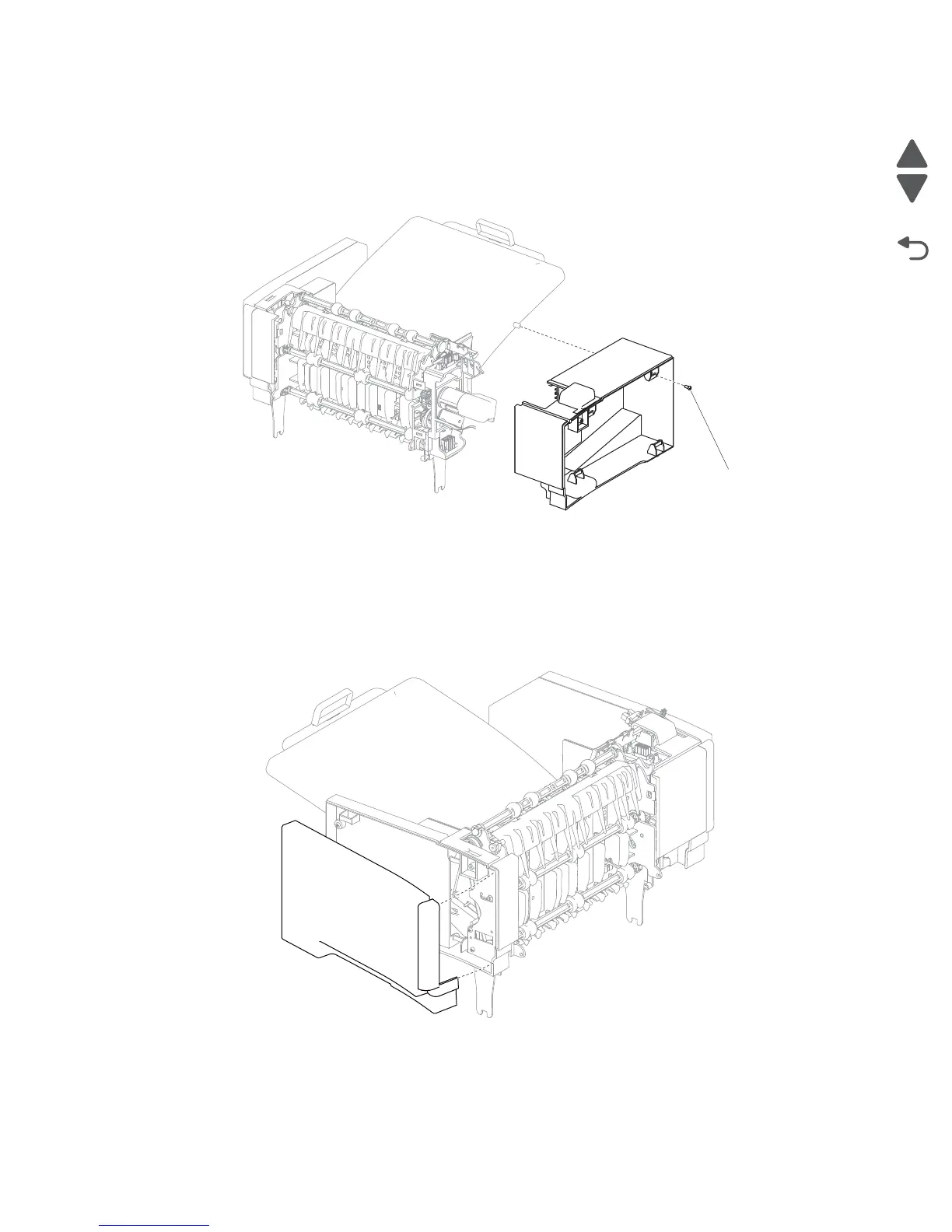

Output expander left inner cover removal
1. Remove the output expander left outer cover. Go to “Output expander left outer cover removal” on
page 4-162.
2. Remove the screw (A) securing the left inner cover.
3. Holding the rear of the left inner cover, pull out while simultaneously separating it from the option.
Output expander right outer cover removal
1. Remove the output expander rear door assembly. Go to “Output expander rear door assembly removal”
on page 4-162.
2. Grasp the lower rear corner of the right outer cover and pull out to remove.
A
