4-102 Service Manual
4062-XXX
250-sheet media tray assembly removal
Note: This removal procedure can be applied to 250-sheet option drawer assembly.

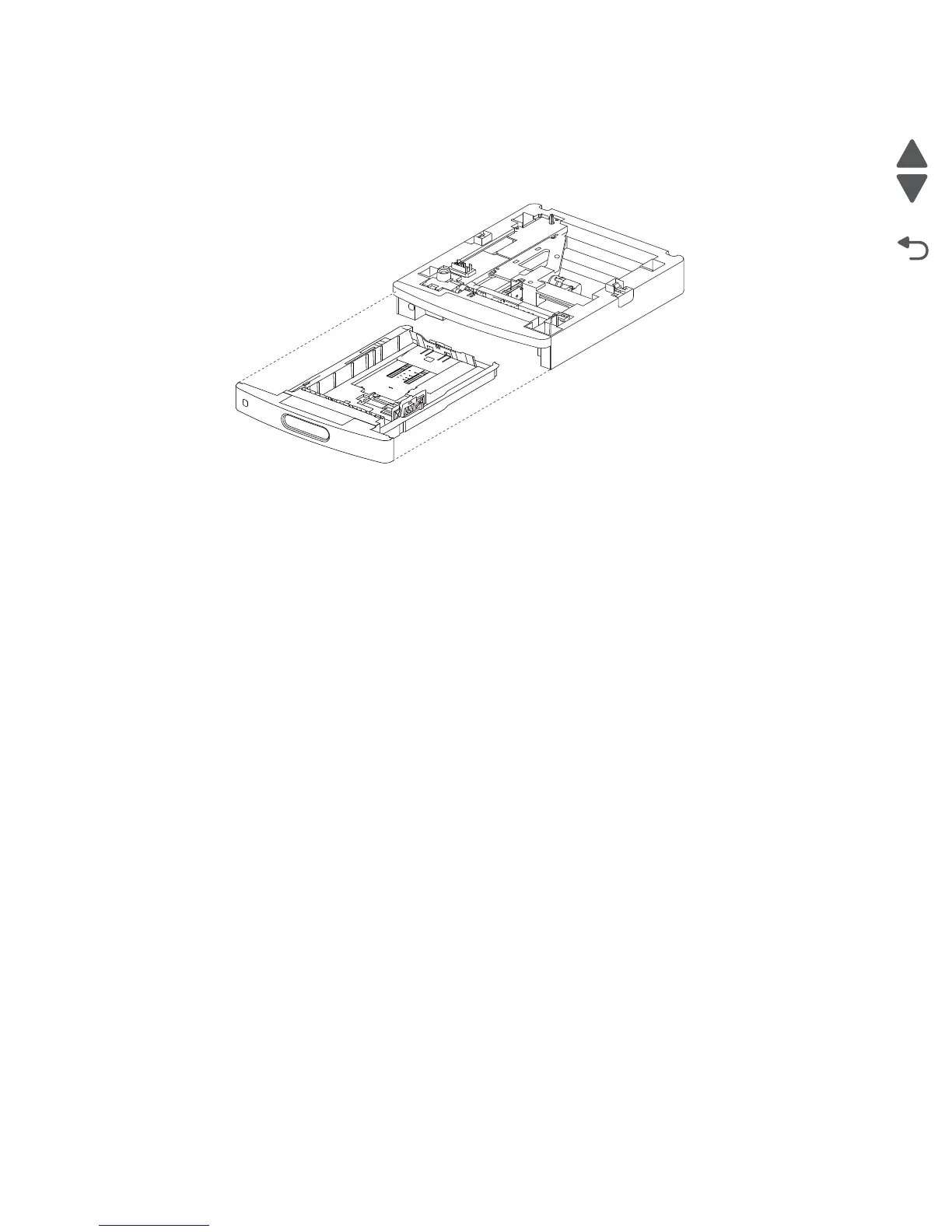

Remove the 250-sheet media tray assembly from the 250-sheet option drawer assembly.
250-sheet pick arm bracket assembly removal
Note: Carefully remove the base machine from the input option tray assembly before proceeding.
1. Disconnect the two 250-sheet pick arm bracket assembly cable connectors from the 250-sheet controller
card assembly.
2. Detach the pick arm spring from the drawer.
