Repair Information 4-141
4062-XXX
3. Remove the bracket from the frame and disconnect the sensor (media bin full) and media bin full actuator.
High capacity stacker controller card assembly (upper and lower) removal
1. Remove the high capacity stacker controller card cover panel. Go to “High capacity stacker controller
card cover panel removal” on page 4-138.
2. Disconnect the harnesses from the controller card.
Note: Pay careful attention to where the power input and output harnesses are attached.

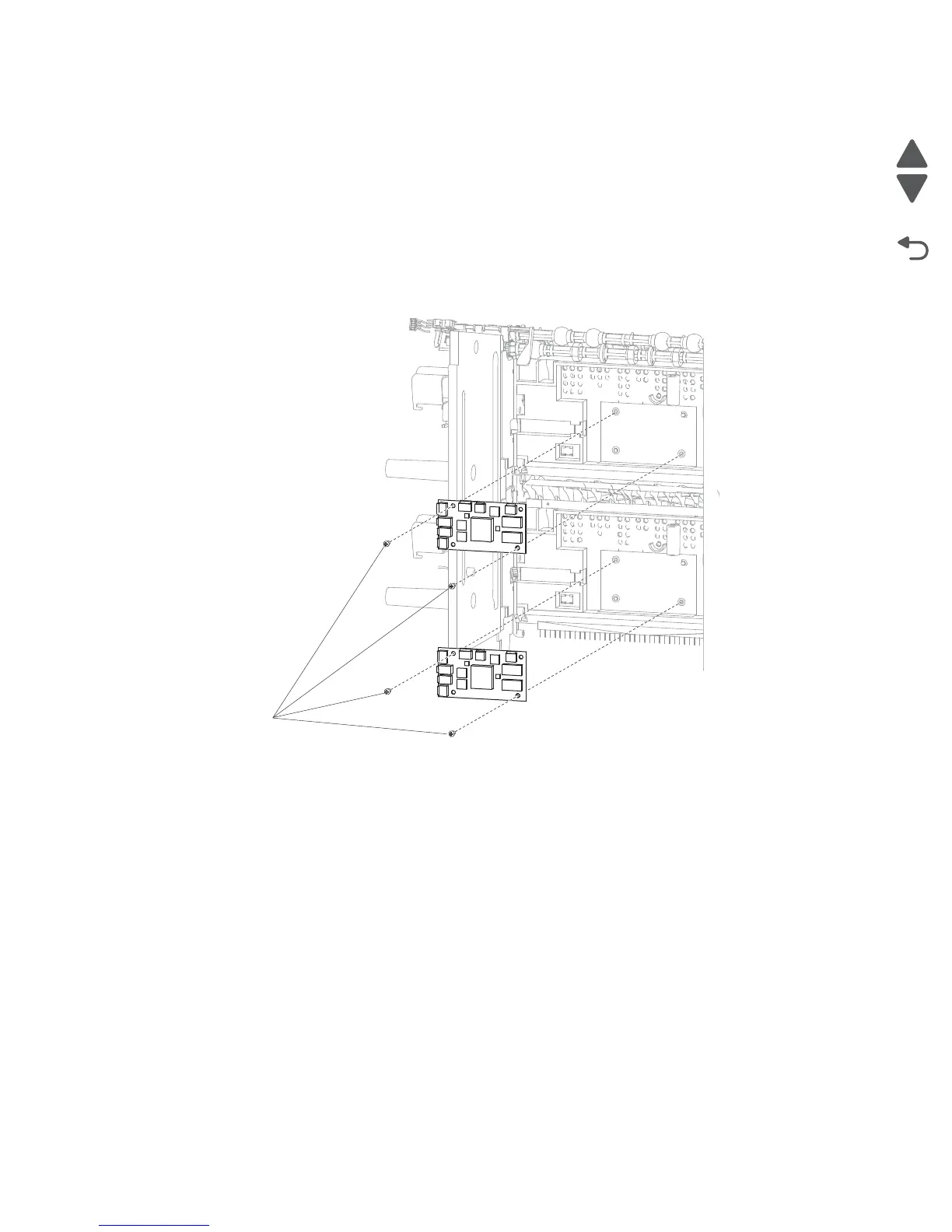

3. Remove the two screws (A) securing the high capacity stacker controller card assembly and remove the
card.
