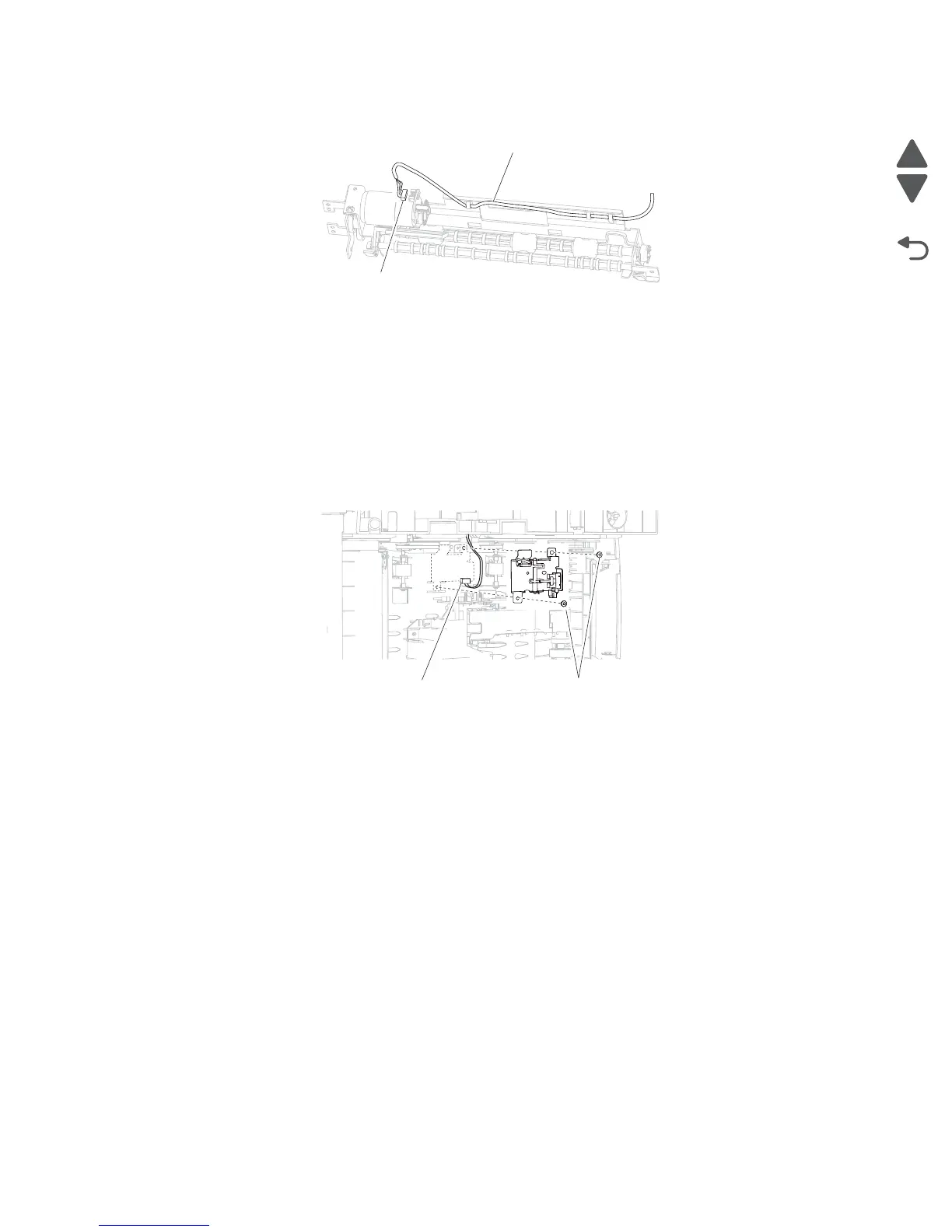

7. Remove the harness (E) from the duplex drive motor assembly.
Replacement Warning: When replacing the duplex drive motor assembly, ensure that all harnesses are
properly re-routed.
Replacement Note: Ensure the belt is replaced properly.
Duplex input sensor assembly removal (T652, T654, T656)
1. Remove the media tray.
2. Gently place the printer on its left or right side.
3. Disconnect the connection (A) from the duplex input sensor assembly.
4. Remove the two screws (B) securing the duplex input sensor assembly to the machine.
5. Remove the duplex input sensor assembly.
E
D
BA

Lexmark T650 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 45 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 200, 000 pages
Standard Output Capacity	250 sheets
Processor Speed	500 MHz
Connectivity	USB, Ethernet
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Memory	128 MB, expandable to 640 MB
Standard Input Capacity	650 sheets
