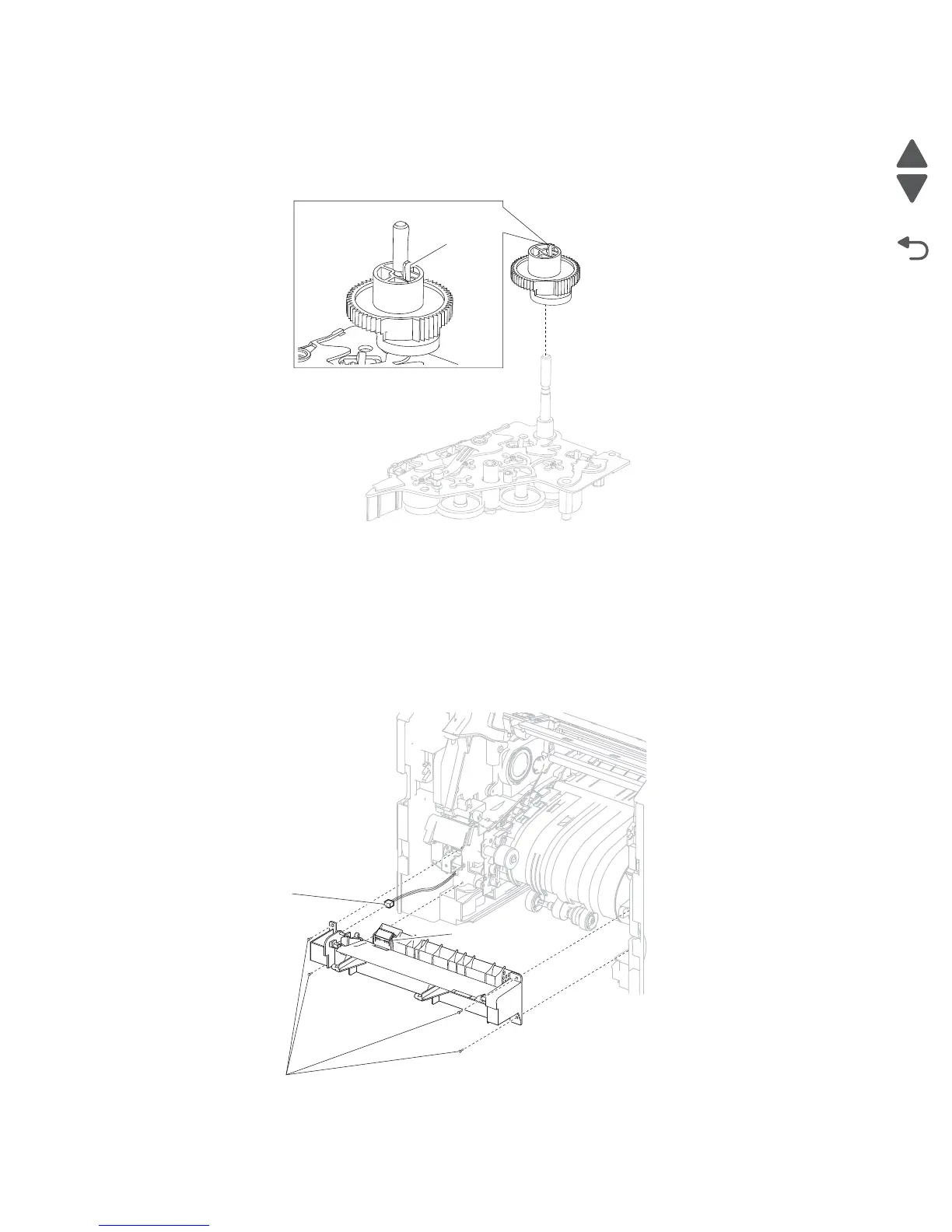

MPF cam gear removal
1. Remove the alignment assembly. Go to “Output cover assembly removal” on page 4-53.
2. Release the hook (A) securing the gear to the unit.
3. Remove the MPF cam gear.
MPF lift plate assembly removal
1. Remove the media turn guide. Go to “Media turn guide removal” on page 4-35.
2. Remove the four screws (A) securing the MPF lift plate assembly to the machine.
3. Gently detach the MPF lift plate assembly.
4. Disconnect the connector (B) from the MPF lower deflector assembly.
A
A
B
C
