Lexmark T650 Series Service Manual

4-140 Service Manual
4062-XXX
Go Back
Previous
Next

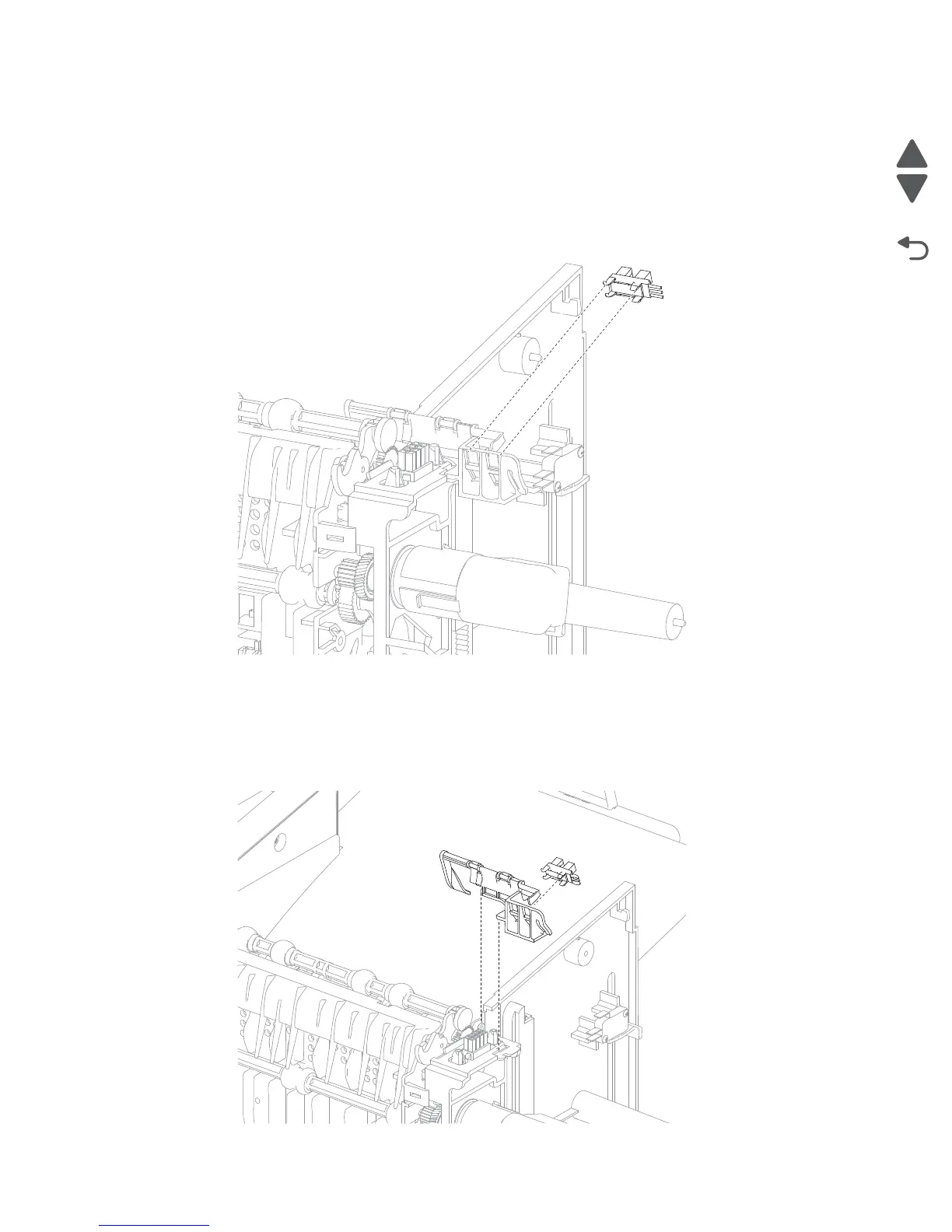

High capacity stacker sensor (media bin full) assembly removal
1. Remove the high capacity stacker controller card cover panel. Go to “High capacity stacker controller
card cover panel removal” on page 4-138.
2. Release the tabs securing the high capacity stacker sensor (media bin full) assembly to the left frame.
3. Disconnect the sensor (media bin full) harness from the upper controller card.
4. Remove the high capacity stacker sensor (media bin full) assembly.
High capacity stacker sensor (media bin full) bracket assembly removal
1. Remove the high capacity stacker left cover. Go to “High capacity stacker left cover removal” on
page 4-136.
2. Release the tab securing the bracket to the left frame.

Lexmark T650 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 45 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 200, 000 pages
Standard Output Capacity	250 sheets
Processor Speed	500 MHz
Connectivity	USB, Ethernet
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Memory	128 MB, expandable to 640 MB
Standard Input Capacity	650 sheets
