Lexmark T650 Series - Bin Mailbox Right Outer Cover Removal

4-86 Service Manual
4062-XXX
Go Back
Previous
Next

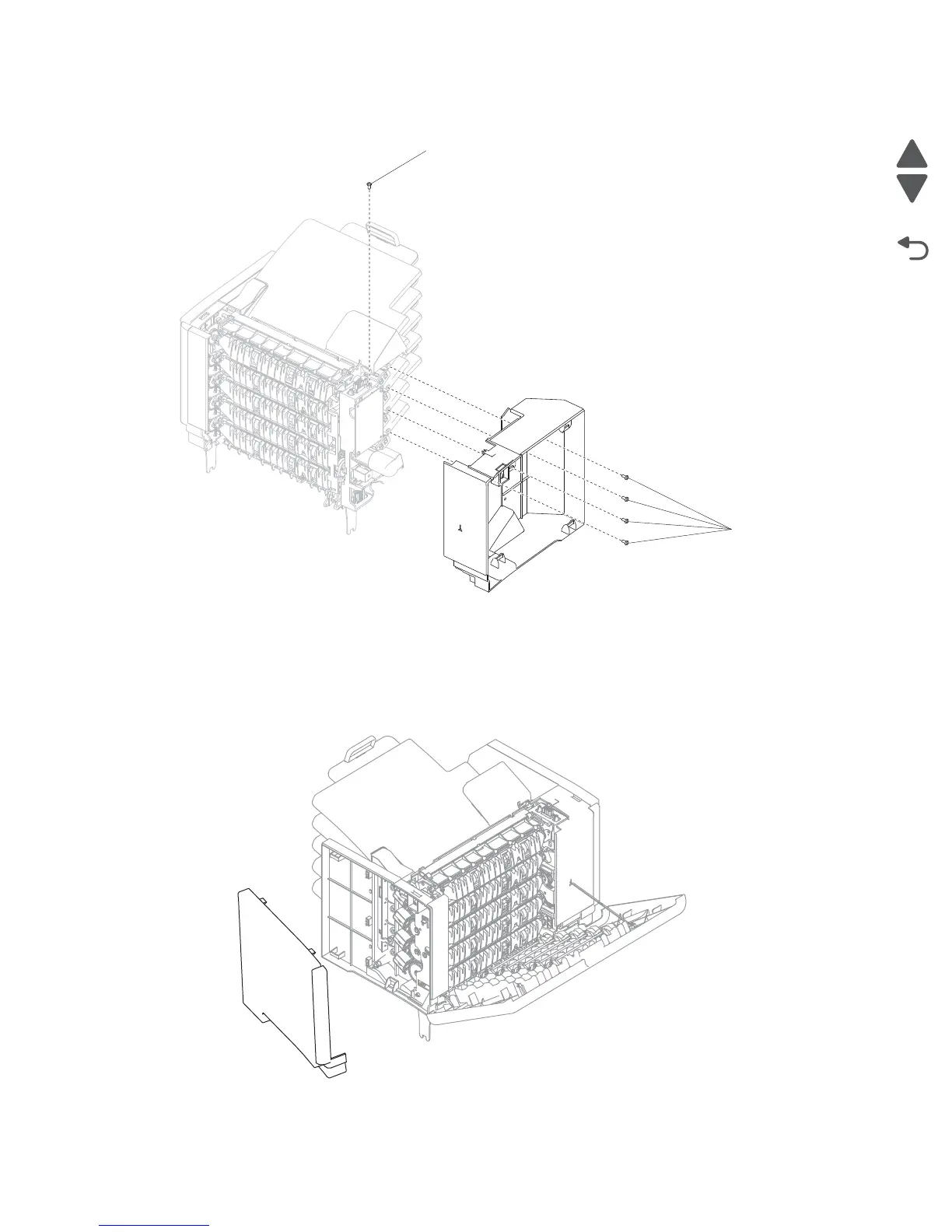

3. Remove the single screw (A) on the top and the four screws (B) on the inside of the left inner cover.
4. Remove the 5-bin mailbox left inner cover.
5-bin mailbox right outer cover removal
1. Open the rear door assembly.
2. Grasp the upper rear corner of the right outer cover and pull it off the 5-bin mailbox assembly.
A
B
