Lexmark T650 Series Service Manual

Repair Information 4-145
4062-XXX
Go Back
Previous
Next

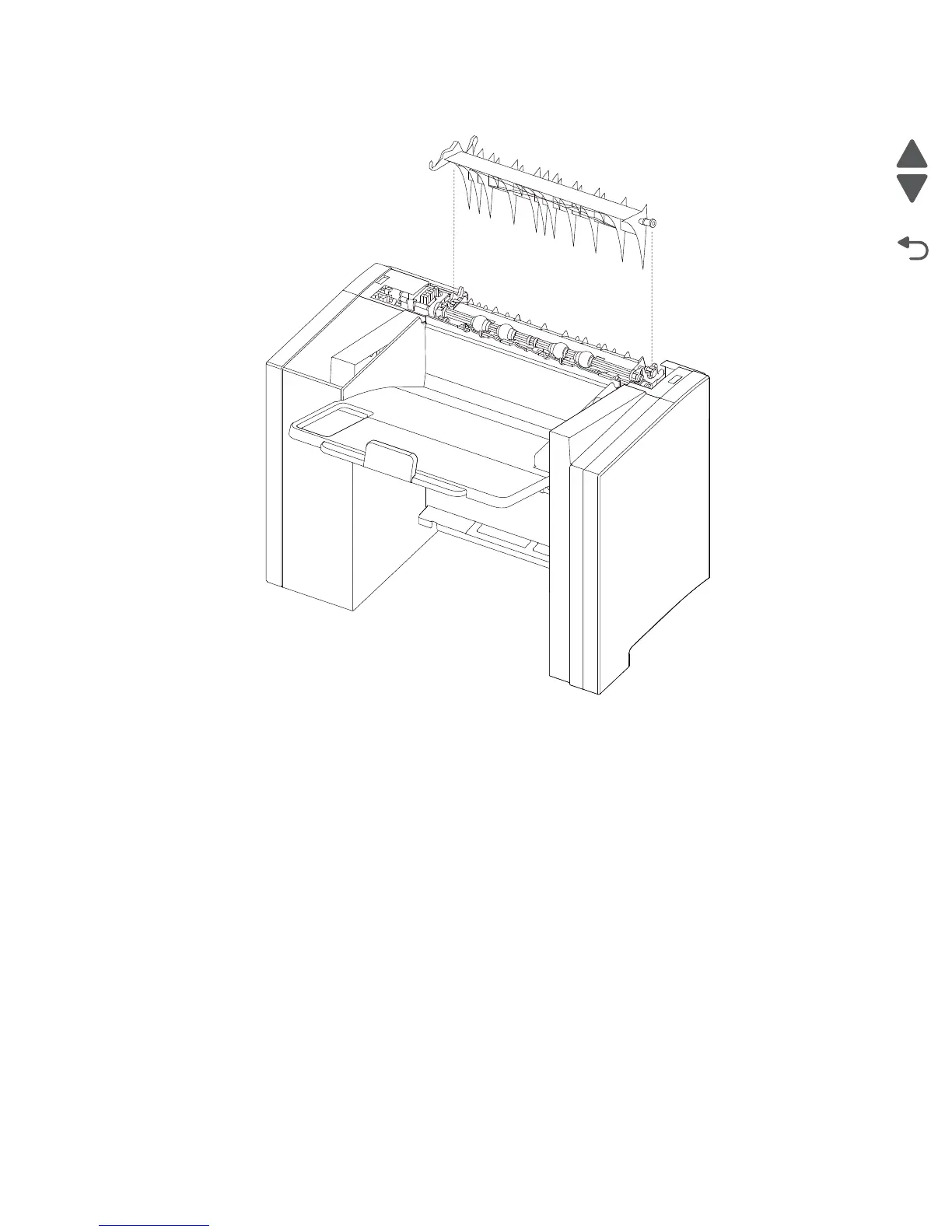

3. Unsnap each side of the deflector gate and remove.
High capacity stacker sensor (pass through) removal
1. Remove the rear door assembly. Go to “High capacity stacker rear door assembly removal” on
page 4-134.
2. Using needle-nose pliers or your finger, pull out and downward on the sensor (pass through) until the
sensor unsnaps.
3. Remove the high capacity controller card cover panel. Go to “High capacity stacker controller card
cover panel removal” on page 4-138.

Lexmark T650 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 45 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 200, 000 pages
Standard Output Capacity	250 sheets
Processor Speed	500 MHz
Connectivity	USB, Ethernet
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Memory	128 MB, expandable to 640 MB
Standard Input Capacity	650 sheets
